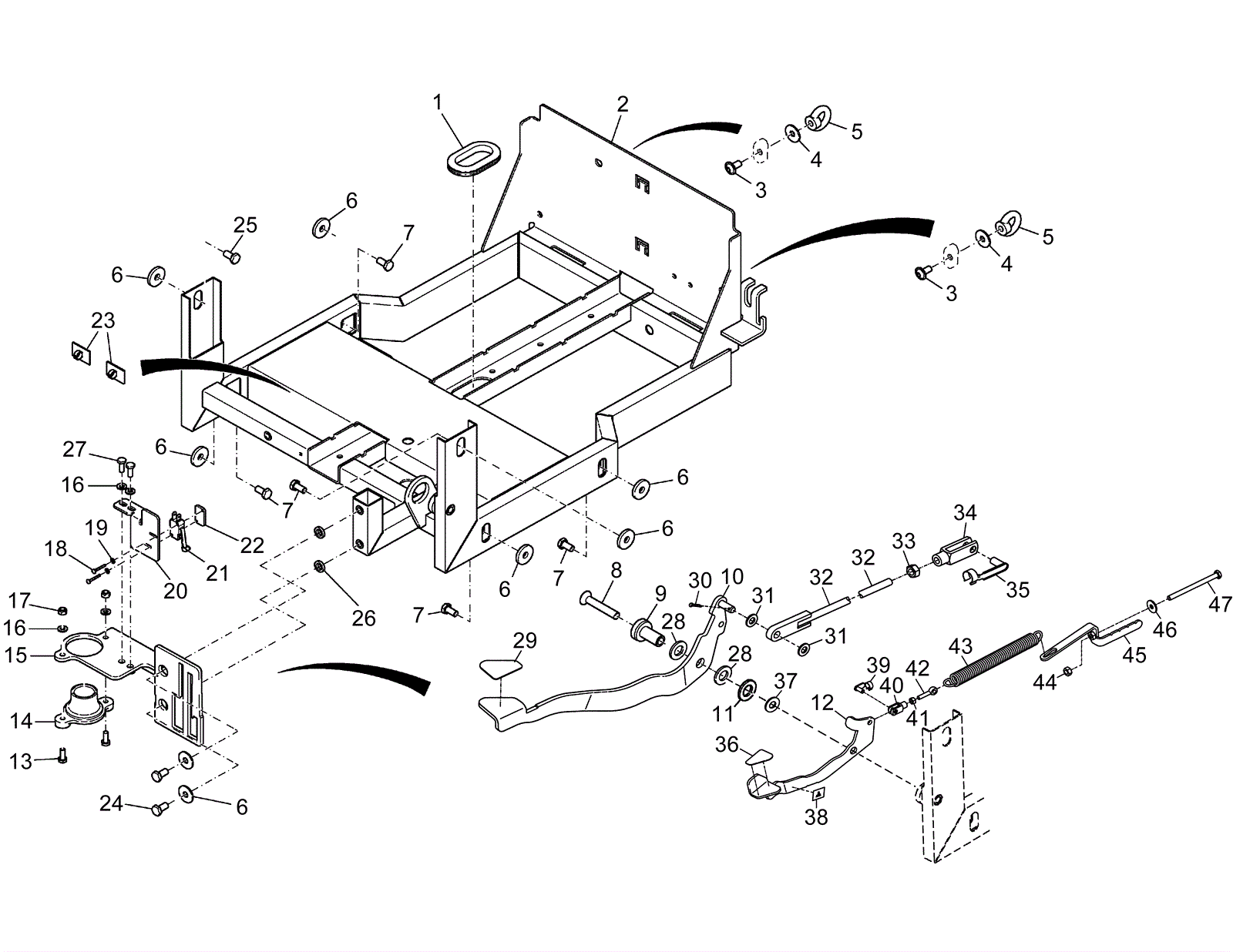

E30 Upper Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8967 Grommet $11.08 1 usually ships 1-5 days
2 274-8943 CHASSIS $239.47 1 usually ships 1-5 days
3 274-1312 LENS FLANGE SCREW $1.08 2 usually ships 1-5 days
4 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
5 174-9625 Nut M8-1.25 eye zinc $4.44 2 usually ships 1-5 days
6 174-9630 Washer M9 conical spring with tooth $7.97 10 usually ships 1-5 days
7 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 8 ships same day
8 174-9641 Screw M10-1.5 x 60mm flat head $1.91 1 usually ships 12-16 days
9 174-9658 Pedal pivot bushing $14.81 1 usually ships 12-16 days
10 174-8887 Lifting pedal $27.99 1 usually ships 12-16 days
11 174-9621 Washer M17 flat $4.15 1 usually ships 12-16 days
12 274-4906 PEDAL $56.37 1 usually ships 12-16 days
13 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
14 174-8292 Cable guide bushing $5.05 1 usually ships 1-5 days
15 174-8973 Pedal locking bracket $75.86 1 usually ships 12-16 days
16 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
17 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
18 999-1897 Screw M3-.5 x 20mm hex head $0.99 2 usually ships 1-5 days
19 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
20 174-6576 Switch mount bracket $3.42 1 usually ships 12-16 days
21 174-8931 Micro switch $18.41 1 usually ships 12-16 days
22 174-8930 Threaded switch mount plate $6.10 1 usually ships 1-5 days
23 174-8972 Cable clip $1.54 2 usually ships 1-5 days
24 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
25 999-0900 Screw M8-1.25 x 18mm hex head stainless steel $2.64 1 ships same day
26 174-4088 Spacer sleeve $5.70 2 usually ships 12-16 days
27 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
28 174-9619 Rubber washer $6.82 1 usually ships 12-16 days
29 174-9654 Anti-slip pedal decal $3.06 1 usually ships 12-16 days
30 174-8890 Cotter pin $5.84 1 usually ships 1-5 days
31 174-8888 Washer $5.13 2 usually ships 12-16 days
32 174-8889 Rod weldment $31.86 1 usually ships 1-5 days
33 999-1428 Nut M10-1.5 hex zinc finish $0.99 1 ships same day
34 174-9653 Clevis yoke $7.51 1 usually ships 1-5 days
35 174-9663 S-bolt $7.69 1 usually ships 1-5 days
36 174-9654 Anti-slip pedal decal $3.06 1 usually ships 12-16 days
37 174-9619 Rubber washer $6.82 2 usually ships 12-16 days
38 174-6567 Brush pressure decal $1.42 1 usually ships 12-16 days
39 174-9665 S-bolt $4.66 1 usually ships 12-16 days
40 174-9655 Clevis yoke $4.73 1 usually ships 12-16 days
41 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
42 174-9664 Eye bolt $27.72 1 usually ships 12-16 days
43 174-9662 Tension spring $31.50 1 usually ships 12-16 days
44 274-0433 NUT-HEX METRIC M10 X 1.5 STL ZD $4.38 1 usually ships 1-5 days
45 174-9656 Pressure adjustment bracket $19.25 1 usually ships 12-16 days
46 374-1584 WASHER $1.38 1 usually ships 1-5 days
47 999-0022 Bolt M10-1.5 x 30mm hex head full thread $0.99 1 ships same day
