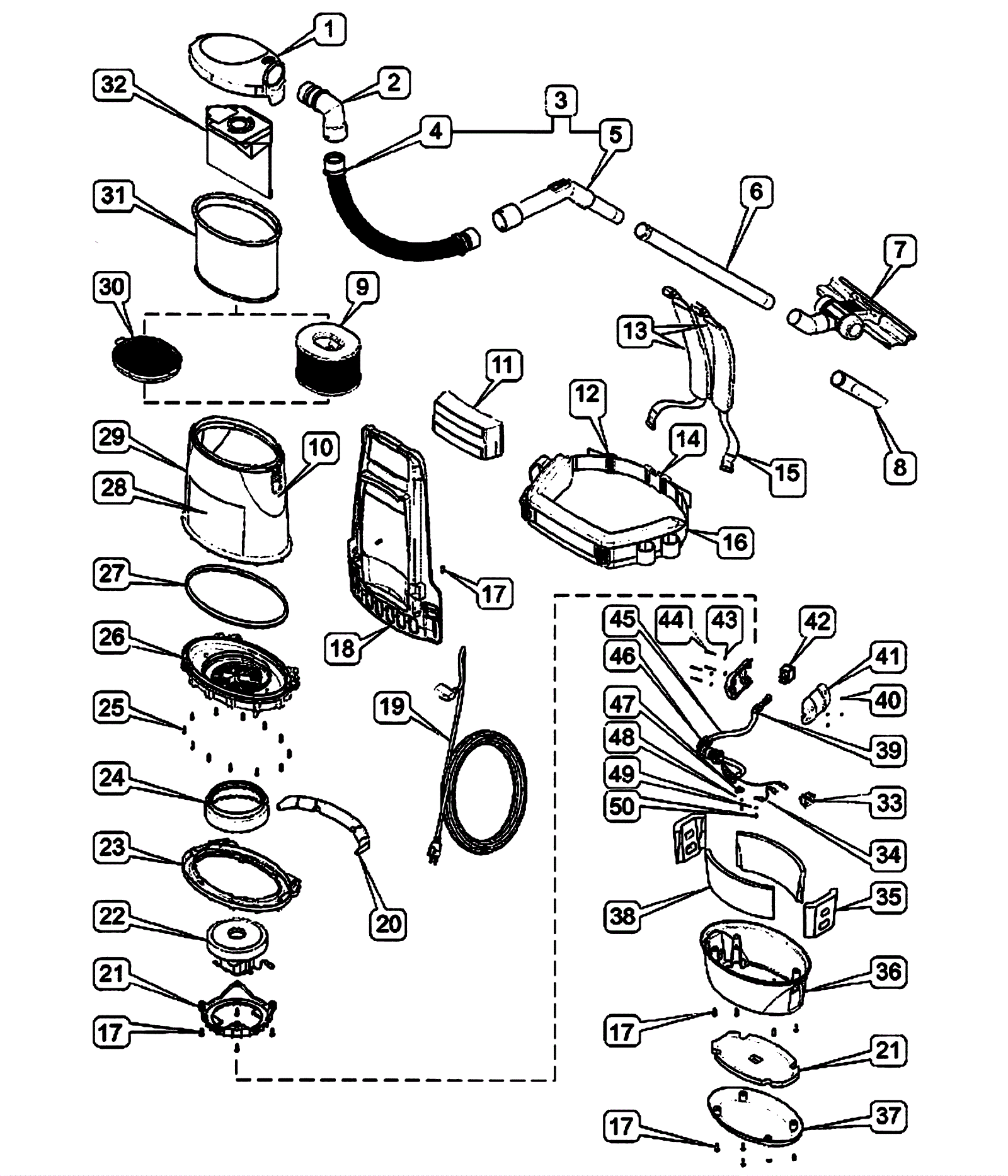

V10 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-3294 Lid assembly $51.33 1 usually ships 4-14 days
2 174-3295 Inlet elbow $10.81 1 usually ships 4-14 days
3 174-3296 Hose assembly $41.96 1 usually ships 1-5 days
4a 174-3297 Hose (black) $21.00 1 usually ships 4-14 days
4b 174-3298 Click ring (black) $4.47 1 usually ships 1-5 days
4c 174-3299 Hose fitting $6.07 1 usually ships 1-5 days
5 174-3300 Elbow (black) $16.54 1 usually ships 1-5 days
6 174-3301 Steel wand $15.59 1 usually ships 1-5 days
7 174-7056 EZI glide floor tool $28.76 1 usually ships 4-14 days
8 174-3302 Crevice tool $6.40 1 usually ships 1-5 days
9 174-3303 Filter and fastener assembly $219.59 1 usually ships 1-5 days
10 174-3304 Maintenance decal $0.90 1 usually ships 1-5 days
11 174-3305 Back pad $15.47 1 usually ships 1-5 days
12 174-3306 Buckle adjuster $2.57 2 usually ships 1-5 days
13 174-3307 Shoulder pads with strap set $35.00 1 usually ships 1-5 days
14 174-3308 Side buckle release $2.57 1 usually ships 4-14 days
15 N/A Not available Call for price 2 (Shoulder buckle) usually ships 3-26 days
16 174-3309 Waist pad $30.92 1 usually ships 1-5 days
17 N/A Not available Call for price 14 (Screw) usually ships 3-26 days
18 174-3310 Frame $74.78 1 usually ships 1-5 days
19 174-3311 Cord $125.48 1 usually ships 1-5 days
20 174-3312 Insulation end cap $6.65 1 usually ships 1-5 days
21 174-3313 Motor clamp $7.32 1 usually ships 1-5 days
22 174-3314 120V vacuum motor $170.75 1 usually ships 1-5 days
23 174-3315 Motor housing $9.77 1 usually ships 1-5 days
24 174-3316 Motor seal $7.68 1 usually ships 1-5 days
25 174-3317 Screw $0.95 12 usually ships 1-5 days
26 174-3318 Upper canister base $47.63 1 usually ships 1-5 days
27 174-3319 Canister seal $3.72 1 usually ships 1-5 days
28a 174-3320 Pro decal $0.90 1 usually ships 1-5 days
28b 174-3321 Pro plus decal Call for price 1 usually ships 1-5 days
29 174-3322 Upper canister housing assembly $80.72 1 usually ships 1-5 days
30 174-6556 VFD filter assembly $17.06 1 usually ships 4-14 days
31a 174-6554 Standard cloth filter bag assembly $25.58 1 usually ships 1-5 days
31b 174-6555 HEPA cloth filter bag assembly $24.52 1 usually ships 1-5 days
32a 174-3323 Paper bag filter (pkg of 5) $15.99 1 usually ships 4-14 days
32b 174-6540 HEPA paper bag (pkg of 5) $19.18 1 usually ships 1-5 days
33 174-3324 Inlet socket $12.38 1 usually ships 1-5 days
34 174-3325 Wire $6.18 1 usually ships 1-5 days
35 174-3326 Motor housing insulation $3.09 1 usually ships 1-5 days
36 174-3327 Lower canister housing $56.66 1 usually ships 1-5 days
37 174-3328 Motor housing cap $12.08 1 usually ships 1-5 days
38 174-3329 Side motor housing insulation $4.97 1 usually ships 1-5 days
39 174-3330 Grommet $4.97 1 usually ships 1-5 days
40 174-3331 Nut M3 hex $0.95 1 usually ships 1-5 days
41 174-3332 Remote switch housing $8.67 1 usually ships 1-5 days
42 174-3333 Rocker switch $17.41 1 usually ships 1-5 days
43 999-1521 Washer M3 flat stainless steel $0.99 4 ships same day
44 174-3334 Screw M3 x 25mm pan head zinc $1.05 4 usually ships 1-5 days
45 174-3335 Remote switch cord $18.78 1 usually ships 1-5 days
46 174-3336 Cord grip $14.64 1 usually ships 1-5 days
47 174-3337 P clamp $1.87 1 usually ships 1-5 days
48 174-3338 Washer $0.95 1 usually ships 1-5 days
49 174-3339 Washer M3 shakeproof $1.05 1 usually ships 1-5 days
50 174-3340 Screw M6 x 10mm mushroom head zinc $0.95 1 usually ships 1-5 days
