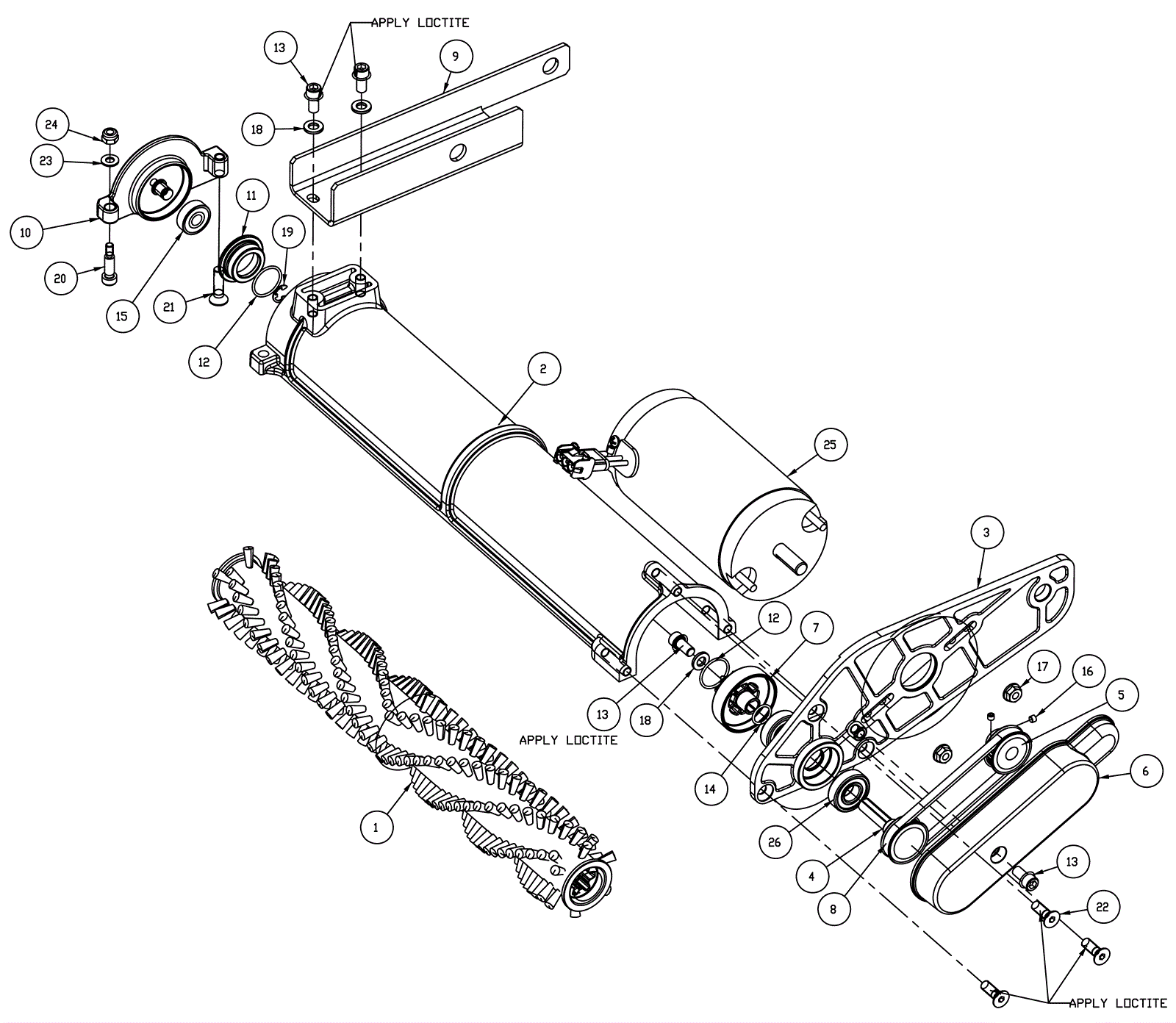

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-3396
|
Brush core assembly |
1 |
|
|
2 |
174-3397
|
Brush base |
1 |
|
|
3 |
174-3398
|
Motor bracket |
1 |
|
|
4 |
174-3399
|
Sprocket |
1 |
|
|
5 |
174-3400
|
Drive sprocket assembly |
1 |
|
|
6 |
174-3401
|
Belt cover |
1 |
|
|
7 |
174-3402
|
Drive pulley |
1 |
|
|
8 |
174-7097
|
Belt |
1 |
|
|
9 |
174-3428
|
Lift bracket |
1 |
|
|
10 |
174-3403
|
Brush side cover |
1 |
|
|
11 |
174-3404
|
Idle pulley |
1 |
|
|
13 |
174-3447
|
Screw 1/4-20 x 1/2 socket head SS |
4 |
|
|
14 |
174-3406
|
O-ring |
1 |
|
|
15 |
174-7099
|
Bearing |
1 |
|
|
16 |
174-5787
|
Screw 8-32 x 1/8 |
2 |
|
|
17 |
174-5158
|
Nut 10-32 flanged wizz |
2 |
|
|
18 |
174-8599
|
Washer flat |
3 |
|
|
19 |
174-2104
|
Retaining ring |
1 |
|
|
20 |
174-3448
|
Bolt 10-24 x 5/8 shoulder |
1 |
|
|
21 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
|
22 |
999-0457
|
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
3 |
|
|
23 |
174-0532
|
Washer 7/32 x 3/64 nylon |
1 |
|
|
24 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
1 |
|
|
25a |
174-8519
|
120V brush motor |
1 |
|
|
25b |
174-6024
|
Brush motor 240V |
1 |
|
|
26 |
174-7098
|
Bearing |
2 |
|
|
