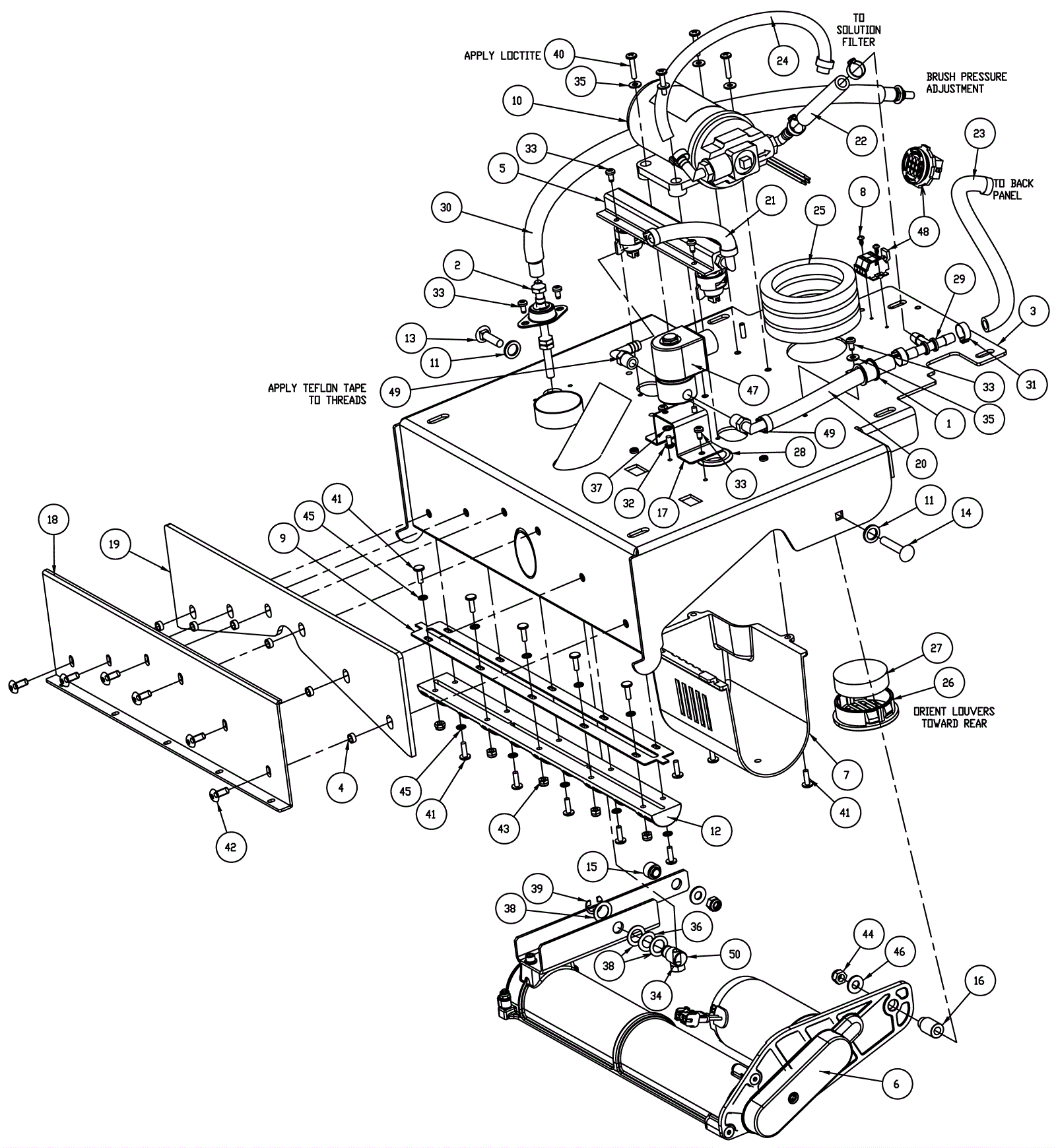

Base Assembly

#PartDescription ReqNotesAvailability
1 174-1531 Clamp 1
2 174-3422 Flanged bearing assembly 1
3 174-3423 Mainframe weldment 1
4 174-3381 Spacer 6
5a 174-3440 Spray bar assembly 1
5b 174-3441 Spray bar assembly 1
6 174-3382 Single brush assembly 1
7 174-3383 Brush motor guard 1
8 999-1602 Screw #6 x 3/8 pan head stainless steel 2
9 174-3384 Vacuum shoe gasket 1
10a 174-3385 115V 50PSI pump assembly 1
10b 174-3442 115V 100PSI pump assembly 1
11 999-0114 Washer 1/2 SAE flat 2
12 174-3386 Vacuum shoe 1
13 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel 1
14 999-1493 Bolt 5/16-18 x 1 3/4 round head carriage stainless steel 1
15 174-3424 Bushing 1
16 174-3443 Bushing 1
17 174-3425 Solenoid bracket 1
18 174-3387 Front squeegee plate 1
19 174-3388 Front plate gasket neoprene 1
20 174-3389 Hose 1
21 174-3390 Spray bar hose 1
22 174-3426 Hose 1
23 174-3391 Hose 1
24 174-3392 Hose 1
25 174-3444 Felt 3
26 174-3445 Louvered plugs 1
27 174-3446 Screen float filter 1
28 174-3393 Grommet 1
29 174-3394 Tee barb 1
30 174-3025 Flexible cable assembly 1
31 997-2001 Hose clamp 10
32 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated 2
34 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
35 999-0006 Washer 3/16 flat zinc plated 5
36 174-5159 Washer 33/64 x 1/64 wave 1
37 999-0089 Washer #10 internal star lock zinc plated 2
38 999-0855 Washer 9/16 SAE flat 3
39 174-0178 1/2 inch external retaining ring 1
40 174-3187 Screw 10-24 x 1 stainless steel 4
41 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel 13
42a 174-6559 Screw 1/4-20 x 5/8 truss head torx stainless steel (OBSOLETE 6 (replaced by 42b and 42c)
42b 174-5227 Washer 1/4 steel plated 6
42c 999-0657 Bolt 1/2-13 x 2 18-8 hex head stainless steel 6
43 999-0442 Nut 10-24 nylon insert lock stainless steel 5
44 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
45 999-0089 Washer #10 internal star lock zinc plated 10
46 174-8251 Washer flat stainless steel 2
47 174-3427 Solenoid valve assembly 1
48 174-3395 Wire harness 1
