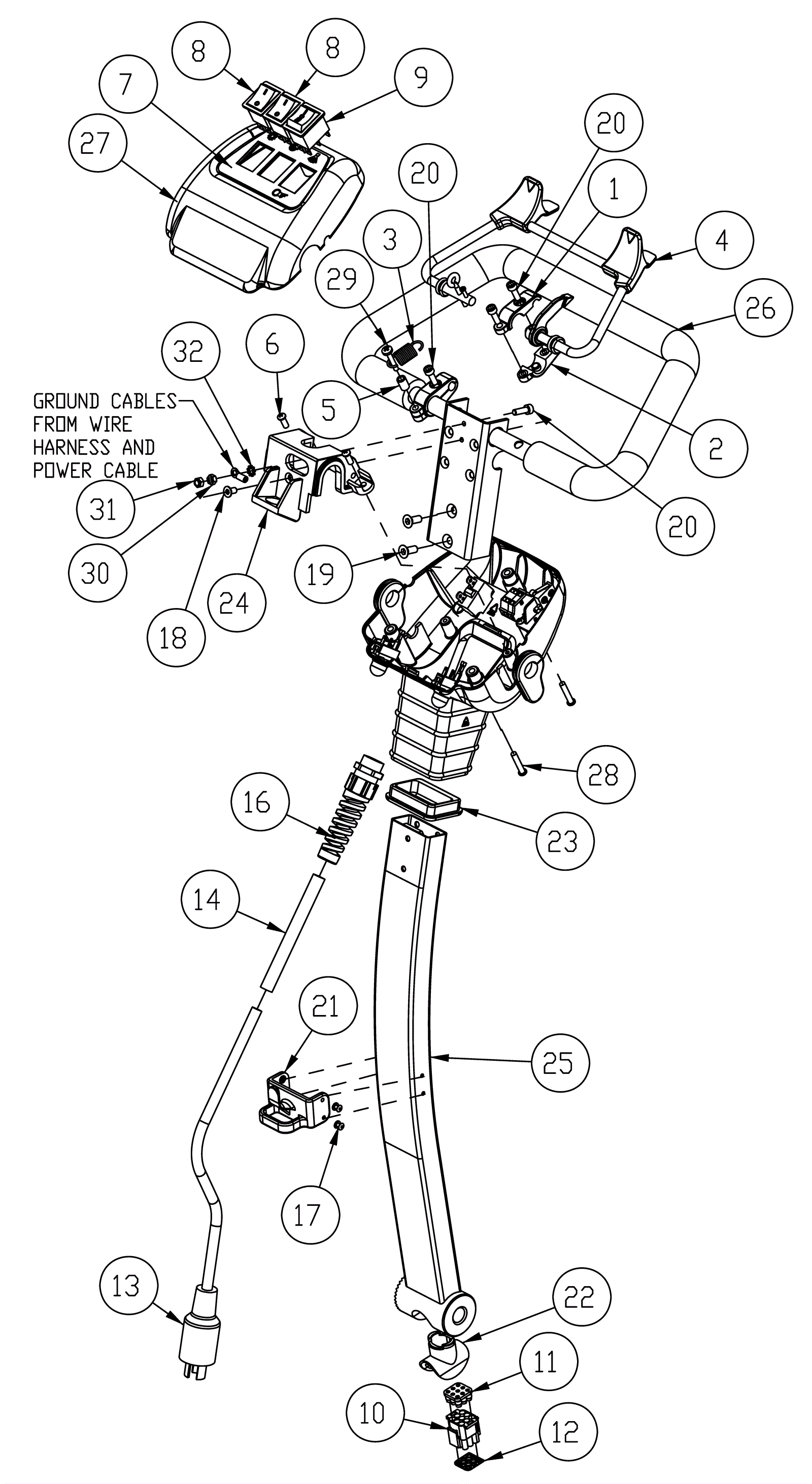

X17 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-3410 Top handle bracket $3.60 2 usually ships 1-5 days
2 174-3411 Bottom handle bracket $5.37 2 usually ships 1-5 days
3 174-3436 Extension spring $2.56 1 usually ships 1-5 days
4a 174-3437 Momentary handle assembly $39.30 1 (after 08/2011) (after SN 11080188) usually ships 1-5 days
4b 174-3414 Momentary handle assembly $114.82 usually ships 1-5 days
5 174-8137 Spacer .19 x .37 x .47 $1.83 1 usually ships 12-16 days
6 174-6388 Screw #10-16 x 1/2 hi/lo $1.08 2 usually ships 12-16 days
7 174-3366 Dashboard decal $4.87 1 usually ships 1-5 days
8 174-3367 On/off switch $7.58 2 usually ships 12-16 days
9 174-0705 Vacuum switch $9.11 1 usually ships 12-16 days
10 174-3367 On/off switch $7.58 1 usually ships 12-16 days
11 174-0705 Vacuum switch $9.11 1 usually ships 12-16 days
12 174-3369 Wire harness $147.85 1 usually ships 1-5 days
13 174-3412 115V pigtail cord assembly $15.55 1 usually ships 12-16 days
14 174-3438 Vinyl tubing $2.30 1 usually ships 12-16 days
15 174-3369 Wire harness $147.85 1 usually ships 1-5 days
16 174-3370 Strain relief $3.91 1 usually ships 12-16 days
17 174-2051 Pop rivet $0.97 4 usually ships 12-16 days
18 999-1601 Screw M5 x 10 flat head stainless steel $0.99 1 ships same day
19 999-0773 Screw M6-1 x 16mm flat socket head stainless steel $0.99 2 ships same day
20 999-1301 Screw M5-.8 x 16mm socket head stainless steel $0.99 4 ships same day
21 174-3371 Cord retainer $3.37 1 usually ships 12-16 days
22 174-3372 Lower handle boot $2.28 1 usually ships 1-5 days
23 174-3373 Handle cover plug $3.43 1 usually ships 12-16 days
24 174-3413 Channel bracket $4.83 1 usually ships 12-16 days
25 174-3374 Handle arm weldment $163.05 1 usually ships 1-5 days
26 174-3375 Steering arm $75.99 1 usually ships 1-5 days
27 174-3439 Switch cover $20.86 1 usually ships 1-5 days
28 174-3431 Screw #10-16 x 1 hi/low $1.18 3 usually ships 1-5 days
29 999-1425 Screw M5-.8 x 25mm pan head stainless steel $1.01 1 ships same day
30 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
31 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
32 999-1594 Washer M5 external lock stainless steel $0.99 1 usually ships 1-5 days
