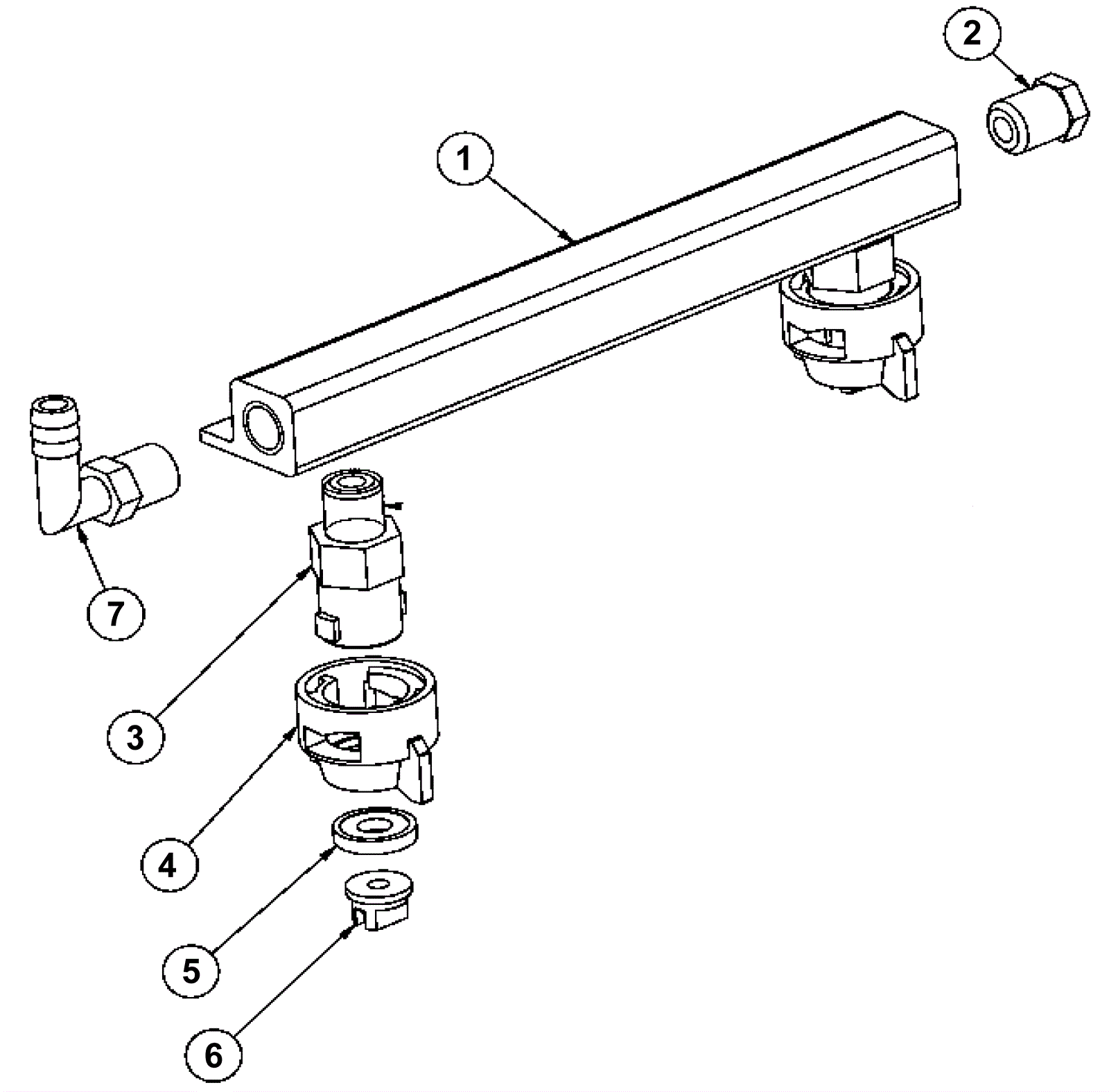

X17 Spray Bar Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-3364 Spray bar $28.06 1 usually ships 1-5 days
2 174-3041 Pipe plug $1.55 1 usually ships 12-16 days
3 174-3046 Body inlet connector $8.62 2 usually ships 12-16 days
4 174-3047 Cap $9.31 2 usually ships 12-16 days
5 174-3088 Cap gasket $2.97 2 usually ships 12-16 days
6a 174-3365 Spray nozzle $7.12 2 usually ships 12-16 days
6b 174-3435 Spray nozzle $8.98 2 (optional) usually ships 1-5 days
7 164-0187 90 degree elbow barb $6.23 1 ships same day
