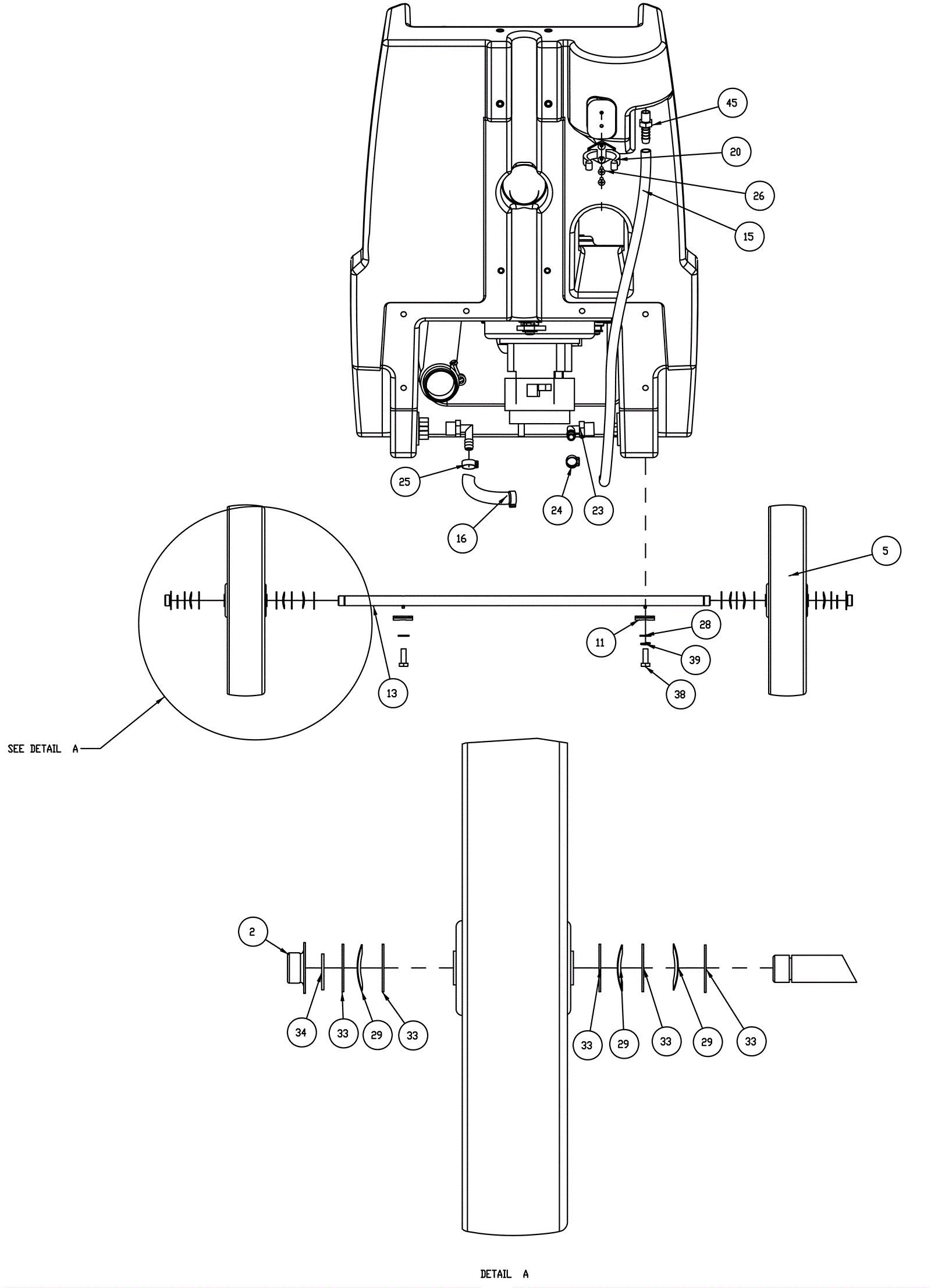

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
174-3149
|
Hub cap |
2 |
|
|
5 |
174-3342
|
Wheel |
2 |
|
|
11 |
174-3417
|
Axle bracket |
2 |
|
|
13 |
174-3433
|
Wheel axle assembly |
1 |
|
|
15 |
174-3418
|
Hose |
1 |
|
|
16 |
174-3350
|
Inline valve hose |
1 |
|
|
20 |
174-5968
|
1 1/2 inch hose clip |
1 |
|
|
23 |
174-0083
|
90 degree elbow barb |
2 |
|
|
24 |
174-3351
|
Clamp |
1 |
|
|
25 |
997-2001
|
Hose clamp |
2 |
|
|
26 |
174-2271
|
Screw 8-32 x 1/2 |
2 |
|
|
28 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
29 |
174-5159
|
Washer 33/64 x 1/64 wave |
6 |
|
|
33 |
999-0855
|
Washer 9/16 SAE flat |
10 |
|
|
34 |
174-0178
|
1/2 inch external retaining ring |
2 |
|
|
38 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
|
39 |
999-0632
|
Washer 1/4 split lock stainless steel |
4 |
|
|
45 |
174-0078
|
Barb |
1 |
|
|
