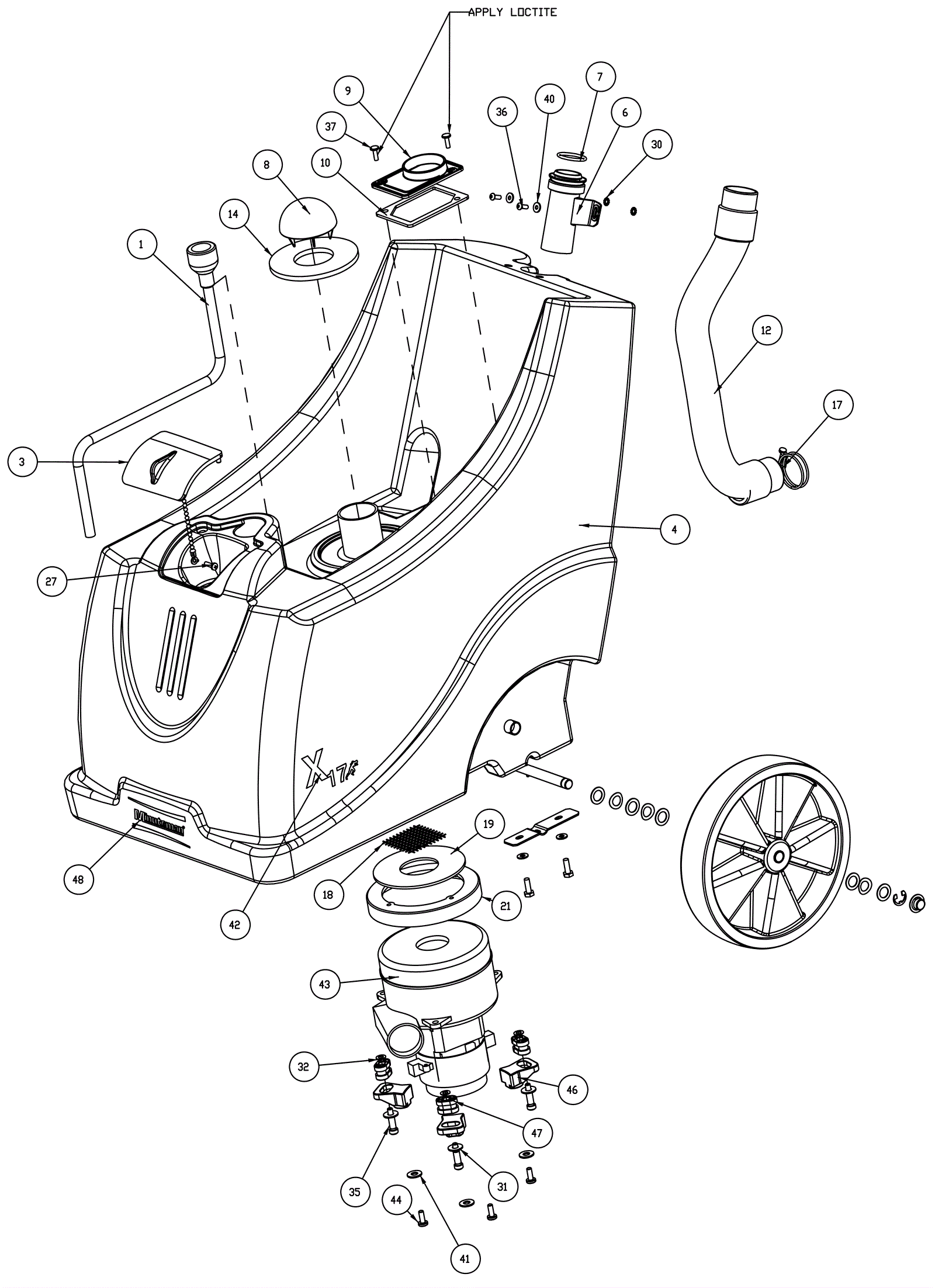

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-3341
|
Hose assembly |
1 |
|
|
3 |
174-8187
|
Solution tank lid assembly |
1 |
|
|
4 |
174-3415
|
Solution tank |
1 |
|
|
6 |
174-3343
|
Recovery inlet assembly |
1 |
|
|
7 |
174-3344
|
O-ring |
1 |
|
|
8 |
174-3345
|
Air inlet filter |
1 |
|
|
9 |
174-3416
|
Conduit hose |
1 |
|
|
10 |
174-3346
|
Gasket |
1 |
|
|
12 |
174-3347
|
Recovery hose |
1 |
|
|
14 |
174-3349
|
Gasket |
1 |
|
|
17 |
997-2000
|
Hose clamp |
1 |
|
|
18 |
174-0065
|
Filter screen |
1 |
|
|
19 |
174-0005
|
Gasket |
1 |
|
|
21a |
164-0881
|
Vacuum motor gasket |
1 |
|
|
21b |
991-3029
|
Vacuum motor gasket |
1 |
(NON-OEM) |
|
22 |
174-6185
|
Cable tie large |
1 |
|
|
27 |
174-8192
|
Screw 10 x 3/4 stainless steel |
1 |
|
|
30 |
999-0311
|
Washer #10 external star lock zinc plated |
2 |
|
|
31 |
999-0024
|
Washer 5/16 flat stainless steel |
3 |
|
|
32 |
174-2129
|
Washer .50 x .30 flat |
3 |
|
|
35 |
174-5804
|
Bolt 5/16 x 3/4 shoulder |
3 |
|
|
36 |
999-1599
|
Screw #10-24 x 1/2 button head SS |
2 |
|
|
37 |
999-0615
|
Screw 10-24 x 5/8 truss head slotted stainless steel |
2 |
|
|
40 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
41 |
174-8251
|
Washer flat stainless steel |
3 |
|
|
42 |
174-3419
|
X17 decal |
2 |
|
|
43 |
174-8518
|
120V vacuum motor |
1 |
|
|
44 |
999-1600
|
Screw M6 x 16 pan head zinc |
3 |
|
|
46 |
174-3352
|
Clamp |
3 |
|
|
47 |
174-3353
|
Grommet |
3 |
|
|
48 |
174-8198
|
Minuteman decal |
1 |
|
|
