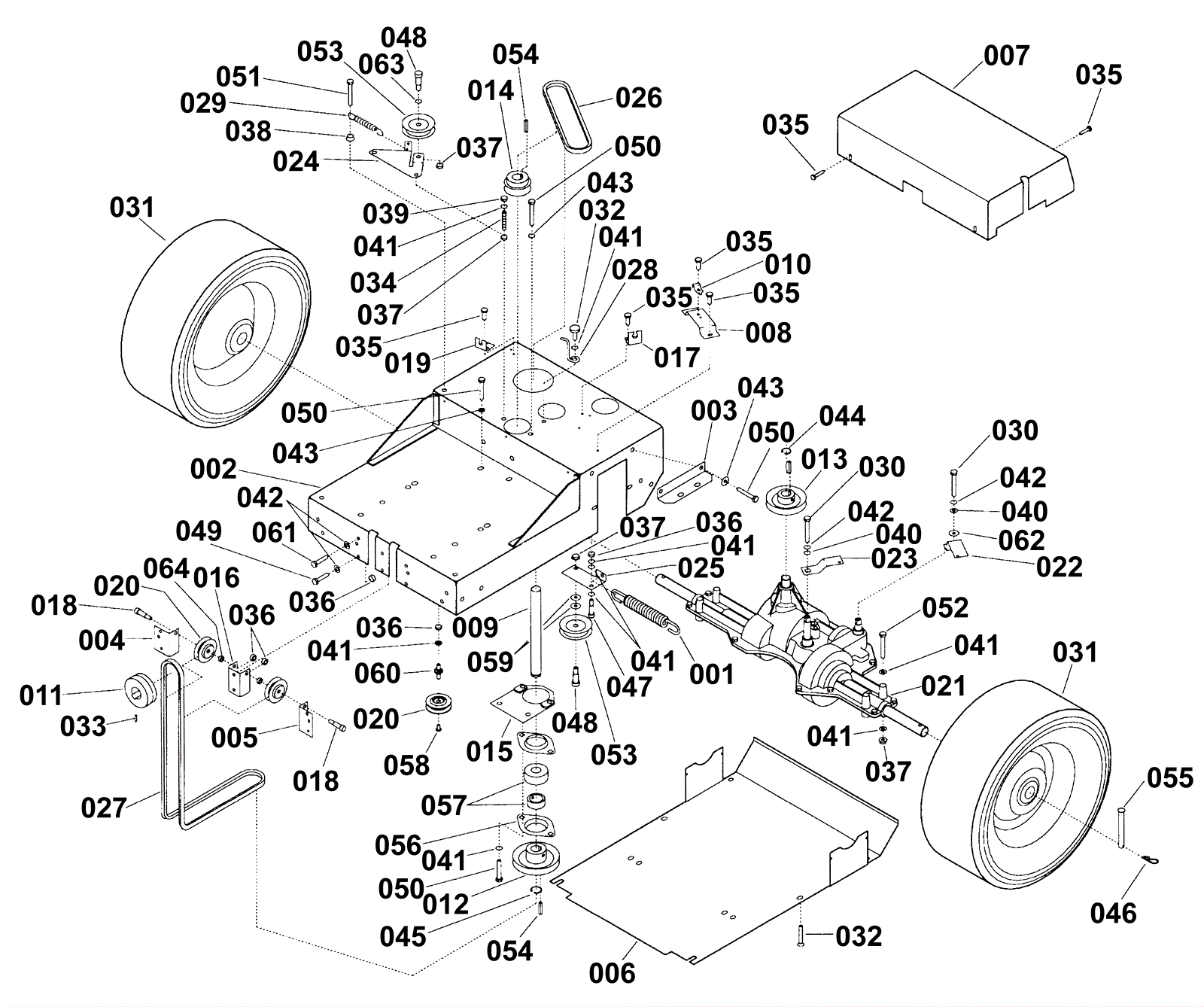

PRKRVAC-35 PV9308KSP Traction Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-1160 Extension spring $6.04 1 usually ships 1-5 days
002 174-2812 Main frame $584.53 1 usually ships 1-5 days
003 174-2813 Transmission mounting bracket Call for price 2 usually ships 1-5 days
004 174-2814 Left hand bracket pulley Call for price 1 usually ships 1-5 days
005 174-2815 Right hand bracket pulley Call for price 1 usually ships 1-5 days
006 174-2816 Cover base Call for price 1 usually ships 1-5 days
007 174-2817 Top clutch cover Call for price 1 usually ships 1-5 days
008 174-2818 Cable mounting bracket Call for price 1 usually ships 1-5 days
009 174-2819 Drive shaft 3/4 Call for price 1 usually ships 1-5 days
010 174-2820 Conduit clip Call for price 1 usually ships 1-5 days
011 174-1774 Engine pulley Call for price 1 usually ships 1-5 days
012 N/A Not available Call for price 1 (Pulley) usually ships 3-26 days
013 174-2822 Bore pulley 3 inch x 5/8 Call for price 1 usually ships 1-5 days
014 174-2823 Pulley 2 inch x 3/4 amp x 20 x 3/4 (OBSOLETE) Call for price 1 usually ships 1-5 days
015 174-2824 Bearing bracket Call for price 1 usually ships 1-5 days
016 174-2825 Center pulley bracket Call for price 1 usually ships 1-5 days
017 174-2826 Mounting bracket shifter Call for price 1 usually ships 1-5 days
018 174-2827 Screw shoulder Call for price 2 usually ships 1-5 days
019 174-1011 Clutch cable mounting bracket Call for price 1 usually ships 1-5 days
020 174-2828 Idler pulley assembly $24.75 3 usually ships 1-5 days
021 174-2829 Transmission with brake Call for price 1 usually ships 1-5 days
022 174-2830 Brake lever Call for price 1 usually ships 1-5 days
023 174-2831 Transmission shift lever Call for price 1 usually ships 1-5 days
024 174-2832 Idler pulley bracket clutch Call for price 1 usually ships 1-5 days
025 174-2833 Tensioner engine drive Call for price 1 usually ships 1-5 days
026 174-2834 Belt 3L200 $22.10 1 usually ships 3-9 days
027 174-2835 Belt 3L520 (OBSOLETE) $14.03 1 usually ships 4-14 days
028 174-2836 Belt popper Call for price 1 usually ships 1-5 days
029 174-2837 Clutch return spring $4.23 1 usually ships 1-5 days
030 174-2205 Screw 1/4 3/4 Call for price 2 usually ships 1-5 days
031 174-2838 Wheel assembly (OBSOLETE) Call for price 2 usually ships 4-14 days
032 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 9 ships same day
033 174-5782 Screw 1/4 20 x 1/2 $0.97 1 usually ships 4-14 days
034 174-8122 Screw 5/16-18 x 1.50 SK $0.95 1 usually ships 1-5 days
036 999-0190 Nut 1/4-20 hex plain finish $0.99 6 ships same day
037 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 7 ships same day
038 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 1 ships same day
039 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
040 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
041 999-0024 Washer 5/16 flat stainless steel $1.34 15 ships same day
042 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
043 999-0028 Washer 5/16 split lock plain finish $0.99 7 ships same day
044 174-8123 Retaining ring ext 0.62 $0.95 1 usually ships 1-5 days
045 174-0283 3/4 retaining ring $3.97 1 ships same day
046 174-0201 Cotter pin $1.20 2 usually ships 4-14 days
047 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder $0.86 1 ships same day
048 999-0492 Bolt 3/8 x 3/4 x 5/16 shoulder socket head $1.91 2 ships same day
049 174-1377 Bolt 1/4-20 x 1/2 hex head #5 $0.95 4 usually ships 1-5 days
050 174-2408 Bolt 5/16-18 x 1 #5 hex head $0.95 9 usually ships 1-5 days
051 999-0730 Bolt 5/16-18 x 2 1/2 hex head grade 5 zinc plated $0.99 1 ships same day
052 174-8033 Bolt 3/8-16 x 1 1/4 hex head $0.95 4 usually ships 1-5 days
053 174-2839 Pulley Call for price 2 usually ships 1-5 days
054 174-5185 Square keyway $0.90 2 usually ships 1-5 days
055 174-2840 Clevis pin Call for price 2 usually ships 1-5 days
056 174-2841 Bearing flange $0.96 4 usually ships 1-5 days
057 174-1291 Bearing with collar $63.30 2 usually ships 1-5 days
058 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 1 ships same day
059 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
060 174-2842 Pulley stud $8.72 1 usually ships 1-5 days
061 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
062 999-0566 Washer 1/2 flat nylon $0.99 1 ships same day
063 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
064 174-2843 Spacer $1.04 2 usually ships 1-5 days
