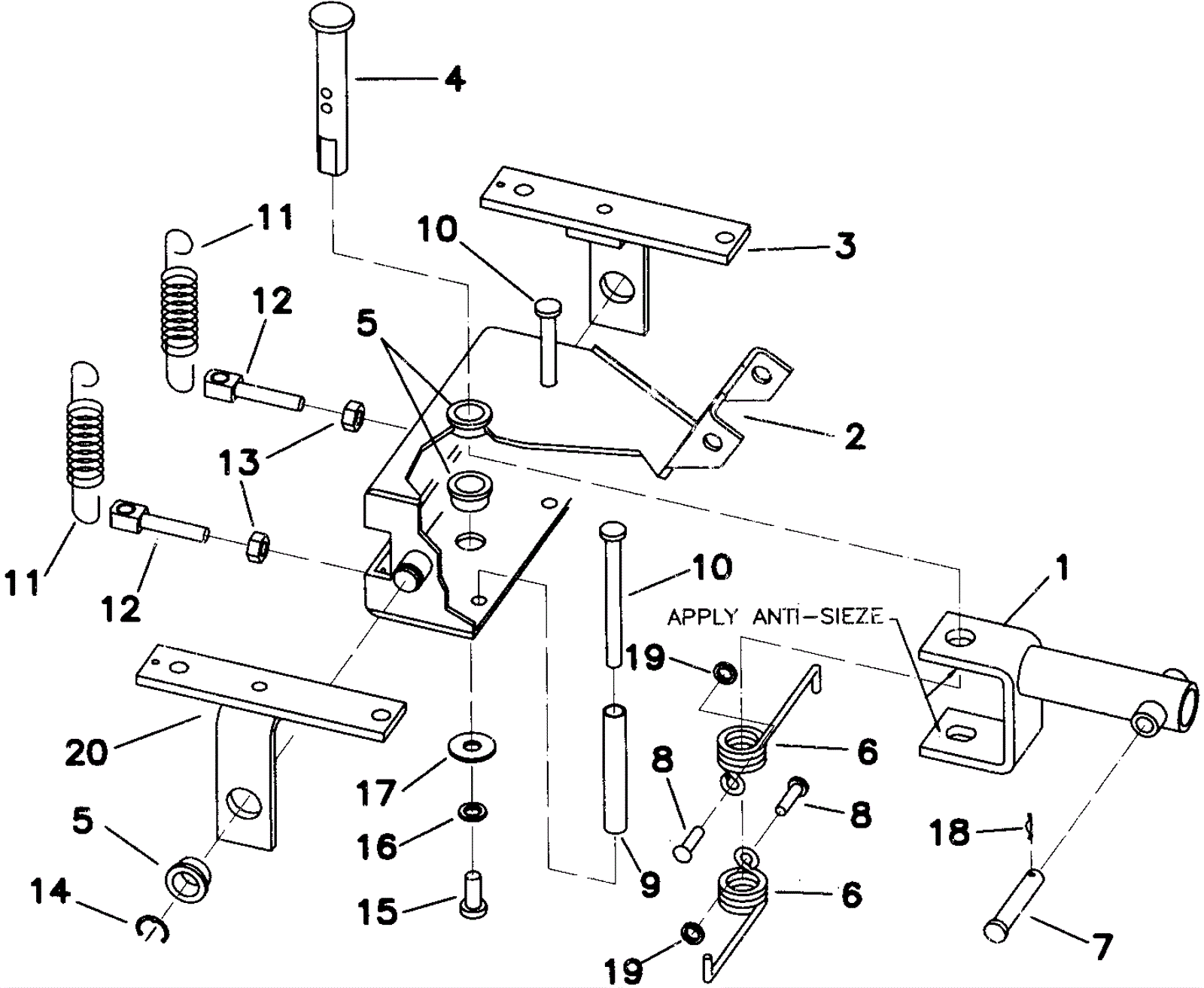

200 Yoke Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-1229 Yoke weldment $46.29 1 usually ships 1-5 days
2 174-1230 Spring housing weldment $139.06 1 usually ships 1-5 days
3a 174-1231 Pivot bracket weldment $16.23 2 (battery/electrical) usually ships 1-5 days
3b 274-4632 WELD-PIVOT BRKT RIGHT $24.07 1 (traction drive) usually ships 1-5 days
4 174-0279 Swivel pin $51.79 1 usually ships 4-14 days
5 174-0120 Bushing $2.63 4 usually ships 4-14 days
6 174-0280 Torsion spring stainless steel $6.35 2 ships same day
7 174-1186 Clevis pin 5/16 x 1 11/16 $4.39 1 usually ships 4-14 days
8a 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 (battery/electrical) ships same day
8b 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 2 (traction drive) ships same day
9 174-0281 Spacer tube $7.99 2 usually ships 1-5 days
10 999-0621 Screw 1/4-20 x 3 truss head slotted stainless steel $5.79 2 ships same day
11 174-0384 Return spring $4.88 2 usually ships 4-14 days
12 174-0282 Swing bolt $7.69 2 usually ships 4-14 days
13 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
14 174-0178 1/2 inch external retaining ring $0.99 2 usually ships 4-14 days
15 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 1 ships same day
16 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
17 174-0536 Washer 1/4 $0.97 1 usually ships 4-14 days
18 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
19 174-0532 Washer 7/32 x 3/64 nylon $0.97 2 (traction drive) usually ships 4-14 days
20 274-3782 WELD-PIVOT BRKT LEFT $22.15 1 (traction drive) usually ships 1-5 days
