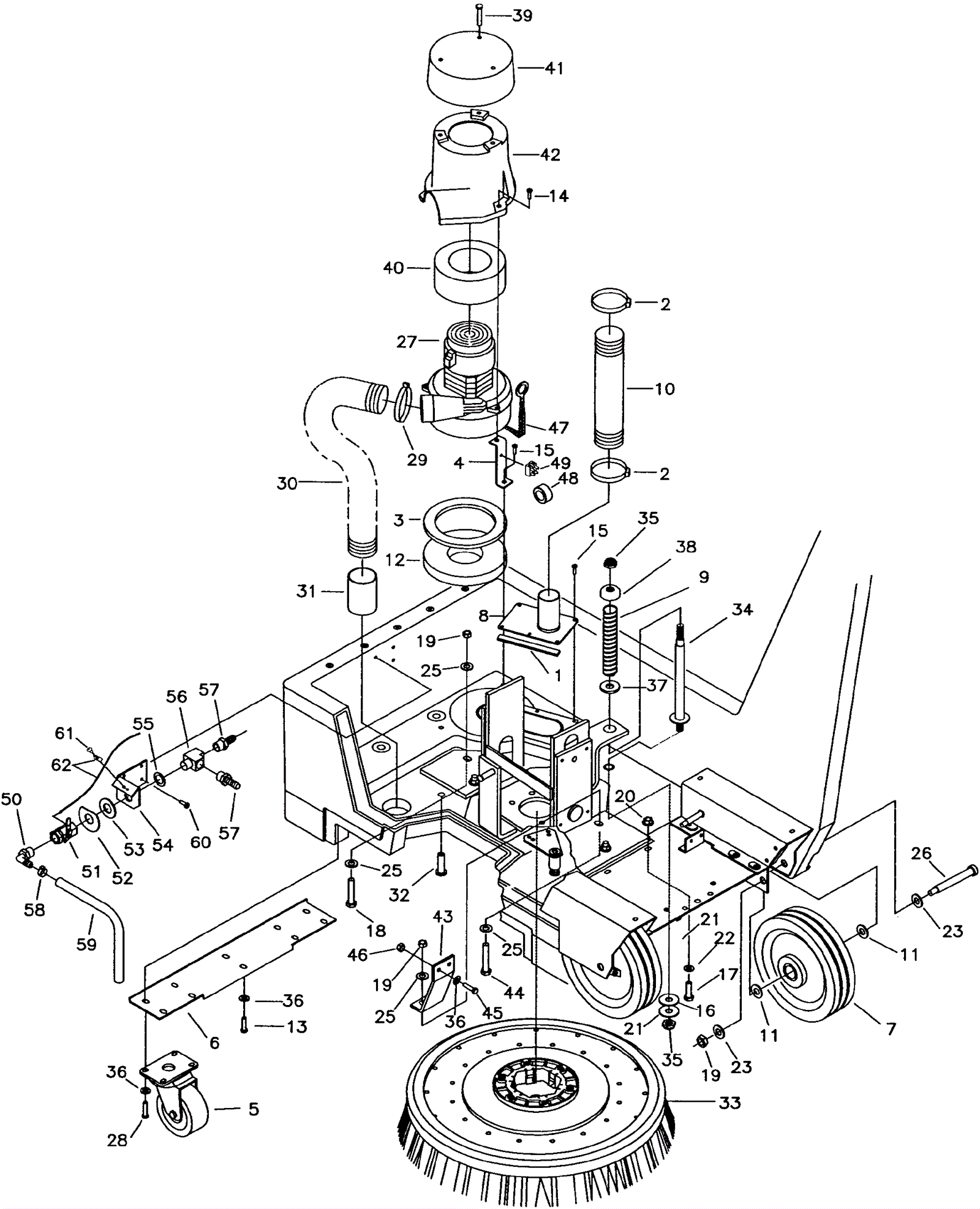

200 Vacuum Components Assembly - Battery/Electric

#PartDescriptionPriceReqNotesAvailability
1 174-0731 Rubber seal $2.04 1 usually ships 1-5 days
2a 997-2000 Hose clamp $2.37 2 (battery) ships same day
2b 174-0732 Hose clamp #12 $6.79 2 (electric) usually ships 4-14 days
3a 164-0881 Vacuum motor gasket $12.20 1 (OEM) usually ships 3-5 days
3b 991-3029 Vacuum motor gasket $1.89 1 (NON-OEM) ships same day
4 174-0733 Z bracket $2.94 3 usually ships 1-5 days
5 174-0702 Caster with wheel 3.5 diameter $38.02 2 usually ships 4-14 days
6 174-1224 Caster mounting bracket $29.14 1 usually ships 1-5 days
7 174-1225 Wheel 8 x 2 $70.63 2 usually ships 4-14 days
8 174-0735 Vacuum manifold assembly $19.01 1 usually ships 1-5 days
9 174-0744 Spring $10.12 1 usually ships 1-5 days
10 174-0053 Vacuum hose $29.30 1 ships same day
11 174-0737 S S bushing $8.24 2 (battery) usually ships 1-5 days
12 174-2282 Gasket $7.99 1 usually ships 4-14 days
13 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 2 ships same day
14 999-6667 Bolt 1/4-20 x 1 hex zinc $0.99 3 ships same day
15 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 9 ships same day
16 174-5070 Washer 3/4 lock internal $0.97 1 (battery) usually ships 1-5 days
17 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 4 ships same day
18 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 5 ships same day
19 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 8 ships same day
20 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 3 ships same day
21 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
22 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
23 999-0187 Washer 1/2 flat plain finish $0.99 6 ships same day
24 999-9114 Washer 3/4 flat stainless steel $1.58 2 ships same day
25 999-0120 Washer 3/8 SAE flat $0.99 6 ships same day
26 999-0846 Screw 1/2-13 x 3 1/2 socket head cap stainless steel $8.24 2 ships same day
27a 174-8514 24V 2 stage vacuum motor $215.67 1 (battery) usually ships 1-5 days
27b 174-0740 Vac motor 220 for 115v model $377.84 1 (electric) usually ships 4-14 days
27c 174-0741 Vac motor 240 for single stage export $204.65 1 (electric) usually ships 1-5 days
28 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 8 ships same day
29a 997-2003 Hose clamp $2.66 1 (battery) ships same day
29b 174-5175 Hose clamp $6.79 1 (electric) usually ships 1-5 days
30 174-1227 Flex rubber hose 2 x 15 $12.65 1 usually ships 4-14 days
31 174-0742 Hose sleeve $13.02 1 usually ships 1-5 days
32 174-0743 Nylon sleeve (OBSOLETE) Call for price 1 usually ships 1-5 days
33a 996-1013 Polypropelene scrubbing brush $501.26 1 usually ships 1-5 days
33b 996-1014 Nylon brush $303.79 1 usually ships 1-5 days
33c 996-0730 Pad driver $167.72 1 usually ships 4-14 days
34a 174-0745 Sleeve Call for price 1 (battery) usually ships 1-5 days
34b 174-0746 Threaded rod Call for price 1 (electric) usually ships 1-5 days
35 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
36 999-0016 Washer 1/4 flat plain finish $0.99 12 ships same day
37 999-0588 Washer 7/8 flat stainless steel $11.44 1 ships same day
38 174-0148 Washer cup $6.37 1 usually ships 1-5 days
39 174-5991 Screw #10 x 5/8 plated hi/low $0.99 3 usually ships 4-14 days
40 174-0171 Foam ring $2.57 1 usually ships 4-14 days
41 174-0159 Vacuum motor top cover $27.14 1 usually ships 4-14 days
42 174-0161 Vacuum motor bottom cover $89.35 1 usually ships 4-14 days
43 174-1228 Reinforcing bracket $12.10 1 usually ships 1-5 days
44 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
45 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
46 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
47 174-0747 Ground strap $11.09 1 (battery) usually ships 4-14 days
48 174-5096 Torroid $3.26 1 (battery) usually ships 1-5 days
49 174-0157 Terminal block $4.86 1 (battery) usually ships 1-5 days
50 174-0083 90 degree elbow barb $3.54 1 (battery) usually ships 4-14 days
51 174-0081 Manual solution valve $30.69 1 (battery) usually ships 4-14 days
52 999-9114 Washer 3/4 flat stainless steel $1.58 1 (battery) ships same day
53 174-0523 Washer 3/4 x 3/32 neoprene $11.97 1 (battery) usually ships 1-5 days
55 999-0588 Washer 7/8 flat stainless steel $11.44 1 (battery) ships same day
56 174-0095 3/8 brass tee $17.42 1 (battery) usually ships 1-5 days
57 174-0094 Hose barb $3.53 2 (battery) usually ships 4-14 days
58 997-2001 Hose clamp $2.42 1 (battery) ships same day
59 174-3017 Hose nylon braided $6.07 1 (battery) usually ships 1-5 days
60 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 3 (battery) ships same day
62 174-0082 Solution control cable with lever and knob $25.35 1 (battery) usually ships 4-14 days
N/S 174-0745 Sleeve Call for price 1 (electric) usually ships 1-5 days
N/S 999-0202 Nut 1/2-13 hex plain finish $0.99 1 (electric) ships same day
