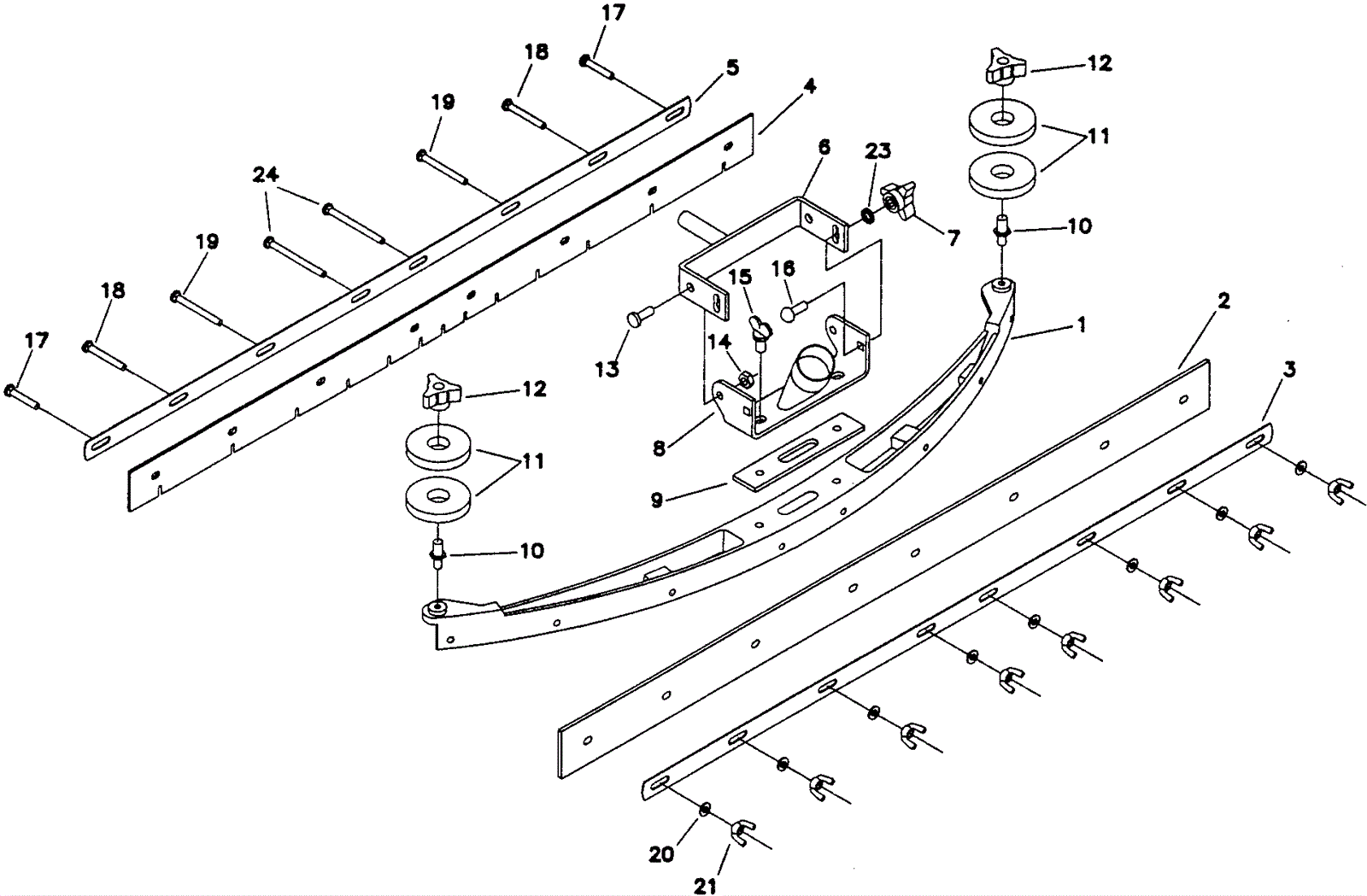

200 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (squeegee casting) usually ships 3-26 days
2 174-1152 Squeegee blade 20 inch rear $22.37 1 usually ships 4-14 days
3 174-1217 Squeegee strap rear $23.52 1 usually ships 4-14 days
4 174-1153 Squeegee blade 20 inch front $19.57 1 usually ships 4-14 days
5 174-1218 Squeegee strap front $26.88 1 usually ships 4-14 days
6 174-1219 Pitch control bracket $80.64 1 usually ships 4-14 days
7 174-1220 3 sided knob 5/16 nyloc $4.41 2 usually ships 4-14 days
8 174-1221 Tube bracket $64.56 1 usually ships 4-14 days
9 174-1222 Squeegee gasket $4.46 1 usually ships 4-14 days
10 174-1154 Threaded insert $5.41 2 usually ships 4-14 days
11 174-0786 Squeegee bumper wheel $10.12 4 ships same day
12 174-0782 Star knob $2.44 2 usually ships 4-14 days
13 999-0844 Screw 5/16-18 x 7/8 button head socket plain finish $0.99 2 ships same day
14 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
15 174-8436 Wing bolt 3/8-16 x .62 $2.29 2 usually ships 4-14 days
16 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 2 ships same day
17 999-0604 Screw 1/4-20 x 1 1/2 carriage head stainless steel $0.99 2 ships same day
18 174-5702 Bolt 1/4-20 x 2 carriage stainless steel $1.20 2 usually ships 4-14 days
19 999-0514 Screw 1/4-20 x 2 1/2 carriage head zinc $0.99 2 ships same day
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
21 999-0603 Nut 1/4-20 wing stainless steel $7.33 8 ships same day
22 174-1223 Squeegee reinforcing blade $10.16 1 usually ships 4-14 days
23 999-0318 Washer 3/8 external star lock zinc plated $0.99 2 ships same day
24 999-0607 Screw 1/4-20 x 3 carriage head stainless steel $3.30 2 ships same day
