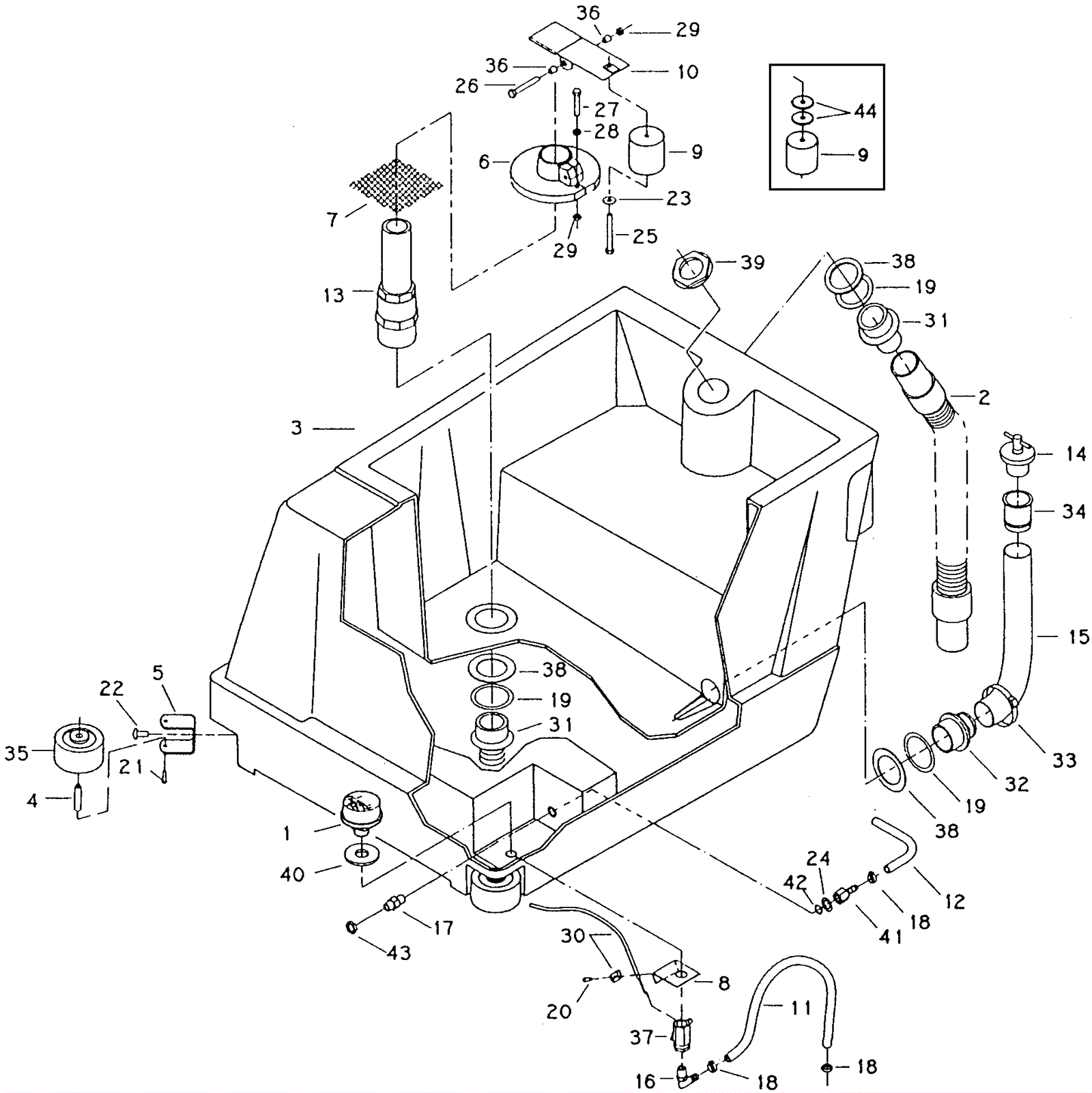

200 Solution and Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-0071 Solution strainer $27.36 1 usually ships 4-14 days
2 174-1211 Vacuum hose assembly $31.31 1 usually ships 4-14 days
3 174-0639 Tank assembly 200TD $721.46 1 usually ships 1-5 days
4 174-0070 Bumper wheel axle $13.54 2 usually ships 4-14 days
5 174-0068 Guide wheel bracket $49.43 2 usually ships 4-14 days
6 174-0721 Float housing $115.43 1 usually ships 4-14 days
7 174-0695 Filter screen $10.12 1 usually ships 4-14 days
8 174-1212 Solution valve cable mount $11.41 1 (electric) usually ships 1-5 days
9 174-0722 Float $5.83 1 usually ships 4-14 days
10 174-0723 Float valve weldment $80.41 1 usually ships 1-5 days
11a 174-3017 Hose nylon braided $6.07 1 (electric) usually ships 1-5 days
11b 174-0728 Solution hose $9.85 1 (battery) usually ships 4-14 days
12 174-1166 Nylon solution dump hose $15.19 1 (electric) usually ships 1-5 days
13 174-1213 Standpipe assembly $44.94 1 usually ships 1-5 days
14 174-2264 Drain plug $27.49 1 usually ships 4-14 days
15 174-0088 Drain hose assembly $30.87 1 usually ships 4-14 days
16a 174-0083 90 degree elbow barb $3.54 1 (electric) usually ships 4-14 days
16b 174-0075 90 Degree elbow barb $9.58 1 (battery/traction drive) usually ships 4-14 days
17 174-3059 Brass bulkhead fitting $12.34 1 (electric) usually ships 1-5 days
18 997-2001 Hose clamp $2.42 2 ships same day
19 174-0051 Washer stainless steel $0.95 3 ships same day
21 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
22 999-0616 Screw 3/8-16 x 5/8 socket head alloy plain finish $0.99 2 ships same day
23 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
24 999-0855 Washer 9/16 SAE flat $0.99 1 (battery/electric) ships same day
25 999-0610 Screw 1/4-20 x 2 1/2 pan head phillips stainless steel $0.99 1 ships same day
26 174-6005 Screw 1/4 - 20 x 2 1/4 $1.20 1 usually ships 1-5 days
27 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 1 (electric) ships same day
28 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 (electric) ships same day
29 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
30 174-0082 Solution control cable with lever and knob $25.35 1 (electric) usually ships 4-14 days
31 174-1215 Hose adapter $6.01 1 usually ships 1-5 days
32 174-0089 Hose adapter $11.80 1 (electric/traction drive) usually ships 4-14 days
33 997-2000 Hose clamp $2.37 1 ships same day
34 174-0729 Tube hose $18.10 1 usually ships 4-14 days
35 174-0069 Guide wheel $4.20 2 usually ships 4-14 days
36 174-3076 Bushing $6.30 2 usually ships 1-5 days
37 174-0081 Manual solution valve $30.69 1 (electric) usually ships 4-14 days
38 174-0048 Washer 1 13/16 x 1/8 neoprene $1.42 3 usually ships 4-14 days
39 174-0049 Nut 1 1/2 pipe thread $2.00 1 usually ships 4-14 days
40 174-0523 Washer 3/4 x 3/32 neoprene $11.97 1 (electric) usually ships 1-5 days
41a 174-0222 Hose barb $3.97 1 (electric) usually ships 4-14 days
41b 174-0074 3/8 brass hose barb $5.19 1 (battery/traction drive) usually ships 1-5 days
42 174-3082 O-ring $0.97 1 (battery/electric) usually ships 4-14 days
43 174-0575 Nut 1/4 NPT nylon $1.00 1 (electric) usually ships 4-14 days
44 999-0024 Washer 5/16 flat stainless steel $1.34 4 (traction drive) ships same day
N/S 174-0072 Brass adapter $5.88 1 (battery/traction drive) usually ships 4-14 days
N/S 174-0073 O-ring $1.10 1 (traction drive) usually ships 1-5 days
N/S 174-0522 Washer .69 flat stainless steel $0.88 1 (traction drive) usually ships 4-14 days
