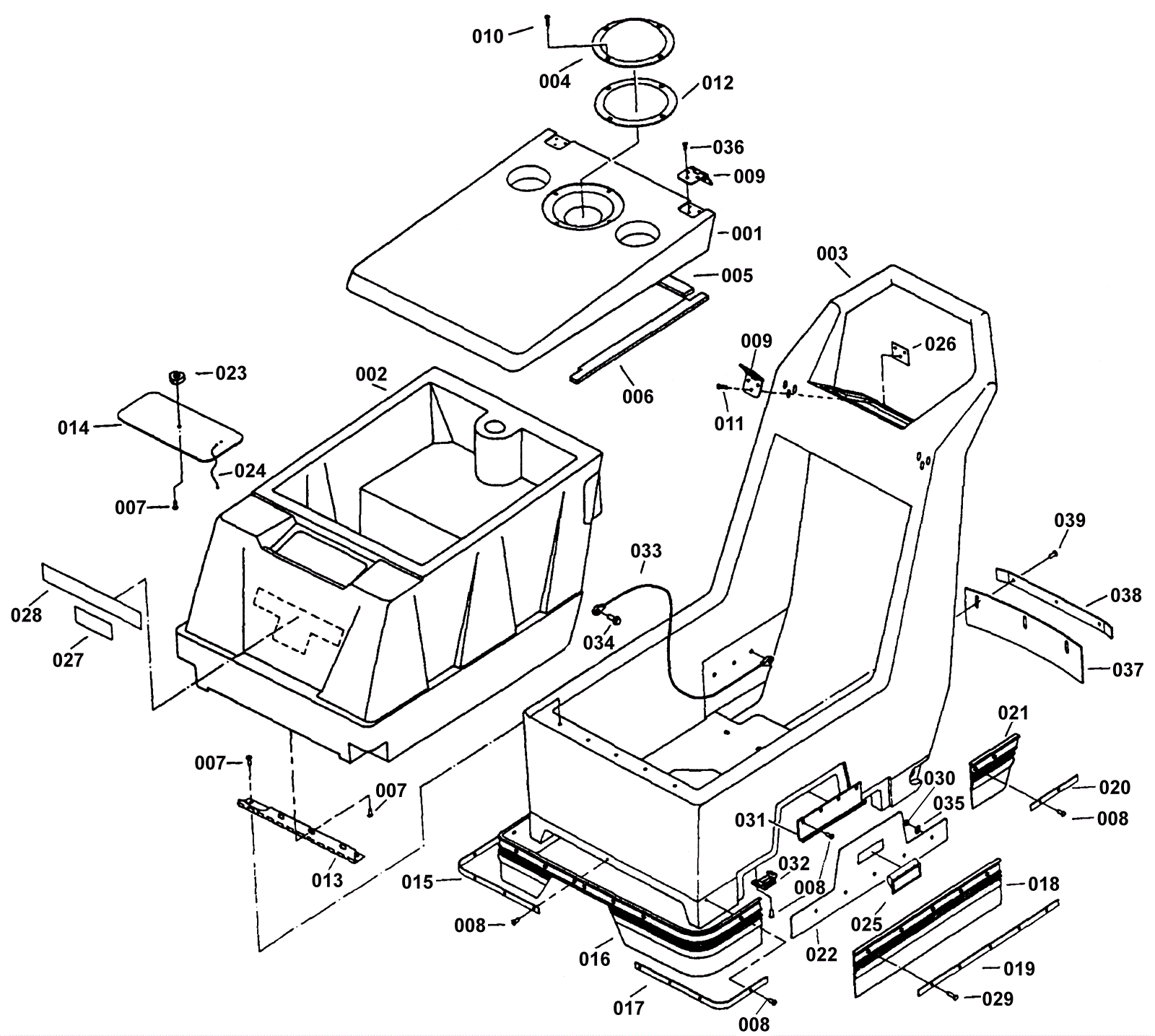

200 Main Polyethylene Components

#PartDescriptionPriceReqNotesAvailability
001 174-1188 Recovery lid assembly $257.21 1 usually ships 1-5 days
002a 174-0639 Tank assembly 200TD $721.46 1 (battery/electric) usually ships 1-5 days
002b 374-0026 200 TANK ASY TD $558.83 1 (traction drive) usually ships 1-5 days
003a 174-1189 20 inch base assembly Call for price 1 (battery/electric) usually ships 1-5 days
003b 374-0355 200 BASE ASY TD $3,491.68 1 (traction drive) usually ships 1-5 days
004 174-1190 Recovery dome $42.57 1 usually ships 1-5 days
005 174-0713 Lid gasket kit $21.63 2 (battery/electric) ships same day
006 174-0713 Lid gasket kit $21.63 2 (battery/electric) ships same day
007a 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 10 (battery/electric) ships same day
007b 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 10 (traction drive) ships same day
008 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 25 ships same day
009 174-0714 Hinge lid (OBSOLETE) $14.38 2 usually ships 4-14 days
010a 999-0817 Screw 10-24 x 5/8 round head zinc plated $0.99 4 (battery/electric) ships same day
010b 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 4 (traction drive) ships same day
011 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 6 ships same day
012 174-1193 Dome gasket $14.51 1 usually ships 1-5 days
013 174-0045 Hinge $39.65 1 usually ships 1-5 days
014 174-1194 Solution tank cover $16.48 1 usually ships 4-14 days
015 174-1195 Side skirt retainer $36.62 1 usually ships 1-5 days
016 N/A Not available Call for price 1 (splash skirt) usually ships 3-26 days
017 174-1197 Skirt retainer front $16.48 1 usually ships 1-5 days
018 N/A Not available Call for price 1 (access panel skirt) usually ships 3-26 days
019 174-1199 Skirt retainer at access panel $20.55 1 usually ships 4-14 days
020 174-1200 Skirt retainer at wheel Call for price 1 usually ships 1-5 days
021 174-1201 Skirt at wheel (OBSOLETE) Call for price 1 usually ships 4-14 days
022 174-1202 Access panel $69.77 1 usually ships 4-14 days
023 174-3084 Knob 1/4-20 $7.14 1 ships same day
024 174-3060 Nylon cord $1.69 1 usually ships 4-14 days
025 174-1203 Pocket pull $11.07 1 usually ships 4-14 days
026 174-1204 Hinge backing plate $8.87 2 usually ships 4-14 days
027 174-1205 200 decal $4.87 1 (electric/traction drive) usually ships 1-5 days
028 174-0302 Minuteman decal $7.90 1 usually ships 1-5 days
029 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 5 ships same day
030 999-0062 Nut 10-24 hex $0.99 5 ships same day
031 174-1206 Access panel hanger $18.59 1 usually ships 1-5 days
032 174-1207 Magnetic catch $2.53 2 usually ships 4-14 days
033 174-1208 Lead White $3.60 1 (battery/electric) usually ships 1-5 days
034 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 1 ships same day
035 999-0089 Washer #10 internal star lock zinc plated $0.99 5 ships same day
036 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 6 ships same day
037 174-1209 Skirt $5.23 1 usually ships 4-14 days
038 174-1210 Retainer $11.41 1 usually ships 1-5 days
039 174-5053 Screw 10 x 1/2 stainless steel $1.20 3 usually ships 1-5 days
N/S 274-0305 DECAL-SPEED CONTROL $3.66 1 (traction drive) usually ships 1-5 days
N/S 174-0259 Knob $7.99 1 (traction drive) usually ships 4-14 days
N/S 174-0381 Potentiometer assembly $51.62 1 (traction drive) usually ships 4-14 days
