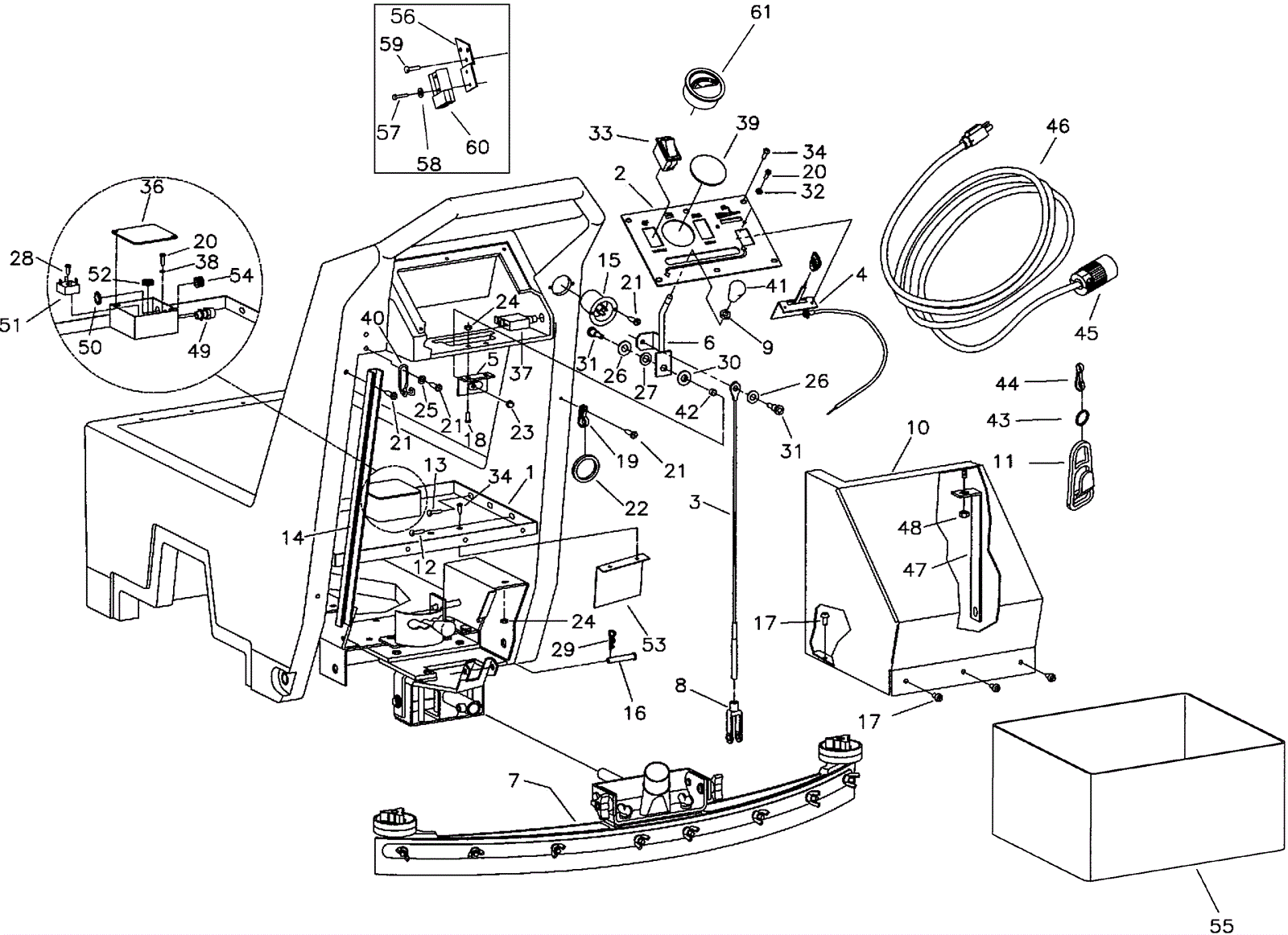

200 Control System - Battery/Electric

#PartDescriptionPriceReqNotesAvailability
1a 274-7230 WELD-FRAME ASSY $131.43 1 (electric) usually ships 1-5 days
1b 174-1177 Battery tray $95.65 1 (battery) usually ships 1-5 days
2a 174-3846 Screen printed dashboard Call for price 1 (battery/electric) usually ships 12-16 days
2b 174-3847 CE Screen printed dashboard Call for price 1 (electric) usually ships 12-16 days
2c 274-3183 DASHBOARD 200E CE 14GA $19.14 1 (battery) usually ships 1-5 days
3 174-1179 Squeegee lift cable $179.38 1 usually ships 1-5 days
4 174-0082 Solution control cable with lever and knob $28.17 1 usually ships 12-16 days
5 174-0778 Squeegee lift bracket assembly $17.78 1 usually ships 1-5 days
6 174-0779 Squeegee lift arm assembly $47.36 1 usually ships 1-5 days
7 174-1180 Squeegee assembly (OBSOLETE) $542.12 1 usually ships 12-16 days
8 174-1181 Yoke $32.86 1 usually ships 12-16 days
9 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
10 274-7349 WELD-COVER BACK $97.90 1 (electric) usually ships 1-5 days
11 174-3056 Cord strain relief $4.92 1 (electric) usually ships 12-16 days
12 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 1 ships same day
13 174-1391 Screw 5/16-18 x 1/2 mc $1.08 5 usually ships 12-16 days
14 174-0358 U-Channel $14.32 1 usually ships 1-5 days
15 174-1240 Male receptical $65.77 1 (electric) usually ships 1-5 days
16 174-1186 Clevis pin 5/16 x 1 11/16 $4.88 1 usually ships 12-16 days
17 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 4 ships same day
18 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
19 174-3001 Bag clip retainer $9.86 1 (electric) usually ships 1-5 days
21 174-2289 Screw 10 x 5/8 hi/lo $2.11 5 usually ships 12-16 days
22 274-0416 O-RING-1.25 I.D. X .187 $1.00 1 (electric) usually ships 1-5 days
23 999-0429 Nut 1/4-20 acorn nickel plated $0.99 1 ships same day
24 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 4 ships same day
25 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
26 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
27 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
28 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 1 (electric) ships same day
29 174-0201 Cotter pin $1.33 1 usually ships 12-16 days
30 174-5067 Flanged bushing $4.55 1 usually ships 1-5 days
31 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder $1.08 2 ships same day
32 174-0532 Washer 7/32 x 3/64 nylon $1.08 2 usually ships 12-16 days
33a 174-0181 Rocker switch $18.63 2 (electric) ships same day
33b 174-0374 Rocker switch with splash guard $14.54 2 (electric) usually ships 12-16 days
33c 174-0643 Transport switch $16.88 2 (battery) usually ships 12-16 days
34 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 8 ships same day
36 174-1262 Cover $4.80 1 (electric) usually ships 1-5 days
37a 174-5059 Circuit breaker 20 amp (push button) $5.70 1 (electric) usually ships 12-16 days
37b 174-5060 Circuit breaker 9Amp 240V $28.54 1 (electric) usually ships 1-5 days
37c 991-1633 70amp circuit breaker $57.60 1 (battery) usually ships 21-22 days
38 999-0089 Washer #10 internal star lock zinc plated $0.99 1 (electric) ships same day
39 174-0410 Hole plug $1.31 1 (electric) usually ships 1-5 days
40 174-0213 Wire formed hook $27.25 1 usually ships 1-5 days
41 174-0387 Knob $10.34 1 usually ships 12-16 days
42 174-0790 Spacer $2.81 1 usually ships 1-5 days
43 374-1756 CLAMP-RING $1.38 1 (electric) usually ships 1-5 days
44 174-3201 Spring hook $12.19 1 (electric) usually ships 1-5 days
45 174-3848 Female connector $40.02 1 (electric) usually ships 12-16 days
46a 174-0922 14/3 power cord 75 foot $271.63 1 (electric) usually ships 1-5 days
46b 174-5993 International cord assembly $246.30 1 (electric) usually ships 1-5 days
47 174-3849 Wire support Call for price 1 (electric) usually ships 12-16 days
48 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 (electric) ships same day
49 174-8002 Plastic strain relief $8.46 2 (electric) usually ships 1-5 days
50 174-3091 Nut 1/2 pipe lock $1.08 2 (electric) usually ships 12-16 days
51 274-6374 RECTIFIER-BRIDGE 50A 600V IMP $73.42 1 (electric) usually ships 12-16 days
52 174-3038 Grommet $1.44 1 (electric) usually ships 1-5 days
53 174-3850 Switch guard Call for price 1 (electric) usually ships 12-16 days
54 174-3851 Grommet Call for price 1 (electric) usually ships 12-16 days
55 174-1183 Battery liner $111.40 1 (battery) usually ships 1-5 days
56 174-1185 Anderson plug bracket $34.30 1 (battery) usually ships 1-5 days
57 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated $0.99 2 (battery) ships same day
58 174-5227 Washer 1/4 steel plated $1.08 2 (battery) ships same day
59 999-0717 Screw 1/4-14 x 3/4 pan head phillips self-drilling SS $1.12 3 (battery) ships same day
60 162-5032 175amp charger plug only (red) SB175 $17.23 1 (battery) ships same day
61 174-0180 Battery gauge $96.83 1 (battery) usually ships 12-16 days
N/S 174-1182 Battery spacer $14.95 1 (battery) usually ships 1-5 days
N/S 274-4445 DECAL-DASHBOARD 200CE $42.69 1 (battery) usually ships 1-5 days
