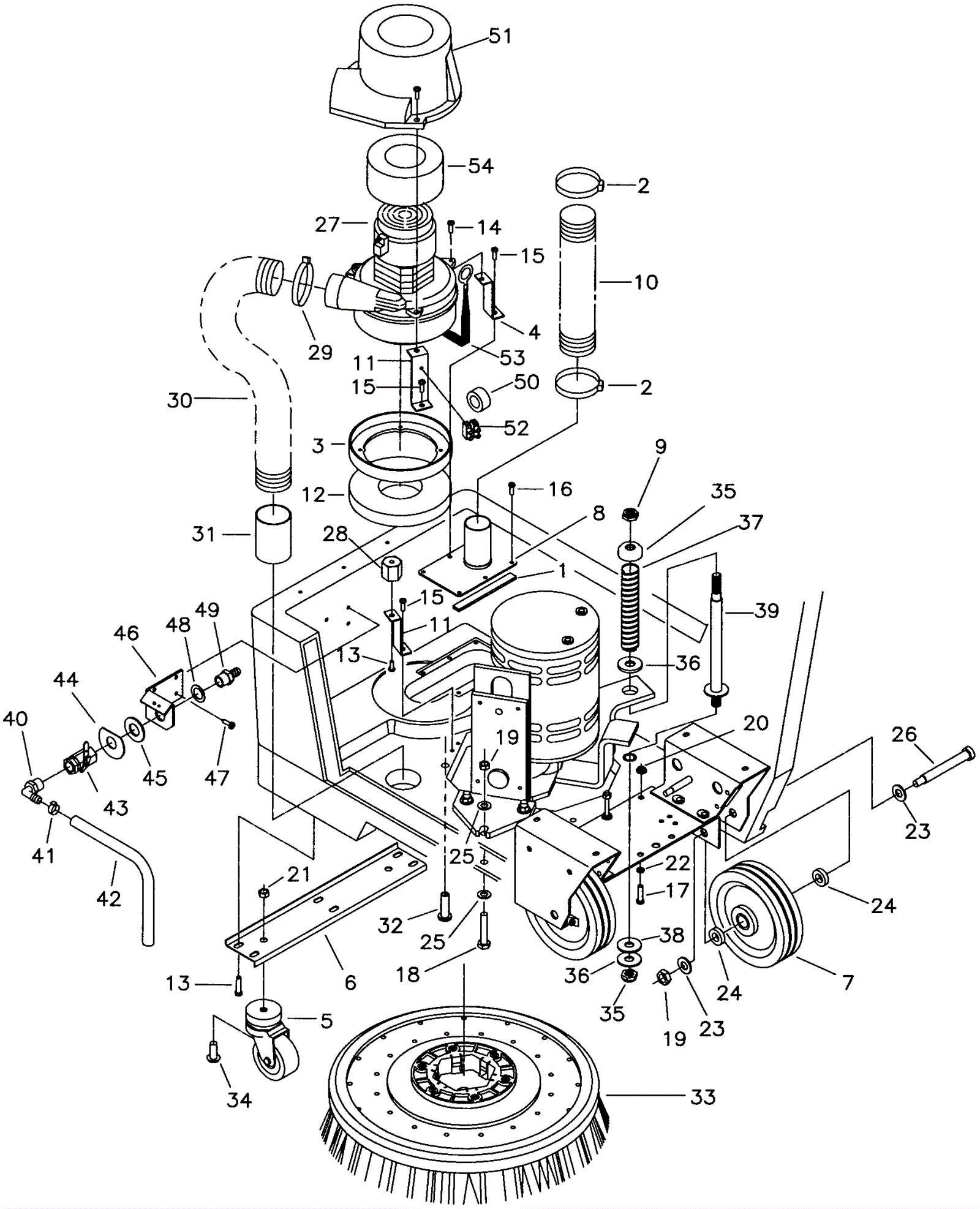

170 Vacuum Components

#PartDescriptionPriceReqNotesAvailability
1 174-0731 Rubber seal $2.04 1 usually ships 1-5 days
2 997-2000 Hose clamp $2.37 2 ships same day
3 164-0881 Vacuum motor gasket $13.42 1 ships same day
4 174-0733 Z bracket $2.94 2 usually ships 1-5 days
5 174-5336 Caster wheel $37.11 2 ships same day
6 174-0734 Caster mounting bracket $29.63 1 usually ships 1-5 days
7 174-5002 Wheel with ball bearing $76.60 2 ships same day
8 174-0735 Vacuum manifold assembly $19.01 1 usually ships 1-5 days
9 174-0148 Washer cup $6.37 1 usually ships 1-5 days
10 174-0736 Vacuum hose $11.41 1 usually ships 4-14 days
11 274-3054 Z BKT 5.7 VAC MOUNT $16.00 2 usually ships 1-5 days
12 174-2282 Gasket $7.99 1 usually ships 4-14 days
13 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 7 ships same day
14 374-1250 SCR-TR 1/4-20X 1.00 HWH $0.95 3 usually ships 1-5 days
15 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 4 ships same day
16 174-2289 Screw 10 x 5/8 hi/lo $1.90 5 usually ships 4-14 days
17 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 3 ships same day
18 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 6 ships same day
19 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 8 ships same day
20 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 3 ships same day
21 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 2 ships same day
22 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
23 999-0187 Washer 1/2 flat plain finish $0.99 6 ships same day
24 174-0737 S S bushing $8.24 4 usually ships 1-5 days
25 999-0120 Washer 3/8 SAE flat $0.99 6 ships same day
26 174-0738 Shoulder bolt $7.65 2 usually ships 1-5 days
27a 174-8514 24V 2 stage vacuum motor $215.67 1 (battery and traction) usually ships 1-5 days
27b 174-0740 Vac motor 220 for 115v model $377.84 1 (electric) usually ships 4-14 days
27c 174-0741 Vac motor 240 for single stage export $204.65 1 (electric) usually ships 1-5 days
28 174-0156 Insulated standoff $5.77 1 (battery and traction) usually ships 1-5 days
29a 174-5175 Hose clamp $6.79 1 (battery and traction) usually ships 1-5 days
29b 997-2003 Hose clamp $2.66 1 (electric) ships same day
30 174-5188 Hose Rubber Flex 2 x 13 $13.09 1 usually ships 1-5 days
31 174-0742 Hose sleeve $16.27 1 usually ships 1-5 days
32 174-0743 Nylon sleeve (OBSOLETE) Call for price 1 usually ships 1-5 days
33a 996-1012 Nylon brush $151.88 1 usually ships 4-14 days
33b 996-0728 Pad driver $136.24 1 usually ships 4-14 days
33c 996-1011 Polypropelene scrubbing brush $311.19 1 (battery and traction) usually ships 1-5 days
34 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish $1.14 2 ships same day
35 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
36 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
37 174-0744 Spring $10.12 1 usually ships 1-5 days
38 174-5070 Washer 3/4 lock internal $0.97 1 (battery and traction) usually ships 1-5 days
39 174-0745 Sleeve Call for price 1 usually ships 1-5 days
40 174-0083 90 degree elbow barb $3.54 1 usually ships 4-14 days
41 997-2001 Hose clamp $2.42 1 ships same day
42 174-0728 Solution hose $9.85 1 usually ships 4-14 days
43 174-0081 Manual solution valve $30.69 1 usually ships 4-14 days
44 999-9114 Washer 3/4 flat stainless steel $1.58 1 ships same day
45 174-0523 Washer 3/4 x 3/32 neoprene $11.97 1 usually ships 1-5 days
47 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 3 ships same day
48 174-0522 Washer .69 flat stainless steel $1.10 1 usually ships 4-14 days
49 174-0094 Hose barb $3.53 1 usually ships 4-14 days
50 174-5096 Torroid $3.26 1 (battery and traction) usually ships 1-5 days
51 174-0748 Vac cover $10.81 1 (battery and traction) usually ships 4-14 days
52 174-0157 Terminal block $4.86 1 (battery and traction) usually ships 1-5 days
53 174-0747 Ground strap $11.09 1 (battery and traction) usually ships 4-14 days
54a 174-0171 Foam ring $2.57 1 (battery) usually ships 4-14 days
54b 174-5104 Gasket $3.81 1 (traction) ships same day
