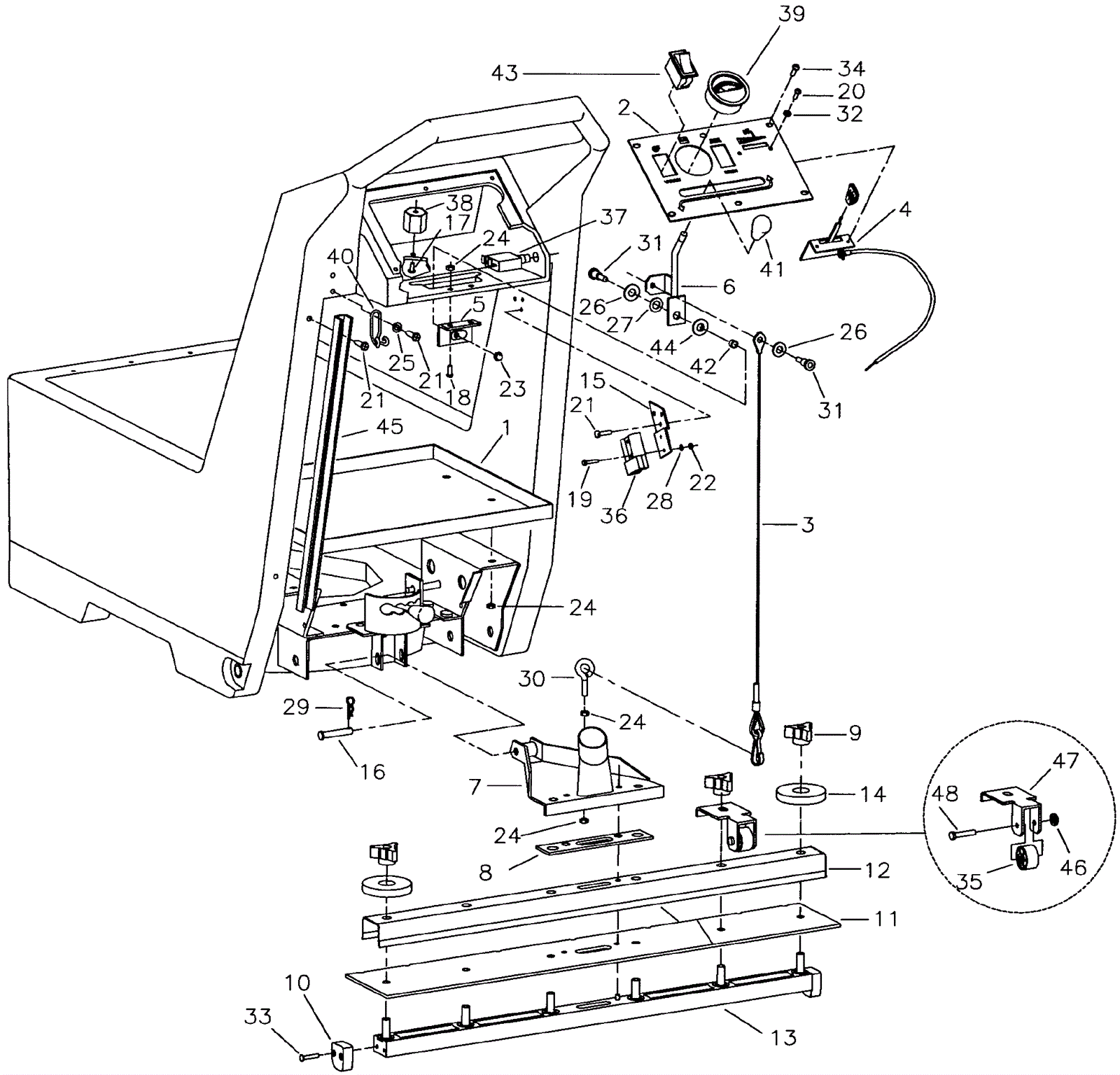

170 Squeegee and Scrubber Case Assembly - Battery

#PartDescriptionPriceReqNotesAvailability
1 174-0774 Battery tray $110.83 1 usually ships 1-5 days
2a 274-3462 DASHBOARD 170 SCREEN PRINTED $19.58 1 usually ships 1-5 days
2b 274-3323 DASHBOARD 170CE SCREEN PRINTED $16.73 1 usually ships 1-5 days
3 174-0776 Squeegee lift cable assembly $21.54 1 usually ships 4-14 days
4 174-0777 Solution control cable $22.81 1 usually ships 4-14 days
5 174-0778 Squeegee lift bracket assembly $16.00 1 usually ships 1-5 days
6 174-0779 Squeegee lift arm assembly $42.62 1 usually ships 1-5 days
7 174-0780 Squeegee mount assembly $112.81 1 usually ships 4-14 days
8 174-0781 Back diecut gasket $4.17 1 usually ships 4-14 days
9 174-0782 Star knob $2.44 6 usually ships 4-14 days
10 174-0783 Squeegee insert nylon $4.75 2 usually ships 4-14 days
11 174-0696 Squeegee blade 27 1/4 inch gum rubber (tan) $17.96 1 usually ships 4-14 days
12 174-0784 U profile $32.92 1 usually ships 4-14 days
13 174-0785 Squeegee assembly casting $160.47 1 usually ships 4-14 days
14 174-0786 Squeegee bumper wheel $10.12 2 ships same day
15 174-0787 Anderson plug bracket Call for price 1 usually ships 1-5 days
16 174-0788 Clevis pin $0.93 1 usually ships 4-14 days
17 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 1 ships same day
18 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
19 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 2 ships same day
21 174-2289 Screw 10 x 5/8 hi/lo $1.90 7 usually ships 4-14 days
22 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
23 999-0429 Nut 1/4-20 acorn nickel plated $0.99 1 ships same day
24 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 4 ships same day
25 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
26 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
27 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
28 174-5232 Washer #6 internal tooth locking $0.97 2 usually ships 4-14 days
29 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
30 174-0365 1/4 eyebolt $0.97 1 usually ships 4-14 days
31 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder $1.08 2 ships same day
32 174-0532 Washer 7/32 x 3/64 nylon $0.97 2 usually ships 4-14 days
33 999-0254 Screw 8-32 x 5/8 flat head slotted zinc $0.99 4 ships same day
34 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 6 ships same day
35 174-2094 Center wheel $17.70 2 usually ships 4-14 days
36 274-2725 CONNECTOR-SB50 RED HOUSING ONLY $15.79 1 usually ships 1-5 days
37 991-1633 70amp circuit breaker $57.60 1 usually ships 3-19 days
38 174-0156 Insulated standoff $5.77 1 usually ships 1-5 days
39 174-0180 Battery gauge $87.15 1 usually ships 4-14 days
40 174-0213 Wire formed hook $24.53 1 usually ships 1-5 days
41 174-0387 Knob $9.31 1 usually ships 4-14 days
42 174-0790 Spacer $2.53 1 usually ships 1-5 days
43a 174-0181 Rocker switch $16.77 2 ships same day
43b 174-0374 Rocker switch with splash guard $13.09 2 usually ships 4-14 days
44 174-5067 Flanged bushing $4.10 1 usually ships 1-5 days
45 174-0358 U-Channel $12.89 1 usually ships 1-5 days
46 174-2092 Hub cap $2.12 2 usually ships 4-14 days
47 174-0791 Bracket $11.41 2 usually ships 4-14 days
48 174-0792 Clevis pin $0.97 2 usually ships 4-14 days
