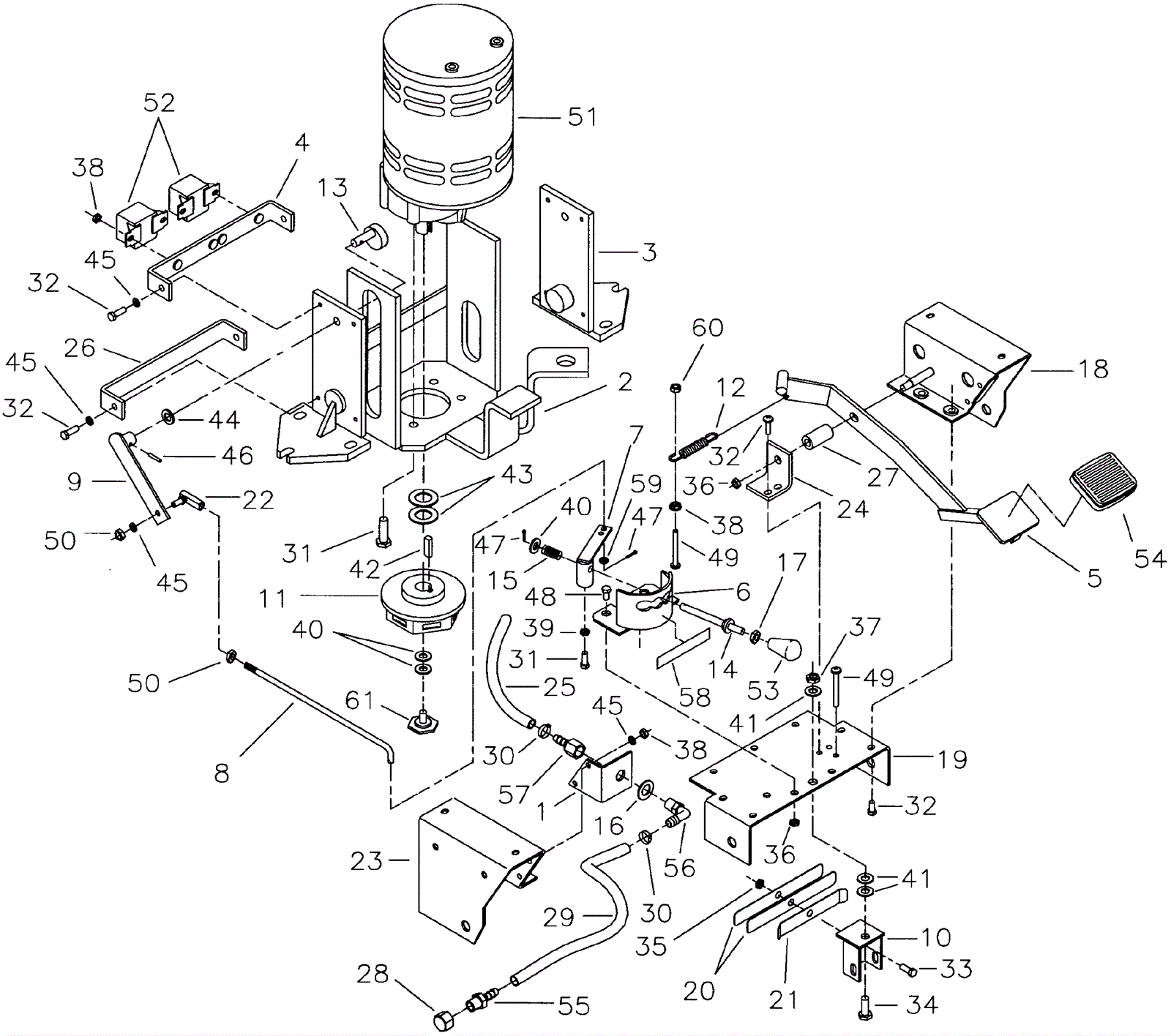

170 Brush Drive Assembly - Battery and Electric

#PartDescriptionPriceReqNotesAvailability
1 174-0749 Mounting bracket quick disc $10.58 1 usually ships 1-5 days
2 174-0750 Motor mount weldment Call for price 1 usually ships 1-5 days
3 174-0751 Motor bracket weldment $124.93 2 usually ships 1-5 days
4 174-0752 Stabilizer bracket Call for price 3 (battery) usually ships 1-5 days
5 174-0753 Motor lift weldment $66.21 1 usually ships 1-5 days
6 174-0754 Speed control weldment $17.01 1 usually ships 1-5 days
7 174-0755 Control pivot weldment $10.37 1 usually ships 1-5 days
8 174-0756 Speed control rod $19.01 1 usually ships 1-5 days
9 174-0757 Speed control weldment $13.46 1 usually ships 1-5 days
10 174-0758 Squeegee mount weldment (OBSOLETE) $30.84 1 usually ships 1-5 days
11 174-0035 Drive hub $41.45 1 usually ships 4-14 days
12 174-0008 Return spring $2.78 1 usually ships 4-14 days
13 174-0759 Pivot cam $26.60 1 usually ships 1-5 days
14 174-0760 Threaded connecting rod $21.48 1 usually ships 1-5 days
15 174-0761 Compression spring $0.90 1 usually ships 1-5 days
16 174-3093 Washer .56 x 1 flat $0.97 1 usually ships 4-14 days
17 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
18 174-0762 U strut right wheel mount $101.70 1 usually ships 1-5 days
19 174-0763 Mounting plate wheel carriage $79.24 1 usually ships 1-5 days
20 174-0764 Squeegee return spring long $9.87 3 usually ships 4-14 days
21 174-0765 Squeegee return spring short (OBSOLETE) $9.87 1 usually ships 4-14 days
22 174-0766 Ball joint $12.28 1 usually ships 1-5 days
23 174-0767 U strut left wheel mount $64.93 1 usually ships 1-5 days
24 174-0768 Left motor lift bracket $3.88 1 usually ships 1-5 days
25 174-0725 Hose 3/8 x 34 inches $5.84 1 usually ships 4-14 days
26 174-0769 Lower stabilizer bar $10.37 1 usually ships 1-5 days
28 174-0079 Nylon cap $1.18 1 usually ships 4-14 days
29 174-0771 Clear dump hose $2.50 1 usually ships 4-14 days
30 997-2001 Hose clamp $2.42 2 ships same day
31 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish $1.14 5 ships same day
32 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 10 ships same day
33 174-5772 Bolt 5/16-18 x 5/8 hex head $0.97 1 usually ships 1-5 days
34 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel $0.99 1 ships same day
35 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
36 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 3 ships same day
37 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
38 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 8 ships same day
39 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 1 ships same day
40 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
41 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
42 174-0035 Drive hub $41.45 1 usually ships 4-14 days
43 999-9114 Washer 3/4 flat stainless steel $1.58 3 ships same day
44 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
45 999-0060 Washer 1/4 split lock plain finish $0.99 9 ships same day
46 174-0772 Roll Pin $0.97 1 usually ships 1-5 days
47 174-3219 Cotter pin .06 x .75 $1.20 2 ships same day
48 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 2 ships same day
49 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 3 ships same day
50 999-0718 Nut 1/4-28 hex jam zinc plated $0.99 2 ships same day
51a 174-0054 24V brush gear motor assembly $793.62 1 (battery and traction) usually ships 4-14 days
51b 174-1544 115 Volt gear motor Call for price 1 (electric) usually ships 1-5 days
51c 374-0008 MOTOR-GEAR 17E 230/220V Call for price 1 (electric) usually ships 1-5 days
52 174-0209 24V 50amp contactor $87.71 2 (battery) usually ships 4-14 days
53 174-0387 Knob $9.31 2 usually ships 4-14 days
54 174-0102 Pedal pad $5.86 1 usually ships 4-14 days
55 174-0078 Barb $6.66 1 usually ships 4-14 days
56 164-0187 90 degree elbow barb $6.23 1 ships same day
57 174-0222 Hose barb $3.97 1 usually ships 4-14 days
58 174-0773 Diecut speed control decal $0.90 1 usually ships 1-5 days
59 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
60 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
61 174-0037 Retainer bolt $14.63 1 usually ships 4-14 days
