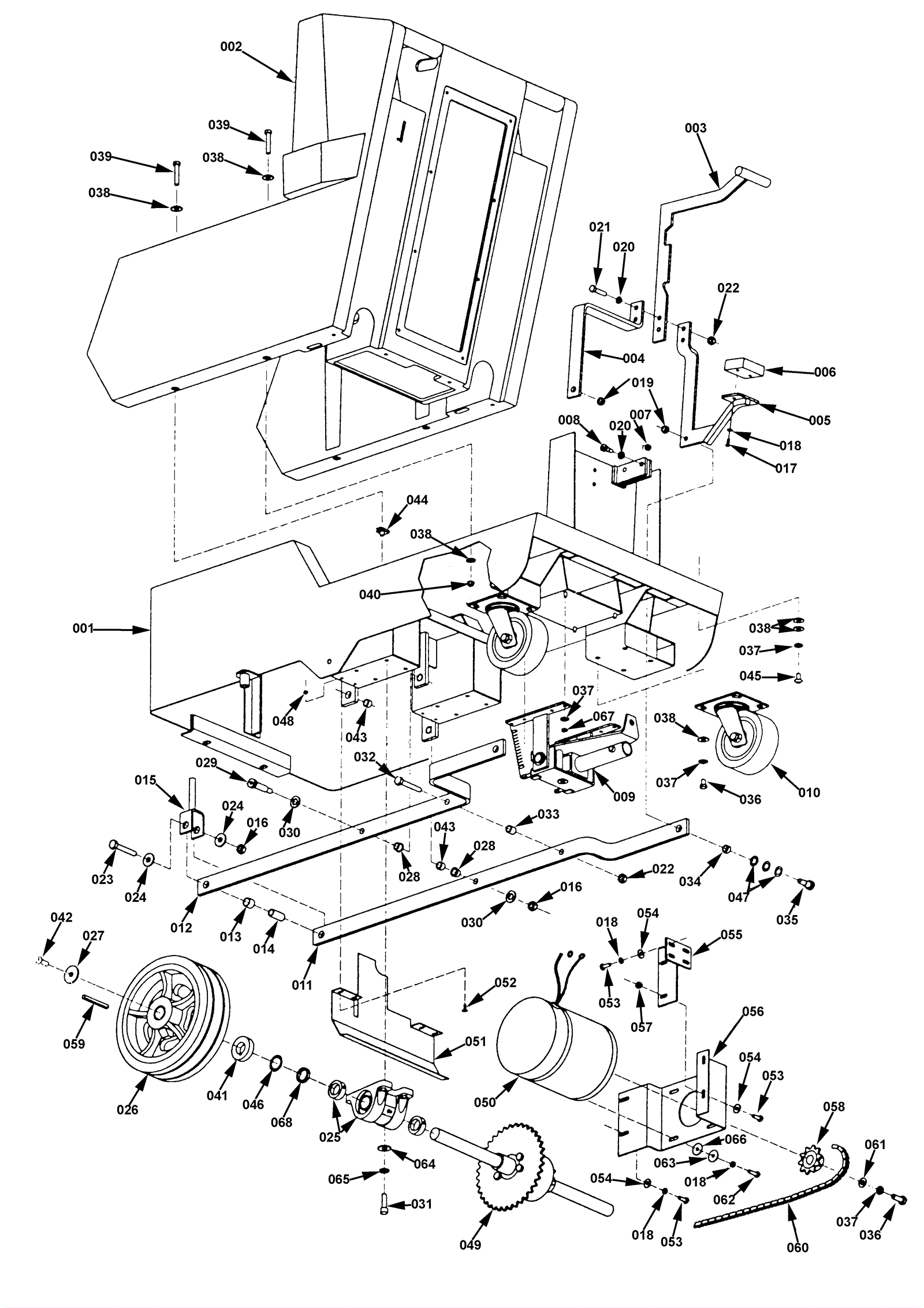

Drive Assembly - Traction Driven (Self-Propelled)

#PartDescription ReqNotesAvailability
001 174-0040 Main frame assembly 1
002 174-0039 Base assembly 1
003 174-0099 Lift handle weldment (OBSOLETE) 1
004 174-0100 Pedal brace 1
005 174-0101 Pedal weldment 1
006 174-0102 Pedal pad 1
007 174-0103 Spacer 1
008 999-0492 Bolt 3/8 x 3/4 x 5/16 shoulder socket head 2
009 174-0105 Squeegee mechanism assembly 1
010a 174-0106 Caster wheel assembly 2 (OEM)
010b 991-2004 Caster and swivel assembly 2 (NON-OEM)
011 174-0107 Right side lift arm 1
012 174-0108 Left side lift arm 1
013 174-0109 Spacer 1
014 174-1405 Yoke bushing 1
015 174-0111 Yoke weldment 1
016 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
017 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
018 999-0060 Washer 1/4 split lock plain finish 12
019 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2
020 999-0034 Washer 3/8 split lock plain finish 4
021 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 2
022 999-0488 Nut 3/8-16 flange lock serrated zinc plated 3
023 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated 1
024 999-0617 Washer 3/8 x 1 flat stainless steel 2
025 174-0232 Pillow block bearing assembly 2
026 174-1341 Wheel 10 x 2.75 x .75 2 (for transaxle)
027 174-0234 Washer 2
028 174-0120 Bushing 2
029 999-0589 Screw 3/8-16 x 1 1/4 socket head shoulder 1
030 174-3093 Washer .56 x 1 flat 2
031 999-0600 Screw 3/8-16 x 1/4 socket head shoulder stainless steel 8
032 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated 1
033 174-0122 Spacer 1
034 174-0123 Bushing 2
035 999-0590 Screw 3/8-16 x 1/2 socket head shoulder 2
036 174-5325 Bolt 1/2 x 1/2 shoulder 9
037 999-0028 Washer 5/16 split lock plain finish 17
038 999-0024 Washer 5/16 flat stainless steel 22
039 999-0591 Bolt 5/16-18 x 1 1/2 hex full thread grade 5 zinc plated 4
040 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
041 174-0235 Spacer 2
042 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish 2
043 174-0124 Bushing 5
044 174-0526 Nut 5/16-18 u-type 2
045 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated 4
046 174-0326 Wave washer 2
047 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat 6
048 999-0568 Nut 10-24 flange lock serrated zinc plated 4
049 174-0236 Differential 1
050 174-0237 Drive motor 1
051 174-0238 Splash guard 1
052 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 4
053 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 8
054 999-0016 Washer 1/4 flat plain finish 8
055 174-0239 Anchor bracket 1
056 174-0240 Motor mount bracket 1
057 999-0595 Nut 1/4-20 flange lock serrated zinc plated 2
058 174-0241 Spocket 1
059 174-1383 Square keyway 2
060a 991-0101 Chain (sold by the link) 66
060b 991-0103 Master link 1
061 999-0120 Washer 3/8 SAE flat 1
062 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
063 174-0536 Washer 1/4 4
064 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 8
065 174-0537 Washer 3/8 helical stainless steel 8
066 999-0105 Washer 5/16 external star lock zinc plated 4
067 999-0593 Nut 5/16-18 hex stainless steel 4
068 174-0119 Spacer 2
