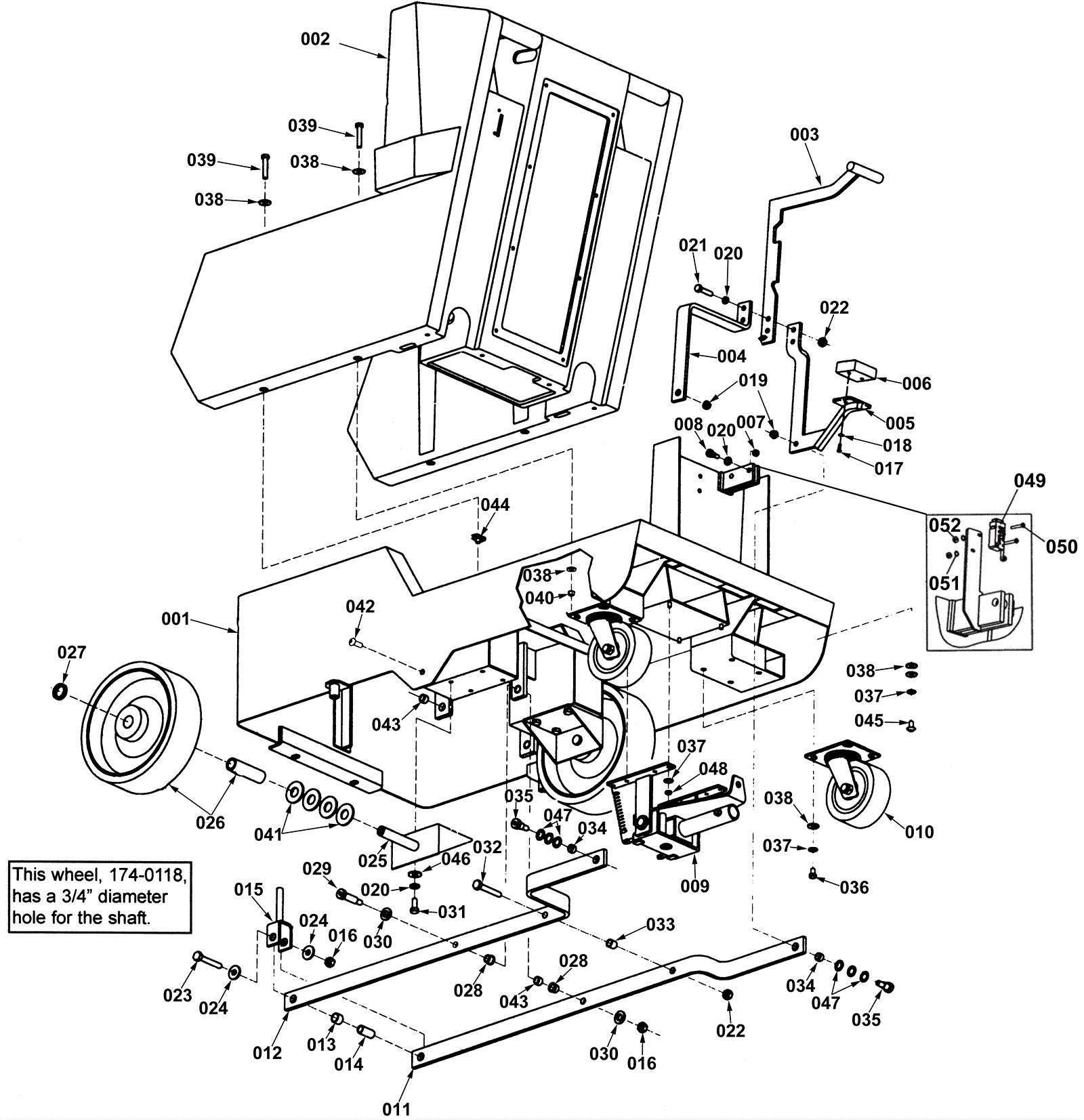

265 Drive Assembly - Brush Driven (Not Self-Propelled)

#PartDescriptionPriceReqNotesAvailability
001 174-0040 Main frame assembly Call for price 1 usually ships 1-5 days
002 174-0098 Base assembly Call for price 1 usually ships 1-5 days
003 174-0099 Lift handle weldment (OBSOLETE) $163.00 1 usually ships 4-14 days
004 174-0100 Pedal brace $67.79 1 usually ships 1-5 days
005 174-0101 Pedal weldment $75.68 1 usually ships 1-5 days
006 174-0102 Pedal pad $5.86 1 usually ships 4-14 days
007 174-0103 Spacer $9.31 2 usually ships 1-5 days
008 999-0492 Bolt 3/8 x 3/4 x 5/16 shoulder socket head $1.91 2 ships same day
009 174-0105 Squeegee mechanism assembly $354.22 1 usually ships 1-5 days
010a 174-0106 Caster wheel assembly $53.33 2 (OEM) usually ships 4-14 days
010b 991-2004 Caster and swivel assembly $51.84 2 (NON-OEM) ships same day
011 174-0107 Right side lift arm $95.66 1 usually ships 1-5 days
012 174-0108 Left side lift arm $95.66 1 usually ships 1-5 days
013 174-0109 Spacer $2.00 1 usually ships 1-5 days
014 174-1405 Yoke bushing $2.42 1 usually ships 1-5 days
015 174-0111 Yoke weldment $11.41 1 usually ships 1-5 days
016 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
017 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
018 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
019 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 2 ships same day
020 999-0034 Washer 3/8 split lock plain finish $1.82 12 ships same day
021 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
022 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 3 ships same day
023 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 1 ships same day
024 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
025 174-0117 Axle bracket weldment Call for price 2 usually ships 1-5 days
026 174-0118 Wheel (includes wheel bearing) $344.90 2 ships same day
027 174-0119 Spacer $6.35 2 usually ships 1-5 days
028 174-0120 Bushing $2.63 2 usually ships 4-14 days
029 999-0589 Screw 3/8-16 x 1 1/4 socket head shoulder $5.19 1 ships same day
030 174-3093 Washer .56 x 1 flat $0.97 2 usually ships 4-14 days
031 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 8 ships same day
032 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
033 174-0122 Spacer $1.78 1 usually ships 1-5 days
034 174-0123 Bushing $9.04 2 usually ships 1-5 days
035 999-0590 Screw 3/8-16 x 1/2 socket head shoulder $4.27 2 ships same day
036 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 8 ships same day
037 999-0028 Washer 5/16 split lock plain finish $0.99 16 ships same day
038 999-0024 Washer 5/16 flat stainless steel $1.34 22 ships same day
039 999-0591 Bolt 5/16-18 x 1 1/2 hex full thread grade 5 zinc plated $0.99 4 ships same day
040 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
041 999-0588 Washer 7/8 flat stainless steel $11.44 8 ships same day
042 999-0592 Screw 3/8-16 x 1 button head socket plain finish $0.99 2 ships same day
043 174-0124 Bushing $2.03 5 usually ships 1-5 days
044 174-0526 Nut 5/16-18 u-type $1.20 2 usually ships 4-14 days
045 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
046 999-0120 Washer 3/8 SAE flat $0.99 8 ships same day
047 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 6 usually ships 4-14 days
048 999-0593 Nut 5/16-18 hex stainless steel $0.99 4 ships same day
049 174-9022 Brush deck switch $28.77 2 usually ships 4-14 days
050 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated $0.99 1 ships same day
051 374-1197 WSR-INT LOCK #4 $1.20 2 usually ships 1-5 days
052 999-0408 Nut 4-40 plain machine screw $0.99 2 ships same day
