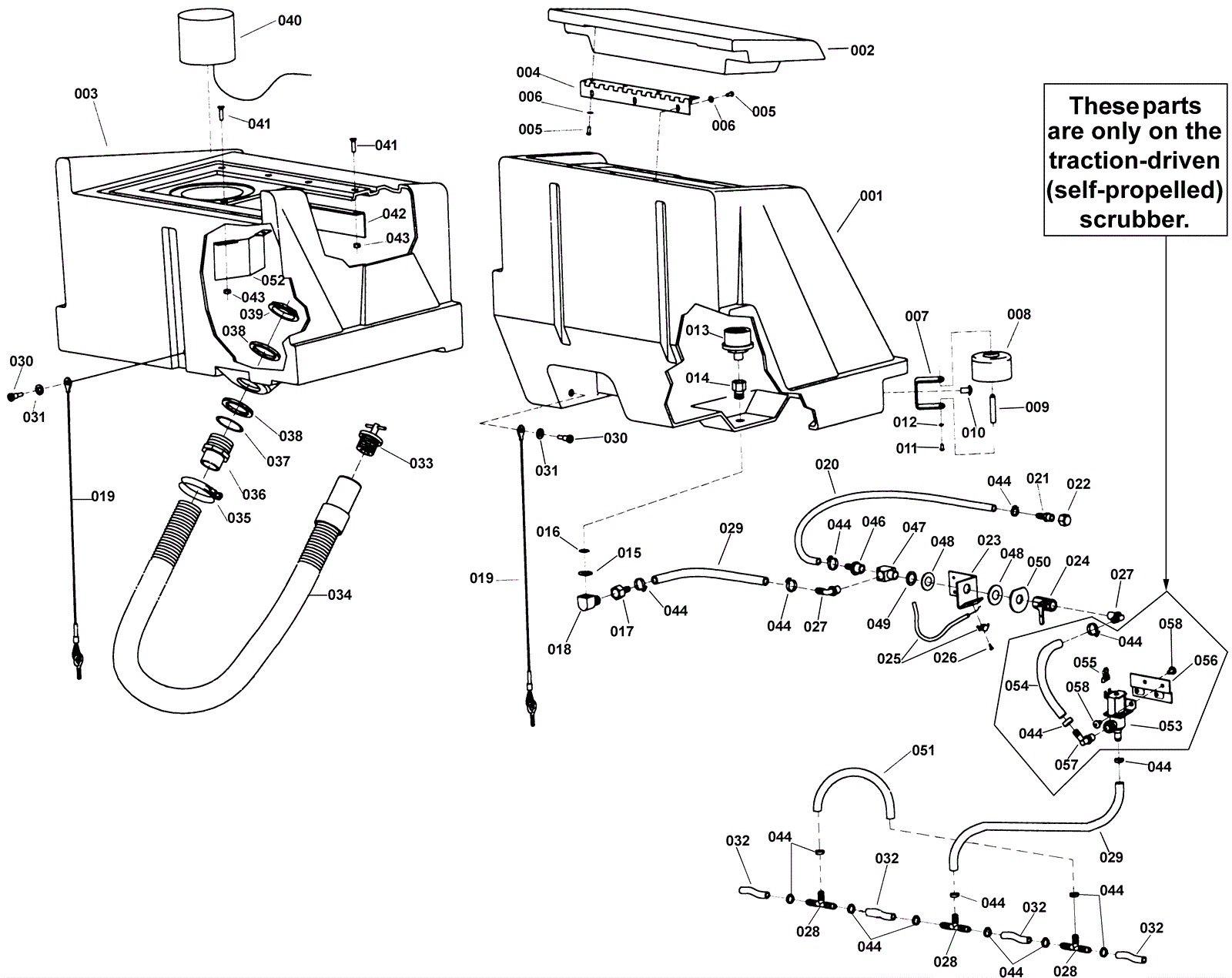

Solution and Recovery Tank Assembly

#PartDescription ReqNotesAvailability
001a 174-0041 Solution tank 1
001b 274-9022 SOLUTION TANK, ES260320 BURGUNDY 1
002 174-0066 Solution lid (burgundy) 1
003a 174-0042 Recovery tank 1
003b 274-9025 RECOVERY TANK, ES260320 BURGUNDY 1
004 174-0067 Hinge 1
005a 999-0586 Screw 10-24 x 1/2 truss head stainless steel 7 (before 2006)
005b 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel 7 (after 2006)
006 999-0006 Washer 3/16 flat zinc plated 7 (before 2006)
007 174-0068 Guide wheel bracket 2
008 174-0069 Guide wheel 2
009 174-0070 Bumper wheel axle 2
010a 999-0587 Screw 3/8-16 x 5/8 round head slotted zinc 2 (before 2006)
010b 999-0616 Screw 3/8-16 x 5/8 socket head alloy plain finish 2 (after 2006)
011a 999-0056 Screw 10-32 x 3/8 round head slotted zinc plated 2 (before 2006)
011b 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated 2 (after 2006)
012 999-0089 Washer #10 internal star lock zinc plated 2
013 174-0071 Solution strainer 1
014 174-0072 Brass adapter 1
015 174-0522 Washer .69 flat stainless steel 1
016 174-0073 O-ring 1
017 174-0074 3/8 brass hose barb 1
018 174-0075 90 Degree elbow barb 1
019 174-0076 Tank cable assembly 2
020a 991-1401 Clear vinyl tubing (sold by the inch) 38 in
020b 174-0077 Nylon braided hose 1 (before 2006)
020c 274-0718 TUBING, PLASTIC 3/8 ID X 70 inch 1 (after 2006)
021 174-0078 Barb 1
022 174-0079 Nylon cap 1
024 174-0081 Manual solution valve 1
025 174-0082 Solution control cable with lever and knob 1
026a 999-0564 Screw 10 x 3/8 pan head phillips sheet metal 1 (before 2006)
026b 999-0564 Screw 10 x 3/8 pan head phillips sheet metal 1 (after 2006)
027 174-0083 90 degree elbow barb 2
028 174-0084 3/8 tee barb 3
029a 174-0085 Wire reinforced hose 2 (before 2006)
029b 174-6402 Solution feed end hose (after 2006)
030a 999-0312 Screw 1/4-20 x 3/8 socket head shoulder 2 (before 2006)
030b 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder (after 2006)
031 999-0024 Washer 5/16 flat stainless steel 2
032 174-0086 Nylon braid hose 4
033a 174-2264 Drain plug 1 (OEM)
033b 991-9207 DRAIN PLUG 1 1/4 inch 1 (NON-OEM)
034 174-0088 Drain hose assembly 1
035 997-2000 Hose clamp 1
036 174-0089 Hose adapter 1
037 174-0051 Washer stainless steel 1
038 174-0048 Washer 1 13/16 x 1/8 neoprene 2
039 174-0049 Nut 1 1/2 pipe thread 1
040 174-0090 Foam float assembly 1
041 999-0538 Screw 1/4-20 x 1 flat head slotted stainless steel 6 (before 2006)
042 174-0091 Backing angle bracket 1
043 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6 (before 2006)
044 997-2001 Hose clamp 13 (self-propelled)
046 174-0094 Hose barb 1
047 174-0095 3/8 brass tee 1
048 174-0523 Washer 3/4 x 3/32 neoprene 2
049 999-0588 Washer 7/8 flat stainless steel 1
050 999-9114 Washer 3/4 flat stainless steel 1
051a 174-0096 Wire reinforced hose 1
051b 174-0231 Wire reinforced hose 1 (self propelled)
052 174-0097 Deflector 1 (before 2006)
053 174-0025 24V solution solenoid valve 1 (self-propelled)
054 174-6402 Solution feed end hose 1 (self-propelled)
055 174-0230 Diode assembly 1 (self-propelled)
056 174-0473 Solenoid bracket 1 (self-propelled)
057 174-0187 Right handle 1 (self-propelled)
058 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 4 (self-propelled)
N/S 274-1078 HOSE-SOLUTION DUMP 38 inch 1
