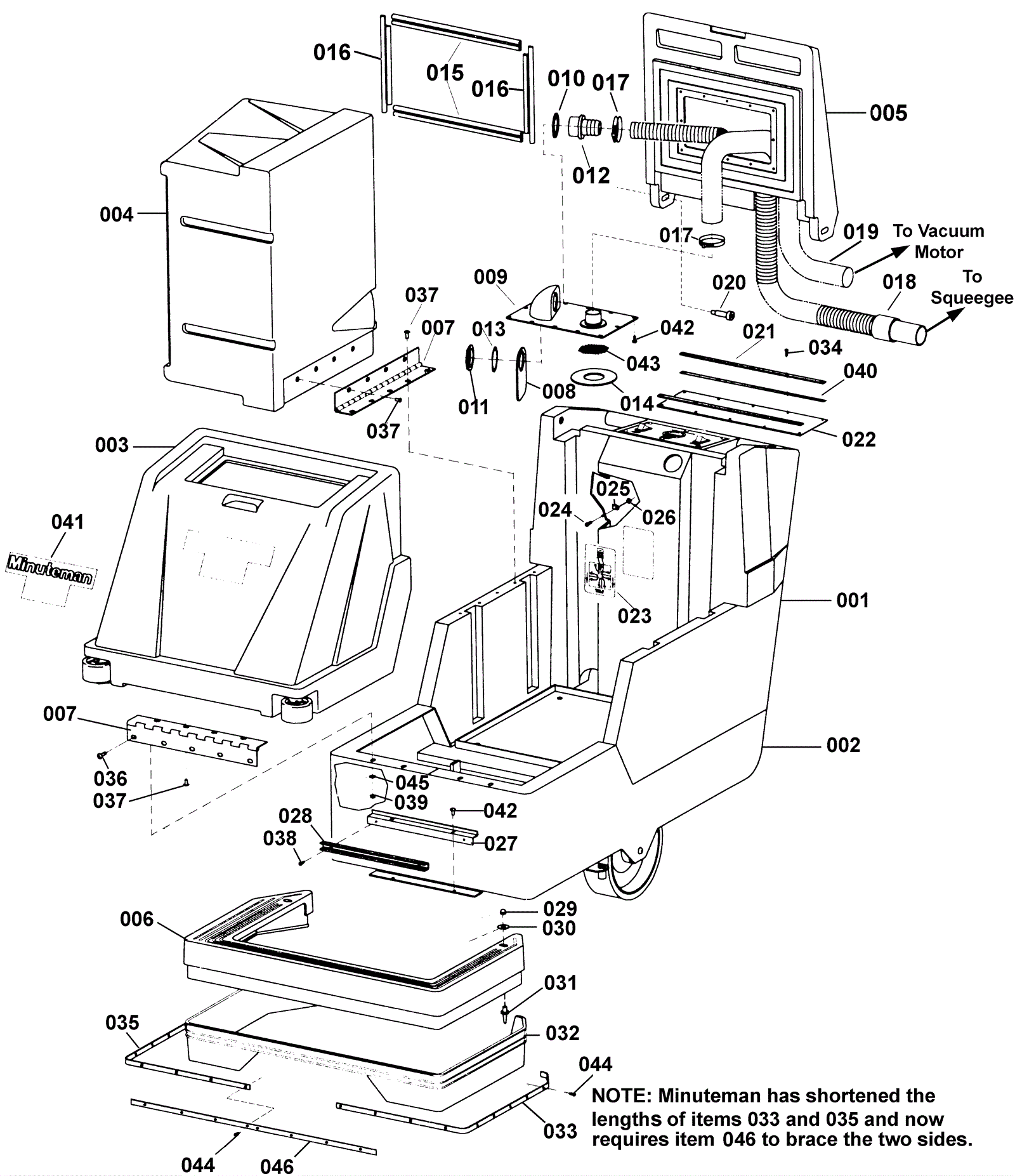

265 Main Assembly

#PartDescriptionPriceReqNotesAvailability
001a 174-0039 Base assembly $142.00 1 (model 260TD) usually ships 1-5 days
001b 174-0098 Base assembly Call for price 1 usually ships 1-5 days
002a 174-0040 Main frame assembly Call for price 1 usually ships 1-5 days
002b 174-5000 Main frame Call for price 1 (model 260TD) usually ships 4-14 days
003a 174-0041 Solution tank $510.52 1 (light grey) usually ships 4-14 days
003b 274-9022 SOLUTION TANK, ES260320 BURGUNDY $399.42 1 (burgundy) usually ships 1-5 days
004a 174-0042 Recovery tank $420.48 1 (light grey) usually ships 1-5 days
004b 274-9025 RECOVERY TANK, ES260320 BURGUNDY $400.46 1 (burgundy) usually ships 1-5 days
005 174-0043 Recovery lid (burgundy) $327.27 1 usually ships 1-5 days
006 174-0044 Plastic skirt $252.95 1 usually ships 4-14 days
007 174-0045 Hinge $39.65 2 usually ships 1-5 days
008 174-0046 Rubber deflector flap $5.01 1 usually ships 4-14 days
010 174-0048 Washer 1 13/16 x 1/8 neoprene $1.42 1 usually ships 4-14 days
011a 174-0049 Nut 1 1/2 pipe thread $2.00 1 (before 2006) usually ships 4-14 days
011b 174-0049 Nut 1 1/2 pipe thread $2.00 1 (after 2006) usually ships 4-14 days
012 174-0050 Hose fitting $4.66 1 usually ships 4-14 days
013 174-0051 Washer stainless steel $0.95 1 ships same day
014 174-0005 Gasket $6.35 1 usually ships 4-14 days
015 174-0713 Lid gasket kit $21.63 2 ships same day
016 174-0713 Lid gasket kit $21.63 2 ships same day
017 997-2000 Hose clamp $2.37 2 ships same day
018 174-0019 Recovery hose with cuff $50.48 1 (to squeegee) ships same day
019a 174-0053 Vacuum hose $29.30 1 (to vacuum motor) ships same day
020 999-0473 Screw 3/8-16 x 1 1/2 socket head shoulder steel $4.03 2 (before 2006) ships same day
021 174-0055 Retainer flap (OBSOLETE) $6.81 2 usually ships 4-14 days
022 174-0056 Lid flap $38.75 1 usually ships 4-14 days
023 174-9036 Battery routing decal $3.66 1 usually ships 1-5 days
024 999-0159 Screw 10-24 x 7/8 round head slotted zinc plated $0.99 2 (before 2006) ships same day
025 174-0058 Plastic cable clamp $1.18 2 (before 2006) usually ships 1-5 days
026 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 (before 2006) ships same day
027 174-0060 Solution dump bracket $20.27 1 usually ships 1-5 days
028 174-0061 U channel $23.25 1 usually ships 1-5 days
029 999-0584 Nut 3/8-24 acorn nickel plated $0.99 2 (before 2006) ships same day
030a 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 (before 2006) ships same day
030b 999-0328 Washer 7/16 USS flat $0.99 2 (after 2006) ships same day
031 174-0024 Skirt pin $7.11 2 (before 2006) usually ships 4-14 days
032 174-0020 Rubber skirt $38.38 1 usually ships 4-14 days
033 174-0021 Left side skirt retainer $20.96 1 usually ships 4-14 days
034 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 10 ships same day
035 174-0022 Right side skirt retainer $55.35 1 usually ships 4-14 days
036a 999-0564 Screw 10 x 3/8 pan head phillips sheet metal $0.99 2 (before 2006) ships same day
036b 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 2 (after 2006) ships same day
037 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 13 ships same day
038 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
039 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
040 174-0062 Foam tape (sold by the foot) $2.89 2 usually ships 4-14 days
041a 174-0063 Minuteman 260 decal $4.87 1 usually ships 1-5 days
041b 174-0064 Minuteman 265 decal Call for price 1 usually ships 1-5 days
042 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 14 ships same day
043 174-0065 Filter screen $15.91 1 usually ships 4-14 days
044 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 20 ships same day
045 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
046 174-0657 Front skirt retainer $25.83 1 usually ships 4-14 days
N/S 174-0024 Skirt pin $7.11 1 usually ships 4-14 days
N/S 174-4999 Recovery lid mount weldment Call for price 1 usually ships 4-14 days
N/S 274-4299 WELD-BRKT SKIRT Call for price 1 usually ships 1-5 days
N/S 174-4998 Skirt mount bracket Call for price 1 (after 2006) usually ships 4-14 days
