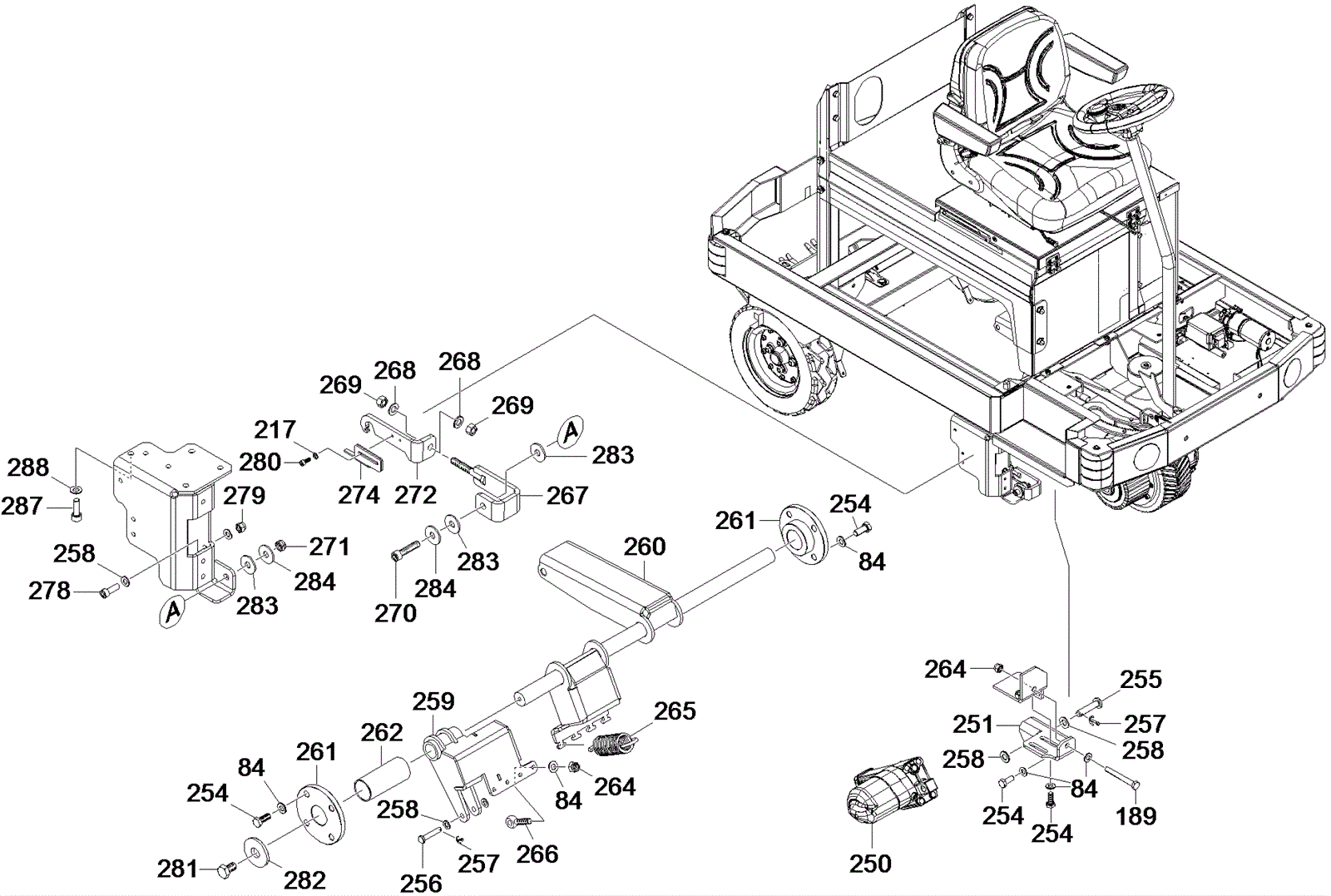

| # | Part | Description |
Req | Notes | Availability |
|---|
189 |
999-9202
|
Screw M8-1.25 x 65 hex zinc |
1 |
|
|
217 |
999-1261
|
Washer M6 flat stainless steel |
9 |
|
|
250 |
273-9529
|
24V hoisting motor |
1 |
|
|
251 |
273-9530
|
Hoisting motor fixing bracket |
1 |
|
|
254 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
11 |
|
|
255 |
273-9531
|
Bolt |
1 |
|
|
256 |
273-9532
|
Bolt |
1 |
|
|
257 |
373-1350
|
Cotter 3 |
2 |
|
|
258 |
273-6016
|
Washer |
8 |
|
|
259 |
273-9533
|
Lever |
1 |
|
|
260 |
273-9534
|
Lever |
1 |
|
|
261 |
273-9535
|
Bearing sleeve |
2 |
|
|
262 |
273-9536
|
Bearing sleeve |
1 |
|
|
265 |
273-8293
|
Extension spring |
4 |
|
|
266 |
273-9537
|
Eye screw |
4 |
|
|
267 |
273-9541
|
Front complete tie rod |
2 |
|
|
268 |
273-6417
|
Washer |
4 |
|
|
269 |
273-2055
|
Nut |
4 |
|
|
270 |
273-9317
|
Screw M12 x 50 cylinder head |
2 |
|
|
271 |
999-0503
|
Nut M12-1.75 hex stainless steel |
2 |
|
|
272 |
273-9538
|
Right hand tie rod |
1 |
|
|
274 |
273-9539
|
Right hand complete locking part |
1 |
|
|
278 |
273-9321
|
Screw M10 x 30 cylinder head |
4 |
|
|
279 |
999-6697
|
Nut M10-1.5 hex stainless steel |
4 |
|
|
281 |
273-8392
|
Screw M10 x 16 hex head |
1 |
|
|
282 |
273-9540
|
Washer |
1 |
|
|
283 |
273-9323
|
Washer |
6 |
|
|
284 |
273-8317
|
Washer |
4 |
|
|
287 |
273-9324
|
Screw M10 x 30 cylinder head |
8 |
|
|
288 |
273-6016
|
Washer |
10 |
|
|
