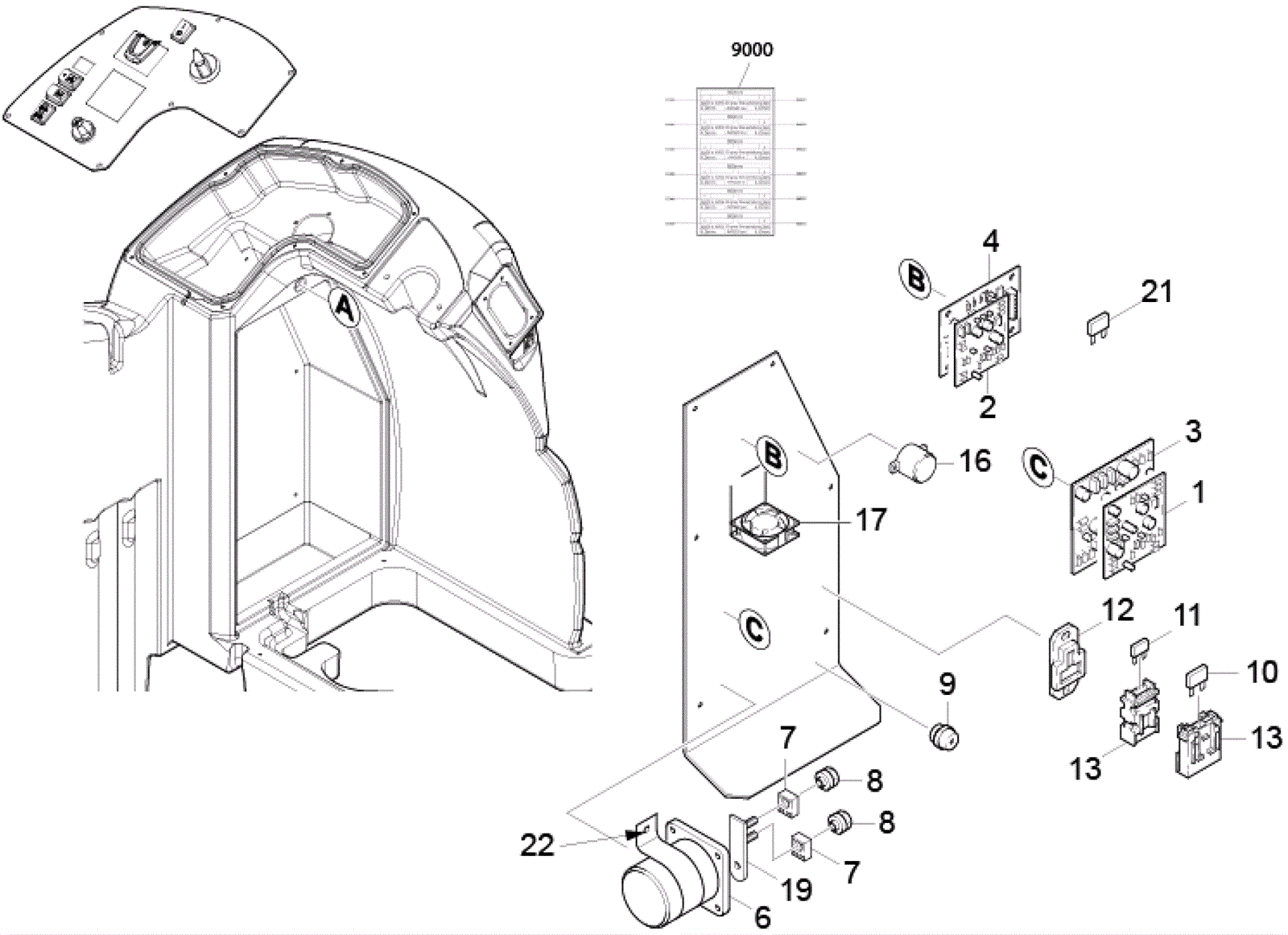

B 250 Electronic Control Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-9377 Control circuit board drive module $5,005.00 1 usually ships 7-19 days
2 273-9378 Control circuit board lifting module $1,081.30 2 usually ships 7-19 days
3 273-8395 Circuit control board $2,436.50 1 usually ships 7-19 days
4 273-8400 Circuit control board accessory module $1,182.50 1 usually ships 7-19 days
6 273-9379 Relay $482.90 1 usually ships 7-19 days
7 273-8396 Fuse $80.30 2 usually ships 7-19 days
8 273-9380 Nut with flange $87.45 2 usually ships 7-19 days
9 273-9381 Isolator $27.94 1 usually ships 7-19 days
10 273-9382 Fuse insert $9.08 1 usually ships 7-19 days
11 273-9383 Fuse insert $9.19 1 usually ships 7-19 days
12 273-9384 Plate $5.50 1 usually ships 7-19 days
13 273-9385 Fuse holder $5.17 2 usually ships 7-19 days
16 273-9386 Buzzer with brush $58.30 1 usually ships 7-19 days
17 273-9387 12V blower $150.70 1 usually ships 7-19 days
19 273-9388 Fuse plate replacement $84.70 1 usually ships 7-19 days
21 273-9390 Adapter cable lifting module Call for price 1 usually ships 7-19 days
22 273-9391 Connecting cable potential equalization Call for price 1 usually ships 7-19 days
9000 273-9392 Six-pole cable bus Call for price 1 usually ships 7-19 days
N/S 273-9389 Bus and control cable Call for price 1 usually ships 7-19 days
