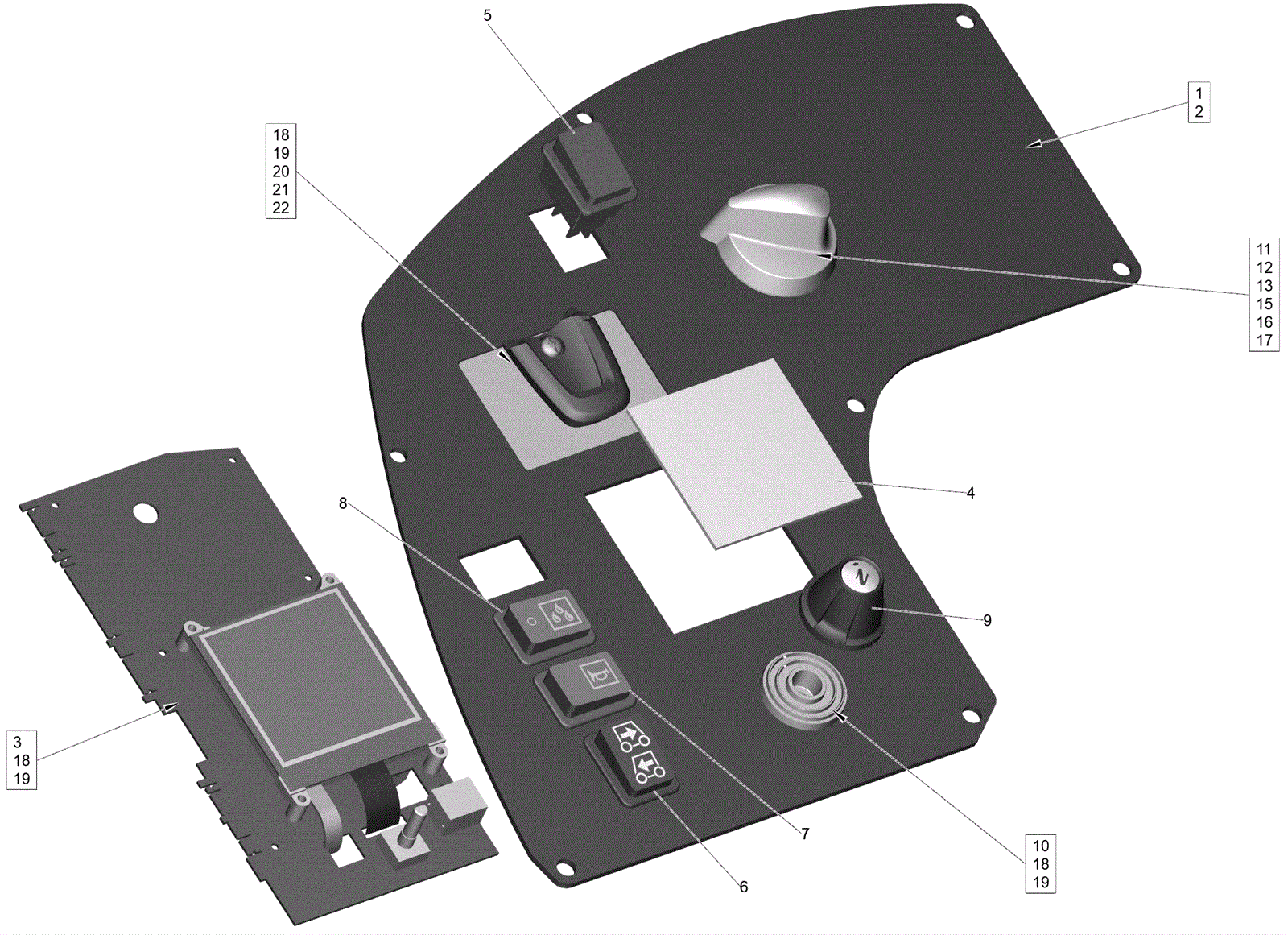

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-9356
|
Control panel covering cap |
1 |
|
|
2 |
273-9357
|
Control panel foil |
1 |
|
|
3 |
273-9358
|
Circuit board replacement |
1 |
|
|
4 |
273-9359
|
Vision panel display |
1 |
|
|
5 |
273-9360
|
Main switch |
1 |
|
|
6 |
273-9361
|
Directional switch |
1 |
|
|
7 |
273-9362
|
Push button two pole hooter |
1 |
|
|
8 |
273-9363
|
Water switch |
1 |
|
|
9 |
273-9364
|
Info panel |
1 |
|
|
10 |
273-9365
|
Button housing |
1 |
|
|
11 |
273-9366
|
O-ring seal |
1 |
|
|
12 |
273-9367
|
Retainer switch |
1 |
|
|
13 |
273-9368
|
Knob w/ spring clip |
1 |
|
|
15 |
273-9369
|
Program selection switch |
1 |
|
|
16 |
273-9370
|
Toothed lock washer |
3 |
|
|
17 |
999-1619
|
Nut M4 hex stainless steel |
3 |
|
|
18 |
999-1419
|
Nut M3-.5 hex stainless steel |
12 |
|
|
19 |
273-9209
|
Serrated lock washer |
12 |
|
|
20 |
273-9371
|
Carrier plate key |
1 |
|
|
21 |
273-9372
|
Guide key |
1 |
|
|
22 |
273-9373
|
Screw 5 x 12 |
1 |
|
|
N/S |
273-9374
|
O-ring seal |
1 |
|
|
N/S |
273-9375
|
Control panel cable harness |
1 |
|
|
