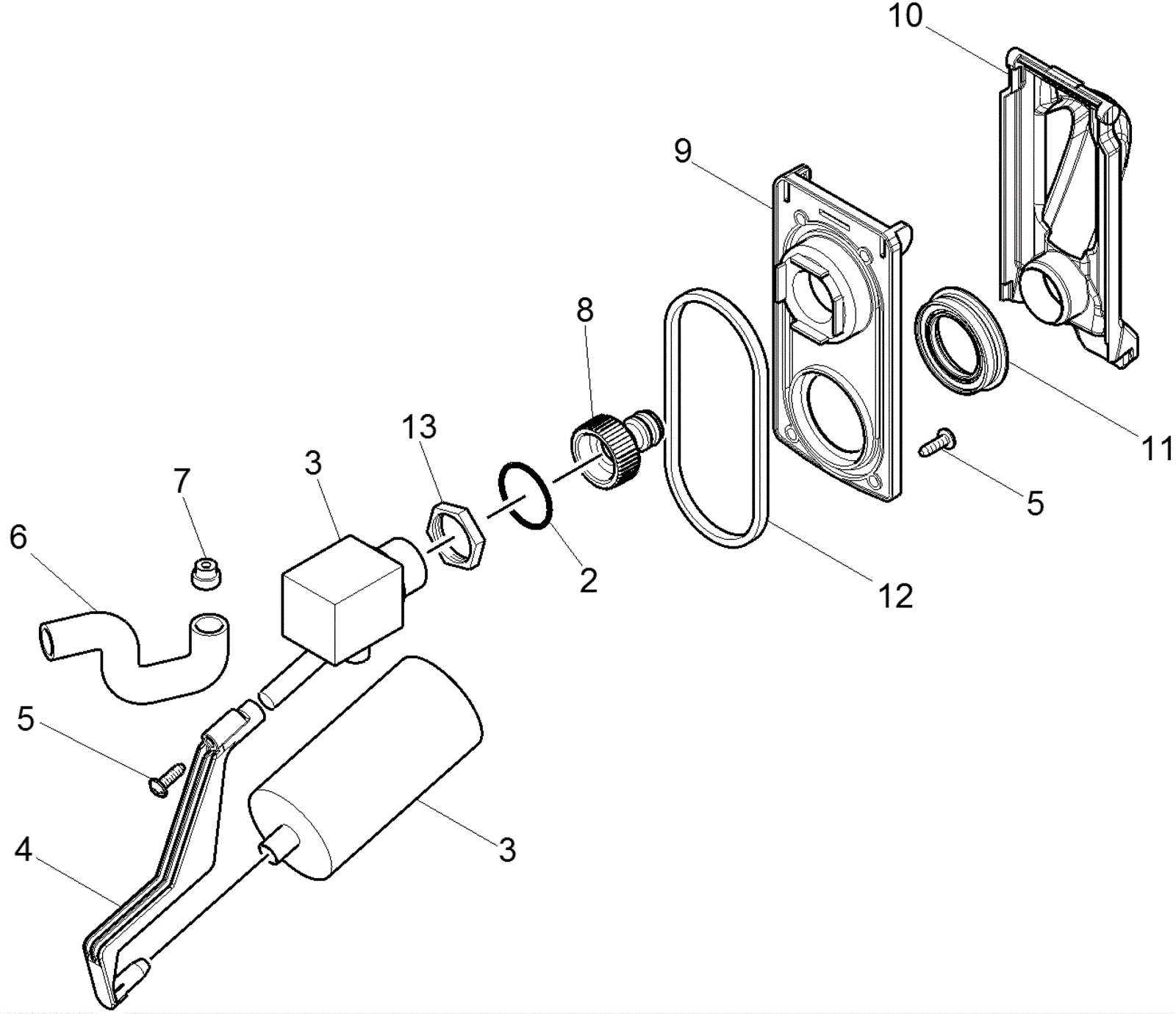

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
273-9346
|
O-ring seal |
1 |
|
|
3 |
273-9347
|
Float regulator filling system |
1 |
|
|
4 |
273-9348
|
Extension float |
1 |
|
|
5 |
183-0075
|
Screw 5-16 x 10.9mm |
5 |
|
|
6 |
273-9349
|
Form hose |
1 |
|
|
7 |
273-9350
|
Sleeve |
1 |
|
|
8 |
273-8517
|
Connection |
1 |
|
|
9 |
273-9351
|
Float fixing plate |
1 |
|
|
10 |
273-9352
|
Float cover plate (yellow) |
1 |
|
|
11 |
273-9353
|
Float cover joint ring |
1 |
|
|
12 |
273-9354
|
Fixing plate seal |
1 |
|
|
13 |
273-9355
|
Nut 3/4 inch |
1 |
|
|
