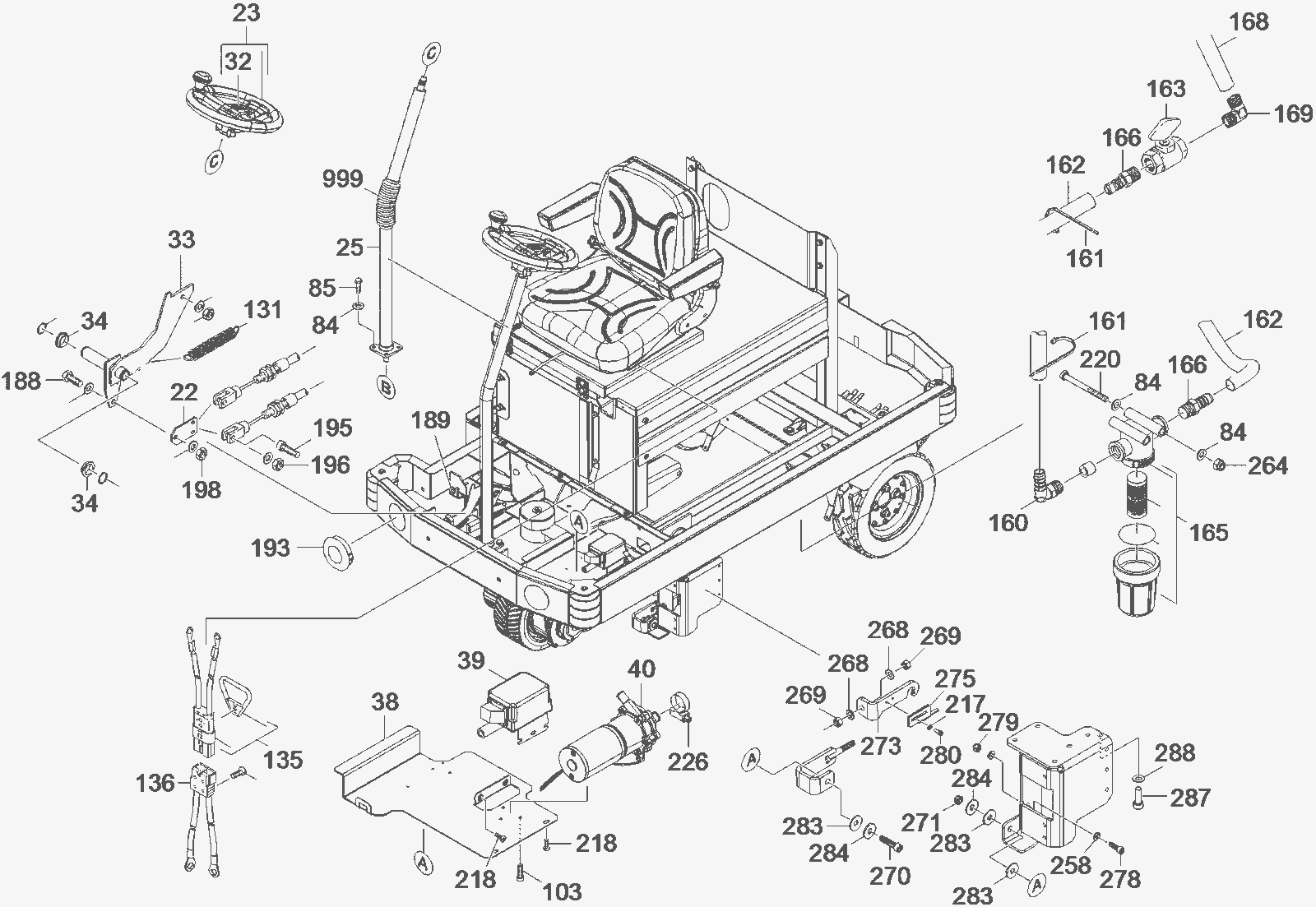

Carriage Assembly 4

#PartDescription ReqNotesAvailability
22 273-9296 Plate 1
23 273-9297 Steering wheel with handle 1 (includes 32)
25 273-9298 Steering pillar 1
32 273-3220 Steering wheel cap 1
33 273-9299 Brake pedal lever 1
34 273-8135 Plain bearing 4
38 273-9300 Pump ball valve plate 1
39 273-9301 Ball valve short analog 1
40 273-9302 Fresh water pump replacement 1
84 999-9097 Washer M8 flat stainless steel 15
85 273-9257 Screw M10 x 20 hex head 8
103 273-9303 Screw M4 x 12 3
131 273-9304 Extension spring 1
135a 273-9305 Connection cable 1 (red plug)
135b 273-9306 Battery connection cable harness 1 (gray plug)
136a 273-9307 Charging cable 1 (red plug)
136b 273-9308 Main power supply cable harness 1 (gray plug)
160 273-9309 Angle bushing 1
161 173-9063 Holder 8
162 273-5847 Spiral hose (sold by the inch) 8.7 inches
163 273-9310 1/2 inch stop cock 1
165 273-7795 Filter assembly 1
166 273-9325 1/2 inch hose stem 2
168 273-3667 Hose 8 inches
169 273-9311 1/2 inch elbow screw connector 1
188 273-8159 Screw M8 x 16 hex head 1
189 999-9202 Screw M8-1.25 x 65 hex zinc 1
193 273-9313 Cap 2
195 999-1320 Screw M6-1 x 20mm socket head stainless steel 4
196 273-6081 Nut M6-4 hex 6
198 183-0341 Hex nut 3
217 999-1261 Washer M6 flat stainless steel 9
218 273-7023 Screw M6 x 12 4
220 273-9315 Screw M8 x 90 2
226 273-9316 Hose clip 1
258 273-6016 Washer 8
264 273-7139 Nut M8-8 hex 6
268 273-6417 Washer 4
269 273-2055 Nut 4
270 273-9317 Screw M12 x 50 cylinder head 2
271 999-0503 Nut M12-1.75 hex stainless steel 2
273 273-9319 Left hand tie rod 1
275 273-9320 Left hand locking part 1
278 273-9321 Screw M10 x 30 cylinder head 4
279 999-6697 Nut M10-1.5 hex stainless steel 4
280 183-0093 Screw M6-1 x 16mm 4
283 273-9323 Washer 6
284 273-8317 Washer 4
287 273-9324 Screw M10 x 30 cylinder head 8
288 273-6016 Washer 10
999 273-9327 Bellows replacement 1
