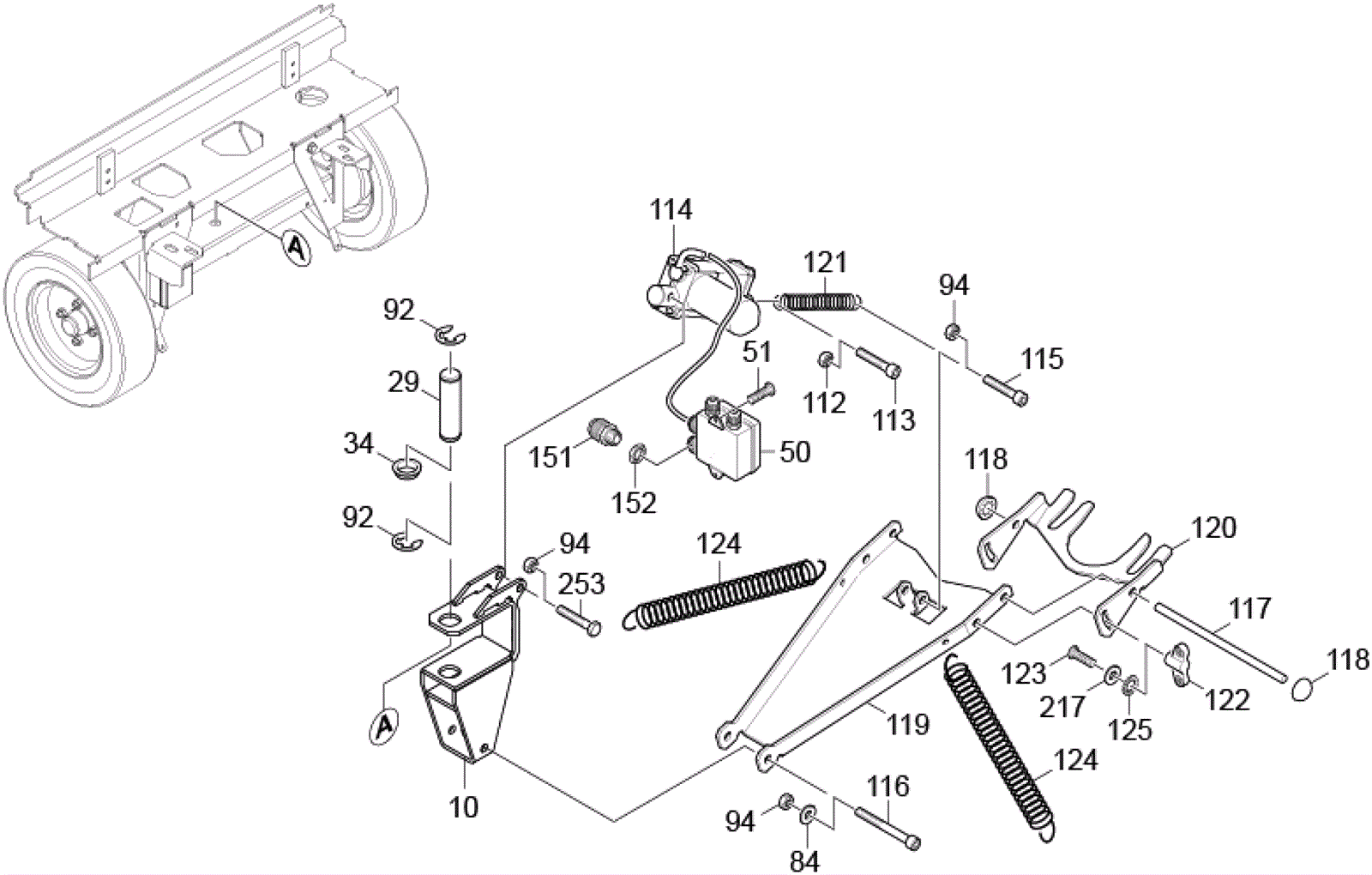

| # | Part | Description |
Req | Notes | Availability |
|---|
10 |
273-9283
|
Suction bar holder |
1 |
|
|
29 |
273-9284
|
Retraction bolt suction beam |
1 |
|
|
34 |
273-8135
|
Plain bearing |
4 |
|
|
50 |
273-9285
|
Distribution box |
1 |
|
|
51 |
173-6287
|
Screw M5 x 16mm (OBSOLETE) |
3 |
|
|
84 |
999-9097
|
Washer M8 flat stainless steel |
15 |
|
|
92 |
183-0372
|
Washer |
2 |
|
|
94 |
273-7139
|
Nut M8-8 hex |
17 |
|
|
112 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
|
113 |
173-5898
|
Screw M6 x 30mm cylinder head |
1 |
|
|
114 |
273-9286
|
36V hoisting motor |
1 |
|
|
115 |
273-9287
|
Screw M8 x 40-8.8 |
1 |
|
|
116 |
273-9288
|
Screw M8 x 70-8.8 |
1 |
|
|
117 |
183-0342
|
Bar |
1 |
|
|
118 |
173-6305
|
Lock washer |
2 |
|
|
119 |
273-9289
|
Sheet metal component |
1 |
|
|
120 |
273-9290
|
Rocker suction bar |
1 |
|
|
121 |
273-9291
|
Extension spring |
1 |
|
|
122 |
273-9292
|
M6 wing nut |
2 |
|
|
123 |
183-0343
|
Screw |
2 |
|
|
124 |
273-9293
|
Extension spring |
2 |
|
|
125 |
273-9294
|
Toothed lock washer |
2 |
|
|
151 |
273-9295
|
Cable gland |
5 |
|
|
152 |
273-8525
|
Lock nut |
5 |
|
|
217 |
999-1261
|
Washer M6 flat stainless steel |
9 |
|
|
253 |
273-8130
|
Screw M8 x 45 hex head |
1 |
|
|
