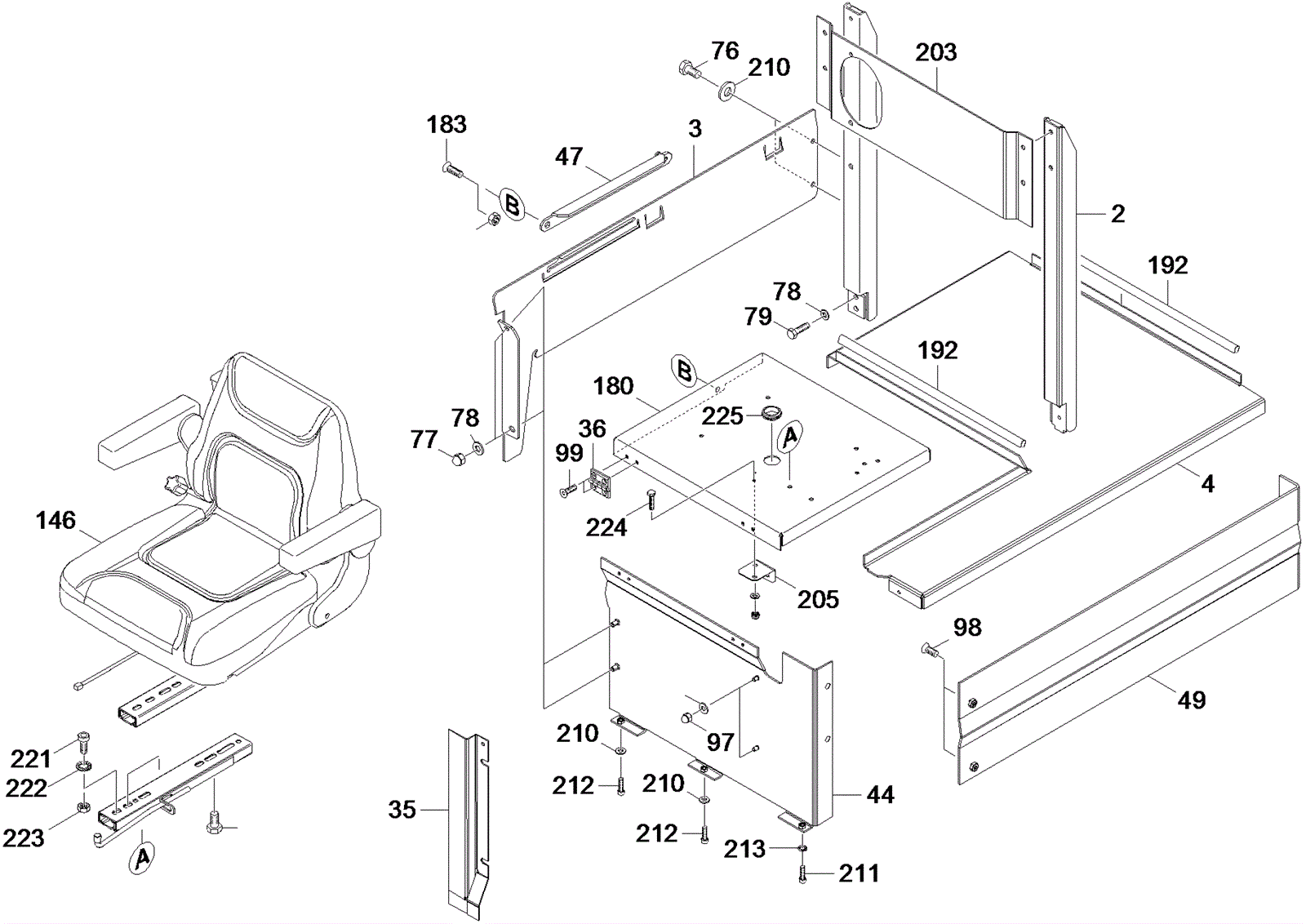

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
273-9264
|
Support plate |
2 |
|
|
3 |
273-9265
|
Stay plate |
1 |
|
|
4 |
273-9266
|
Battery cover plate |
1 |
|
|
35 |
273-9267
|
Plate |
1 |
|
|
36 |
273-9268
|
Hinge |
2 |
|
|
44 |
273-9269
|
Seat plate |
1 |
|
|
47 |
273-9270
|
Lever |
1 |
|
|
49 |
273-9271
|
Stay plate |
1 |
|
|
76 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
4 |
|
|
77 |
373-1744
|
Nut |
2 |
|
|
78 |
273-6016
|
Washer |
18 |
|
|
79 |
273-9272
|
Screw M10 x 25-8.8 hex head |
8 |
|
|
98 |
273-9273
|
Screw M10 x 16 countersunk |
2 |
|
|
99 |
373-1466
|
Screw M6 x 16mm |
8 |
|
|
146 |
273-9274
|
Comfort seat |
1 |
|
|
180 |
273-9275
|
Seat plate |
1 |
|
|
183 |
273-5822
|
Screw M8 x 16mm countersunk |
1 |
|
|
192 |
273-9278
|
Edge protection |
2 |
|
|
203 |
273-9279
|
Plate |
1 |
|
|
205 |
273-9280
|
Plate |
1 |
|
|
210 |
173-6204
|
Washer 8M |
10 |
|
|
211 |
273-7847
|
Screw M8 x 20mm cylinder head |
1 |
|
|
212 |
183-7547
|
Screw |
2 |
|
|
213 |
173-9882
|
Washer serrated lock |
1 |
|
|
221 |
273-3640
|
Screw |
4 |
|
|
222 |
173-9882
|
Washer serrated lock |
4 |
|
|
223 |
999-1651
|
Nut M8-1 hex stainless steel |
4 |
|
|
224 |
273-8086
|
Screw M6 x 25 hex head |
2 |
|
|
225 |
273-9282
|
Wire protecting sleeve |
1 |
|
|
