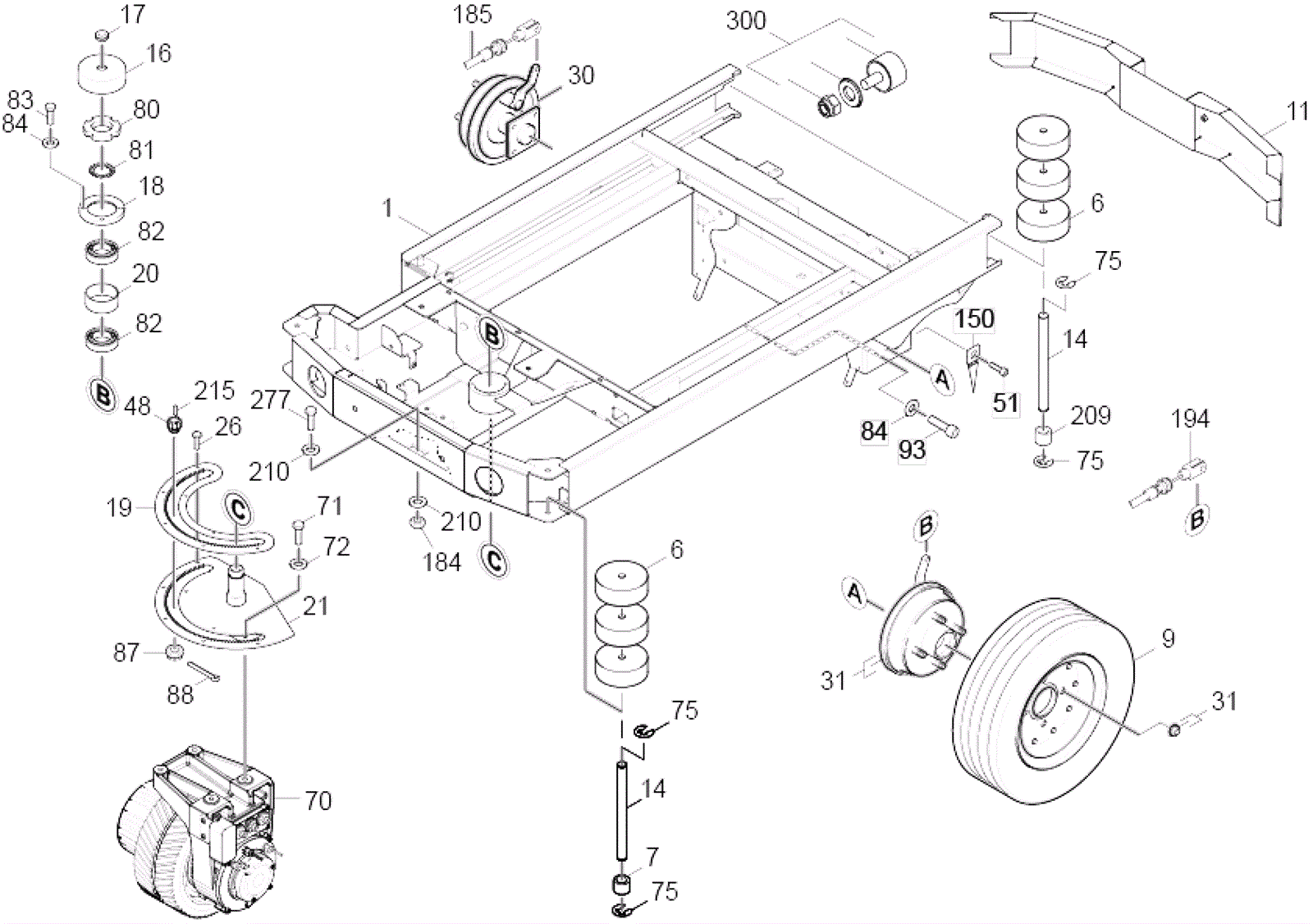

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-9239
|
Frame |
1 |
|
|
6 |
183-0289
|
Roller wheel |
12 |
|
|
7 |
273-9240
|
Sleeve |
2 |
|
|
9a |
273-9241
|
Super grip rear wheel |
2 |
|
|
9b |
273-8555
|
Rear wheel assembly |
2 |
|
|
11 |
273-9242
|
Rear panel closing |
1 |
|
|
14 |
273-9243
|
Bolt |
4 |
|
|
16 |
273-9244
|
Cover |
1 |
|
|
17 |
273-9245
|
Wire protecting sleeve |
1 |
|
|
18 |
273-9246
|
Flange |
1 |
|
|
19 |
273-9247
|
Segment steering plate |
1 |
|
|
20 |
273-9248
|
Steering sleeve |
1 |
|
|
21 |
273-9249
|
Flanged bearing |
1 |
|
|
26 |
273-9250
|
Screw M6 x 16 hex head |
7 |
|
|
30 |
273-9251
|
Right hand wheel brake |
1 |
|
|
31 |
273-9252
|
Left hand wheel brake |
1 |
|
|
48 |
273-9253
|
Gear wheel |
1 |
|
|
51 |
173-6287
|
Screw M5 x 16mm (OBSOLETE) |
3 |
|
|
70 |
273-3609
|
Drive wheel |
1 |
|
|
71 |
273-9254
|
Screw M12 x 30 hex head |
4 |
|
|
72 |
173-6333
|
Washer |
20 |
|
|
75 |
273-7031
|
Lock washer |
8 |
|
|
80 |
273-9255
|
Nut KM8 slotted |
1 |
|
|
81 |
273-9256
|
Locking plate |
1 |
|
|
82 |
273-8095
|
Ball bearing |
2 |
|
|
83 |
273-9238
|
Screw M8 x 30 hex head |
4 |
|
|
84 |
999-9097
|
Washer M8 flat stainless steel |
15 |
|
|
87 |
183-7460
|
Castel nut |
1 |
|
|
88 |
183-7459
|
Cotter pin |
1 |
|
|
93 |
273-8267
|
Screw M8 x 30 socket head |
8 |
|
|
150 |
273-9258
|
Grounding tongue |
1 |
|
|
184 |
999-1651
|
Nut M8-1 hex stainless steel |
8 |
|
|
185 |
273-9259
|
Left hand bowden brake wire |
1 |
|
|
194 |
273-9260
|
Right hand brake wire |
1 |
|
|
209 |
273-9261
|
Bushing |
2 |
|
|
210 |
173-6204
|
Washer 8M |
10 |
|
|
215 |
273-9262
|
Parallel key |
1 |
|
|
277 |
183-4164
|
Screw, hex head (Obsolete) |
2 |
|
|
300 |
273-9263
|
Buffer bracket conversion kit (rubber) |
1 |
|
|
N/S |
273-8137
|
Locking ring |
2 |
|
|
N/S |
273-9548
|
Cap nut |
2 |
|
|
N/S |
173-6297
|
Washer |
2 |
|
|
N/S |
273-5847
|
Spiral hose (sold by the inch) |
1 |
|
|
N/S |
273-3667
|
Hose |
24 in |
|
|
N/S |
273-9549
|
Sealing tape |
1 |
|
|
