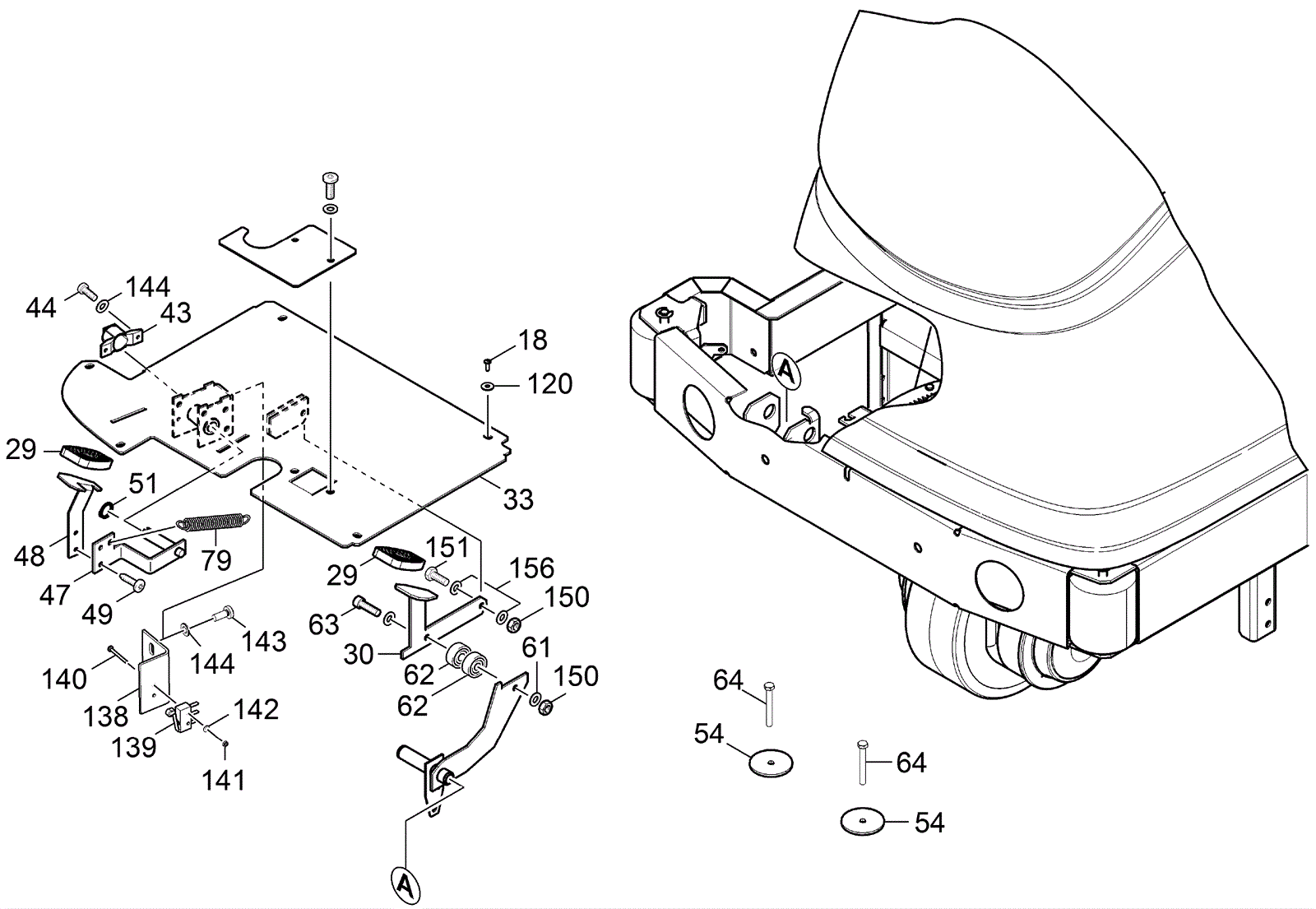

| # | Part | Description |
Req | Notes | Availability |
|---|
18 |
183-0075
|
Screw 5-16 x 10.9mm |
17 |
|
|
29 |
273-9221
|
Pedal coating |
2 |
|
|
30 |
273-9222
|
Brake pedal plate |
1 |
|
|
33 |
273-9223
|
Bottom plate complete |
1 |
|
|
43 |
273-9224
|
Sensor control system |
1 |
|
|
44 |
183-0323
|
Screw M5-.8 x 10mm stainless steel |
2 |
|
|
47 |
273-9225
|
Pedal lever |
1 |
|
|
48 |
273-9226
|
Pedal plate |
1 |
|
|
49 |
273-5829
|
Screw M6-1 x 16mm stainless steel |
4 |
|
|
51 |
173-6200
|
Locking ring 16 x 1 |
1 |
|
|
54 |
273-9227
|
Plate |
2 |
|
|
61 |
273-8151
|
Washer |
2 |
|
|
62 |
173-6208
|
Ball bearing |
2 |
|
|
63 |
273-9228
|
Screw M8 x 35 cylinder head |
1 |
|
|
64 |
999-6709
|
Screw M10-1.5 x 80mm hex head stainless steel |
2 |
|
|
79 |
273-9230
|
Extension spring |
1 |
|
|
120 |
273-9231
|
Washer |
5 |
|
|
138 |
273-9232
|
Angle plate |
1 |
|
|
139 |
273-9233
|
Micro switch |
1 |
|
|
140 |
273-9234
|
Screw M2 x 20 |
2 |
|
|
141 |
273-9235
|
Nut M 2-8 |
2 |
|
|
142 |
273-9236
|
Washer |
2 |
|
|
143 |
999-6690
|
Screw M5-.8 x 12mm hex head stainless steel |
2 |
|
|
144 |
999-9100
|
Washer M5 flat stainless steel |
4 |
|
|
150 |
183-0341
|
Hex nut |
2 |
|
|
151 |
273-9238
|
Screw M8 x 30 hex head |
1 |
|
|
156 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
