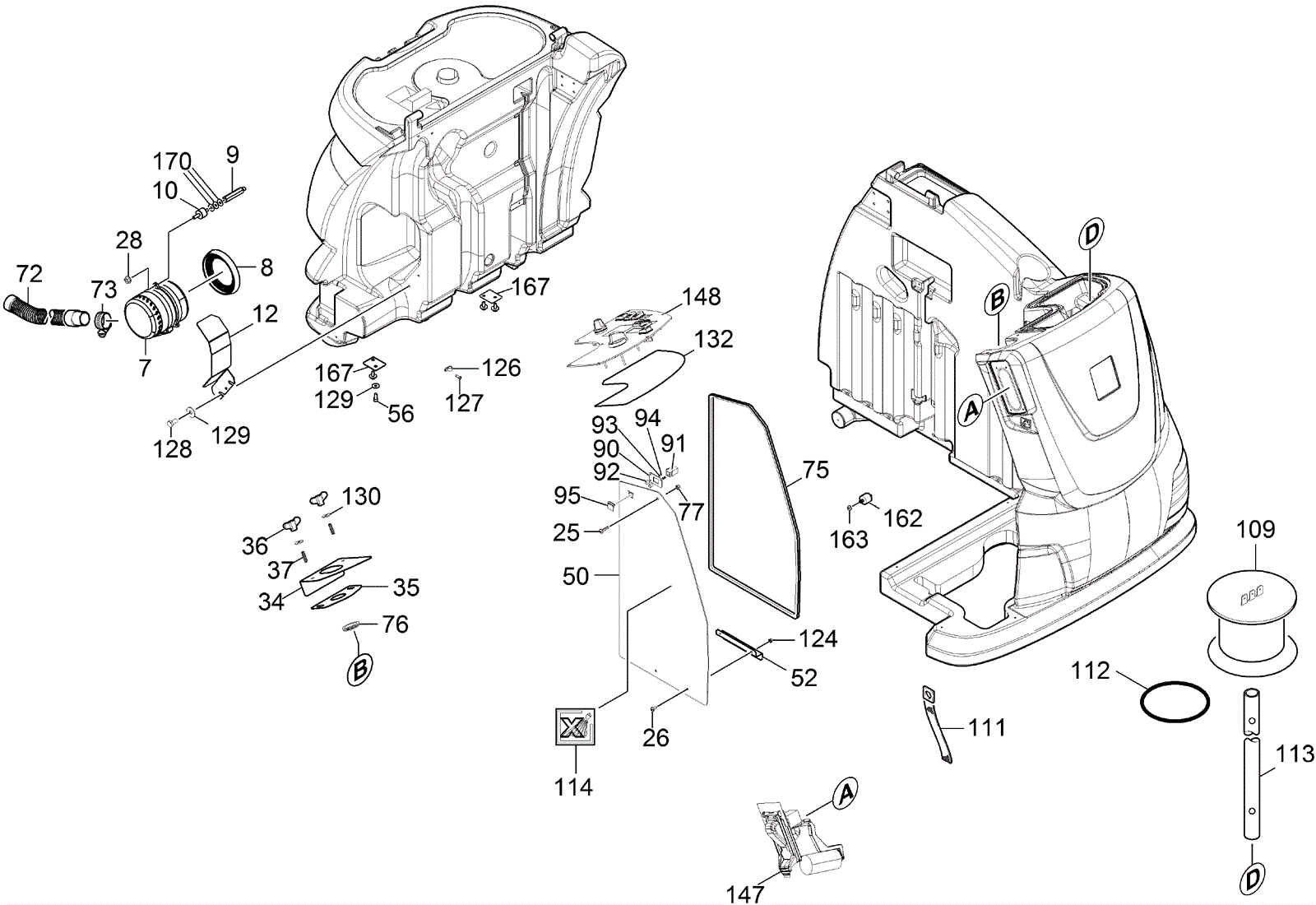

| # | Part | Description |
Req | Notes | Availability |
|---|
7 |
273-3644
|
36V vacuum motor low noise |
1 |
|
|
8 |
273-9197
|
Joint ring |
1 |
|
|
9 |
183-0077
|
Bolt |
3 |
|
|
10 |
273-7793
|
Rubber buffer |
3 |
|
|
12 |
273-9198
|
Covering cap turbine plate |
1 |
|
|
25 |
273-7457
|
Screw M6 x 25-8.8 |
1 |
|
|
26 |
273-7023
|
Screw M6 x 12 |
2 |
|
|
28 |
173-9058
|
Nut M6-8 hex |
3 |
|
|
34 |
273-9199
|
Bracket |
1 |
|
|
35 |
273-9220
|
Plate |
1 |
|
|
36 |
273-3611
|
Wing nut |
2 |
|
|
37 |
183-0415
|
Pin (threaded) |
2 |
|
|
50 |
273-9200
|
Electric box welded cover plate |
1 |
|
|
52 |
273-9201
|
Electric plate hook |
1 |
|
|
56 |
273-7847
|
Screw M8 x 20mm cylinder head |
4 |
|
|
72 |
173-9053
|
Suction tube |
1 |
|
|
73 |
273-9202
|
Hose clip |
1 |
|
|
75a |
273-9203
|
Sealing tape |
8 inches |
|
|
75b |
273-9204
|
Sealing profile |
1 |
|
|
76 |
273-9205
|
Wire protecting sleeve |
1 |
|
|
77 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
|
90 |
273-9206
|
Service brush retaining plate |
1 |
|
|
91 |
273-9207
|
Adapter |
1 |
|
|
92 |
273-9208
|
Sleeve |
2 |
|
|
93 |
273-9209
|
Serrated lock washer |
2 |
|
|
94 |
999-1419
|
Nut M3-.5 hex stainless steel |
2 |
|
|
95 |
273-9210
|
Rubber stopper |
1 |
|
|
109 |
273-9211
|
Water level sensor |
1 |
|
|
111 |
273-9212
|
Earth strap |
1 |
|
|
112 |
273-9213
|
O-ring |
1 |
|
|
113 |
273-9214
|
Tank sensor tube |
1 |
|
|
114 |
273-8163
|
Warning sign decal |
1 |
|
|
124 |
273-6081
|
Nut M6-4 hex |
4 |
|
|
126 |
273-9215
|
Pipe clamp |
3 |
|
|
127 |
183-0281
|
Screw |
3 |
|
|
128 |
273-8159
|
Screw M8 x 16 hex head |
2 |
|
|
129 |
173-6204
|
Washer 8M |
6 |
|
|
130 |
273-8187
|
Washer |
2 |
|
|
132 |
173-9040
|
Rubber seal string |
1 |
|
|
147 |
273-9216
|
Auto-fill-in |
1 |
|
|
148 |
273-9217
|
Control panel |
1 |
|
|
162 |
273-9218
|
Rubber buffer |
6 |
|
|
163 |
173-9058
|
Nut M6-8 hex |
6 |
|
|
167 |
273-9219
|
Plate spacer |
2 |
|
|
170 |
173-5899
|
Washer |
9 |
|
|
