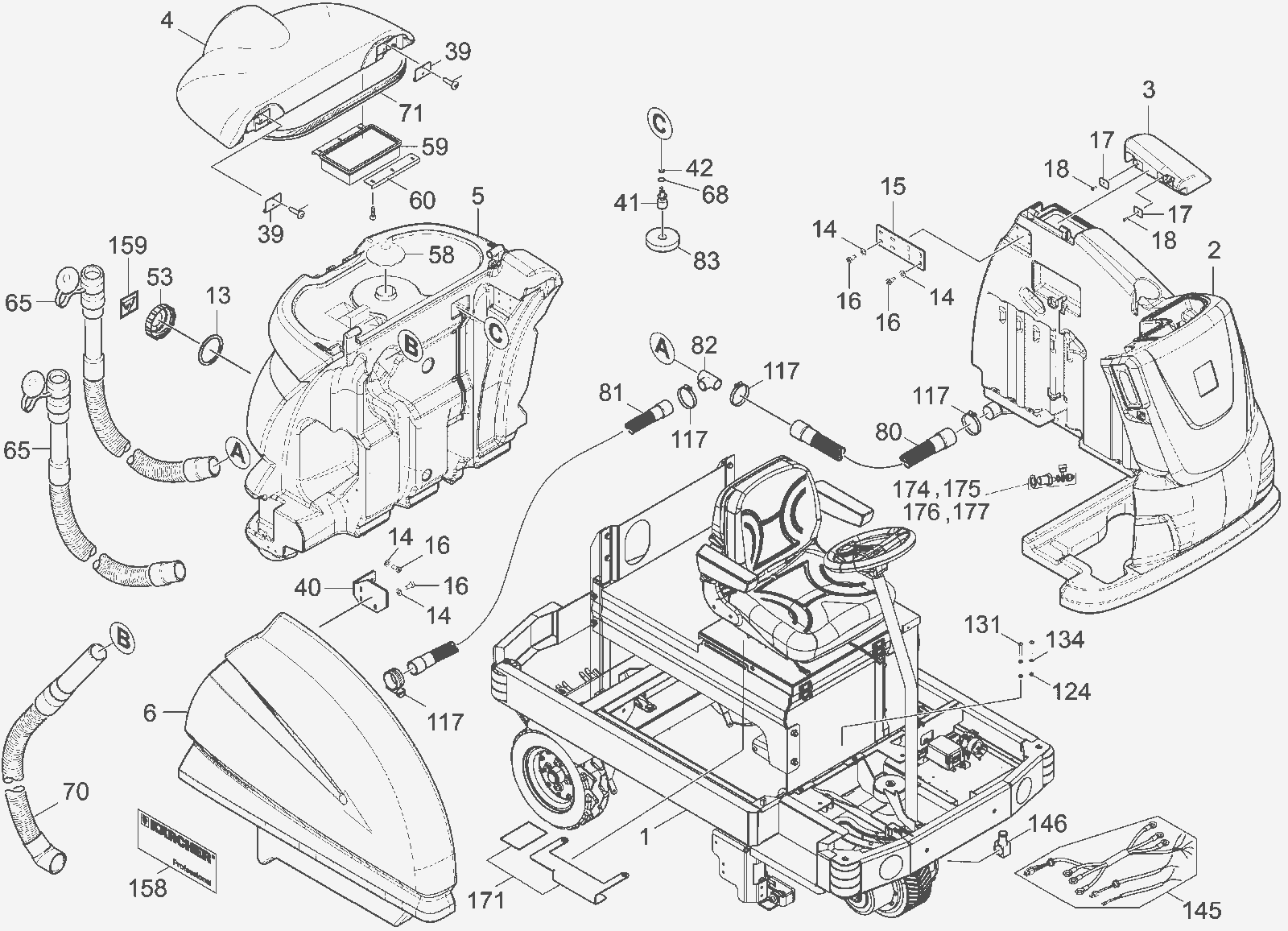

Housing Assembly 1

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (carriage)
2 273-9171 Fresh water tank 1
3 273-9172 Fresh water tank cover 1
4 273-9173 Waste water tank cover 1
5 273-9174 Waste water tank 1
6 273-9175 Side 1
13 273-3608 Seal 1
14 999-0150 Washer #8 medium split lock 13
15 273-9176 Sheet metal connection 1
16 273-3640 Screw 13
17 273-9177 Retaining plate 2
18 183-0075 Screw 5-16 x 10.9mm 17
39 273-9178 Retaining plate 2
40 273-9179 Connection plate 1
41 373-1413 Float regulator 1
42 273-9180 Locknut 1
53 273-3607 Cap 1
58 273-9181 Rain top 1
59 273-3614 Filter 1
60 273-9182 Filter halter plate 2
65 273-9183 Drain hose 2
68 273-9184 Flat gasket 1
70 273-7797 Suction hose 1
71 273-8633 Sealing profile (sold by the inch) 2.8
80 273-9185 350mm suction hose 1
81 273-9186 Hose 1
82 273-9187 T-piece pvc 1
83 273-7803 Float foam stop 1
117 273-9188 Hose clip 6
124 273-6081 Nut M6-4 hex 4
131 273-6057 Screw M6-8.8 x 35mm (OBSOLETE) 2
134 173-6297 Washer 2
145 273-9189 Three phase drive cable harness 1
146 273-9190 Protecting cap 3
158 273-9191 Side decal 2
159 273-9192 Discharge water decal 2
171 273-9193 Guard plate complete conversion kit 1
174 273-9194 Reducing nipple 1
175 273-9184 Flat gasket 1
176 173-9882 Washer serrated lock 1
177 173-9058 Nut M6-8 hex 1
N/S 273-6490 Screw 4 x 16 4
N/S 273-9545 Tightening strap 1
N/S 373-1662 Decal 1
N/S 273-9546 Cable harness 1
N/S 273-9547 Edge protection 2
N/S 999-1651 Nut M8-1 hex stainless steel 1
N/S 173-9882 Washer serrated lock 1
