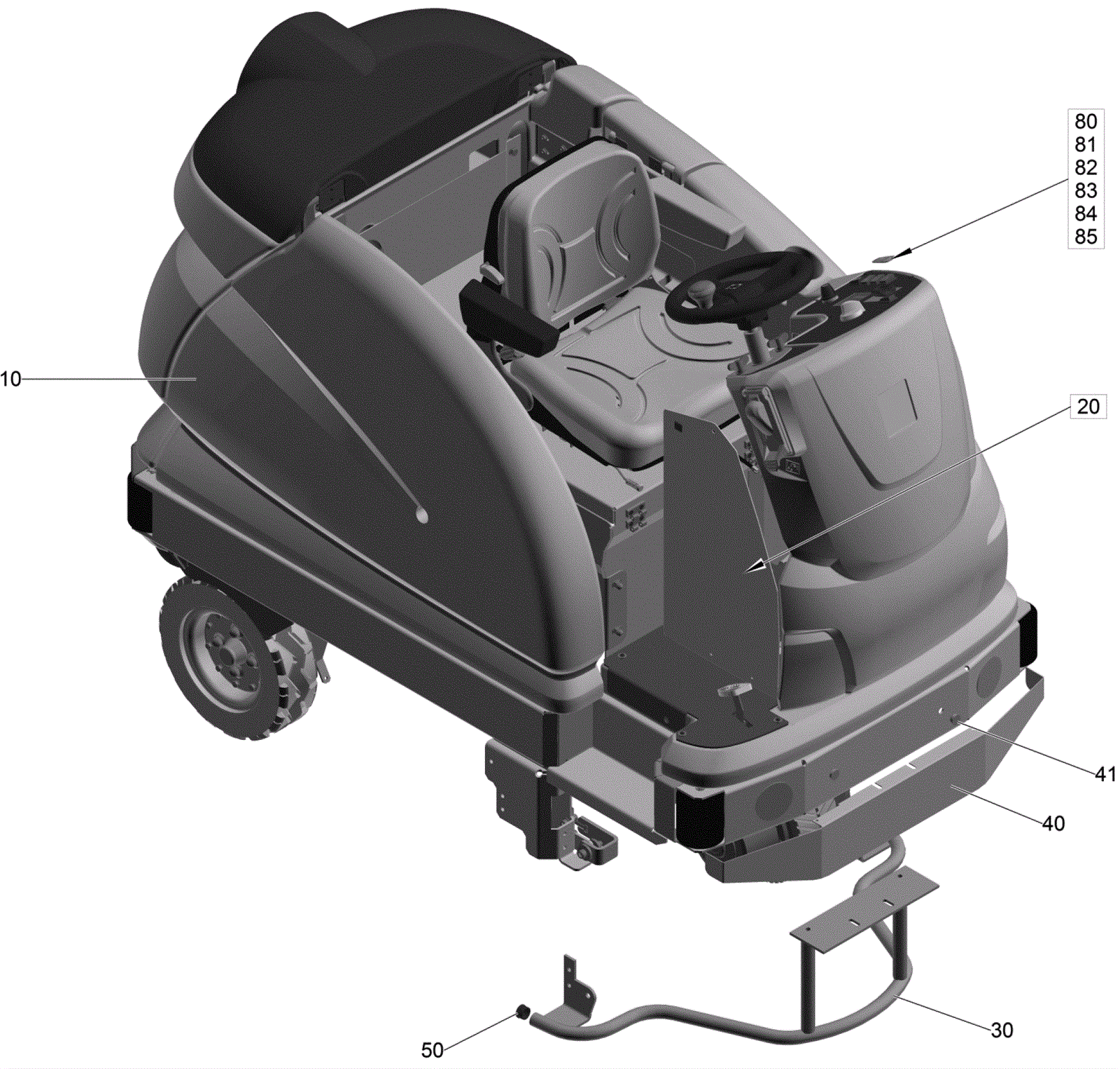

| # | Part | Description |
Req | Notes | Availability |
|---|
10 |
N/A
|
Not available |
1 |
(basic machinery) |
|
20 |
273-9161
|
Three phase drive electronic control |
1 |
|
|
30 |
273-9162
|
Ram protection |
1 |
|
|
40 |
273-9163
|
Ram protection plate |
1 |
|
|
41 |
273-9164
|
Protecting cap |
1 |
|
|
50 |
273-9165
|
Plug |
2 |
|
|
80a |
273-9166
|
Set key (yellow) |
1 |
(BP) |
|
80b |
273-9166
|
Set key (yellow) |
1 |
(BP and SB) |
|
81 |
273-9167
|
Key (grey) |
1 |
|
|
82 |
273-9168
|
Set key (white) |
1 |
|
|
83 |
273-9169
|
Key (white) |
1 |
|
|
84 |
273-9166
|
Set key (yellow) |
1 |
(SB) |
|
85 |
273-3598
|
Key (red) (OBSOLETE) |
1 |
(SB) |
|
