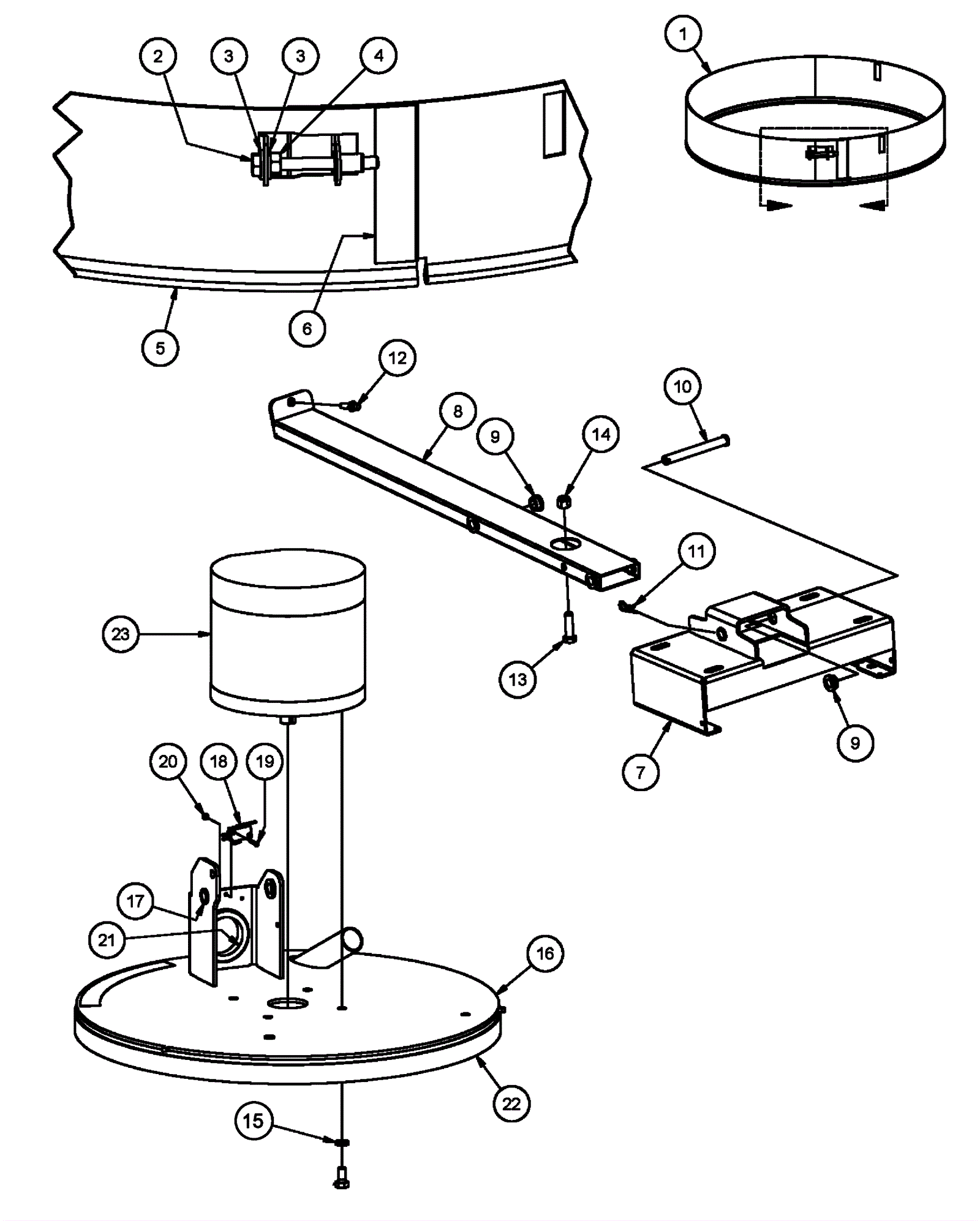

LIGHTNING BDP 50/2000 Subassemblies Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-3011 20 inch skirt assembly steel $343.20 1 usually ships 7-19 days
2 999-1279 Bolt 1/4-20 x 2 1/2 tap full thread zinc plated $0.99 1 ships same day
3 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
4 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
5 273-3066 20 inch skirt edging $7.87 6ft usually ships 7-19 days
6 273-3067 Velcro $14.85 2 usually ships 7-19 days
7 273-3068 Transaxle/axle mount bracket (OBSOLETE) Call for price 1 usually ships 7-19 days
8 273-3069 Shroud tube mount weldment $393.88 1 usually ships 7-19 days
9 273-3070 Flanged bushing 1/2 x 3/8 $1.39 6 usually ships 7-19 days
10 173-9596 Clevis pin 1/2 X 4-1/2 inch $3.63 1 usually ships 7-19 days
11 273-3003 Presto pin 3/32 x 1 5/8 stainless steel $0.99 1 usually ships 7-19 days
12 273-3071 10MM ball stud $1.03 1 usually ships 7-19 days
13 999-0372 Bolt 1/2-13 x 1 3/4 hex head $0.99 1 ships same day
14 273-3072 20 inch lock nut (OBSOLETE) Call for price 1 usually ships 7-19 days
15 273-3073 Washer 3/8 lock (OBSOLETE) Call for price 4 usually ships 7-19 days
16 273-3074 20 inch shroud assembly (OBSOLETE) Call for price 1 usually ships 7-19 days
17 273-3070 Flanged bushing 1/2 x 3/8 $1.39 2 usually ships 7-19 days
18 273-3063 12V 15amp micro switch with 1 inch lever $72.99 1 usually ships 7-19 days
19 999-6708 Screw #4-40 x 3/4 round head phillips stainless steel $0.99 2 usually ships 11-24 days
20 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 2 ships same day
21 273-3076 2 inch grommet (OBSOLETE) Call for price 1 usually ships 7-19 days
22 273-3077 1 inch velcro loop $18.81 6ft usually ships 7-19 days
23 273-3078 2000 RPM motor assembly $2,002.00 1 usually ships 7-19 days
