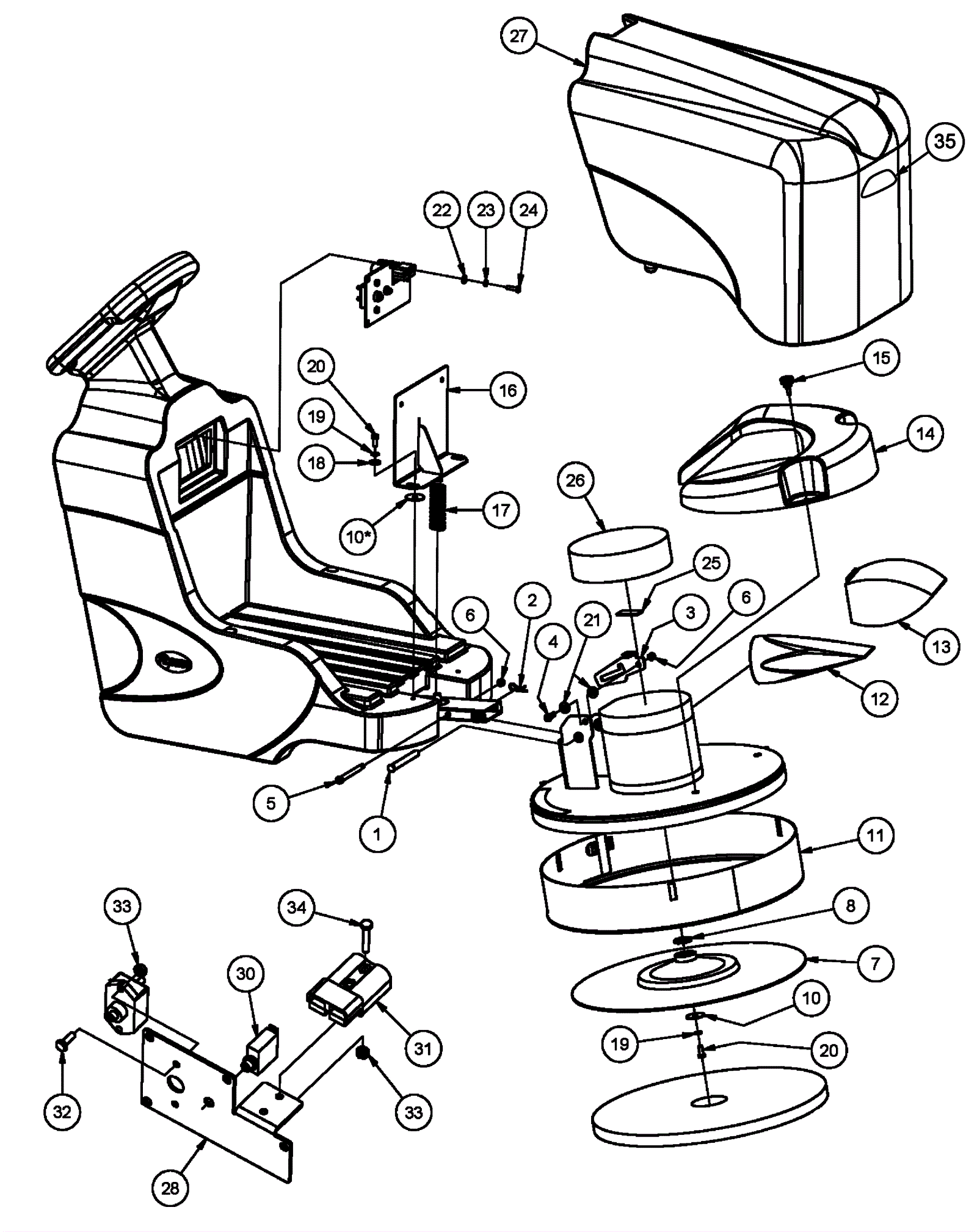

LIGHTNING BDP 50/2000 Pad Driver Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-9596 Clevis pin 1/2 X 4-1/2 inch $3.63 1 usually ships 7-19 days
2 273-3003 Presto pin 3/32 x 1 5/8 stainless steel $0.99 1 usually ships 7-19 days
3 273-3004 Latch (OBSOLETE) Call for price 1 usually ships 7-19 days
4 273-3005 Shoulder screw 3/8 x 1/2 inch (OBSOLETE) Call for price 1 usually ships 7-19 days
5 999-1535 Screw 5/16-18 x 3/8 x 3 1/2 shoulder plain finish $8.16 1 usually ships 1-5 days
6 273-3007 Nut 5/16-18 inches $0.99 2 usually ships 7-19 days
7 273-8597 20 inch pad holder w/pad retainer $311.30 1 usually ships 7-19 days
8 999-9114 Washer 3/4 flat stainless steel $1.58 1 ships same day
10 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
11 273-3011 20 inch skirt assembly steel $343.20 1 usually ships 7-19 days
12 273-3012 Cloth dust bag $192.50 2 usually ships 7-19 days
13 273-3013 Paper dust bag (pkg of 2) $29.04 1 usually ships 7-19 days
14 273-3014 Dust bag cover $134.20 1 usually ships 7-19 days
15 173-9596 Clevis pin 1/2 X 4-1/2 inch $3.63 2 usually ships 7-19 days
16 273-3016 Battery weldment retainer (OBSOLETE) Call for price 1 usually ships 7-19 days
17 273-3017 Compression spring (OBSOLETE) $72.60 1 usually ships 7-19 days
18 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
19 273-3019 Washer 5/16 inch lock (OBSOLETE) Call for price 3 usually ships 7-19 days
20 273-3020 Screw 5/16-18 x 3/4 inch cap (OBSOLETE) Call for price 3 usually ships 7-19 days
21 999-9128 Washer 3/8 SAE flat stainless steel $2.11 2 ships same day
22 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
23 273-3023 Washer 1/4 inch lock (OBSOLETE) Call for price 4 usually ships 7-19 days
24 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 4 ships same day
25 273-3025 1 inch velcro hook with adhesive $6.99 2" usually ships 7-19 days
26 273-3026 7.75 inch motor dust filter $78.10 1 usually ships 7-19 days
27a 273-3027 Battery cover with karcher decal $523.60 1 usually ships 7-19 days
27b 273-3028 Battery cover (OBSOLETE) $548.90 1 usually ships 7-19 days
28 273-3029 Battery mount plug plate (OBSOLETE) Call for price 1 usually ships 7-19 days
30 273-3031 40amp circuit breaker $43.78 1 usually ships 7-19 days
31 273-3032 2 guage battery cable assembly (OBSOLETE) Call for price 1 usually ships 7-19 days
32 273-3033 Screw 1/4-20 x 1 1/2 inch hex head cap (OBSOLETE) Call for price 2 usually ships 7-19 days
33 273-3034 Nut 1/4-20 (OBSOLETE) Call for price 4 usually ships 7-19 days
34 273-3035 Capped screw 1/4-20 x 1 1/2 inch (OBSOLETE) Call for price 2 usually ships 7-19 days
35 273-7239 Logo decal $34.32 1 usually ships 1-5 days
