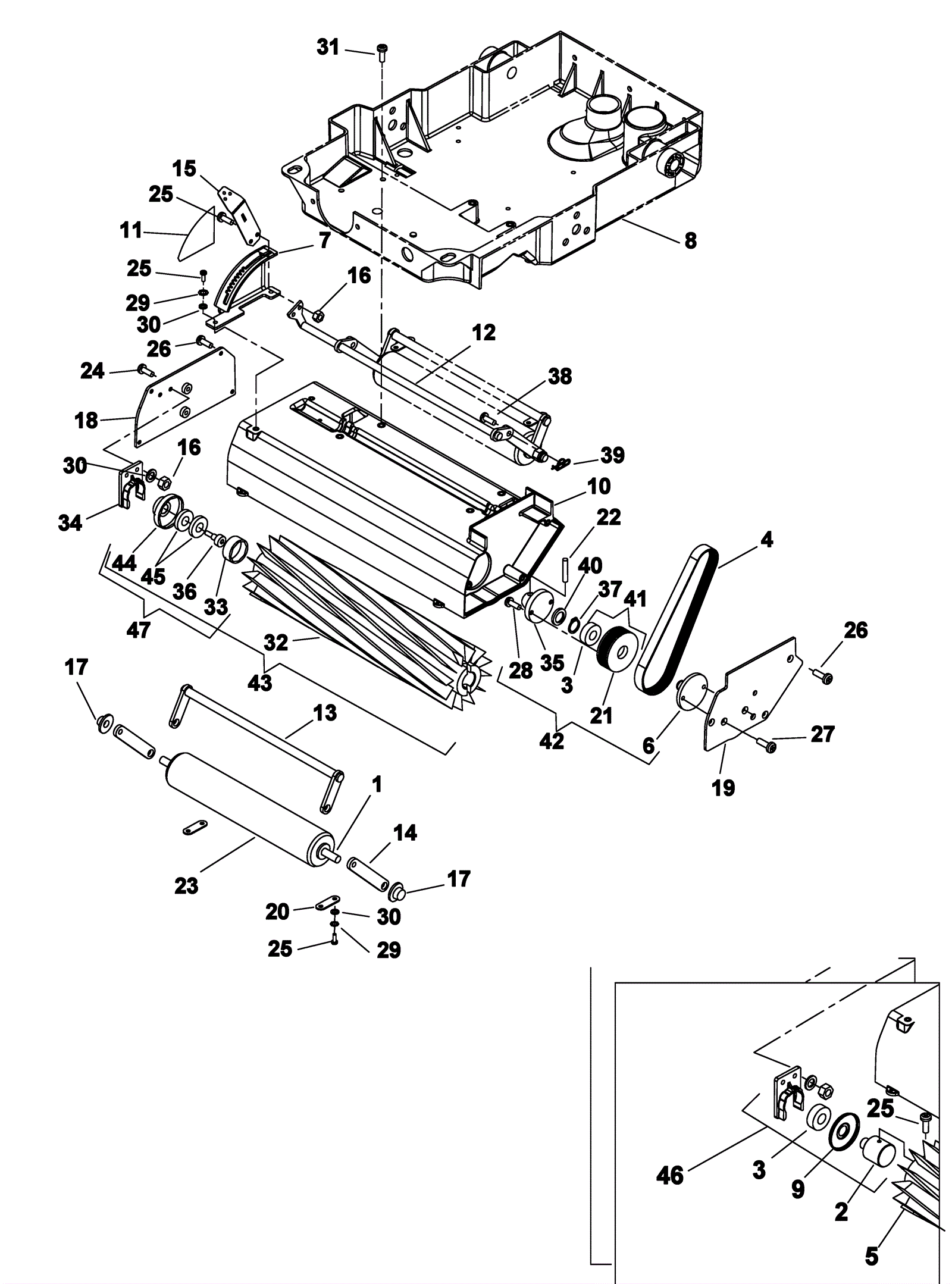

CLIPPER CLP12 (GRAY) Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-2061 Roller axle $38.39 1 usually ships 7-19 days
2 189-4220 Brush bearing adapter $133.12 1 ships same day
3 289-0021 Bearing 1 1/8 x 1/2 x 3/8 $49.94 2 ships same day
4 173-2139 Belt $73.71 1 ships same day
5 173-2162 Brush assembly $293.18 1 ships same day
6 189-4222 Pulley bracket $182.63 1 usually ships 11-24 days
7 173-2142 Brush height bracket $31.13 1 usually ships 7-19 days
8 173-2143 Frame $273.90 1 usually ships 1-5 days
9 189-4152 Threaded guard $33.46 2 usually ships 11-24 days
10 173-2145 Brush housing (18 inch) (OBSOLETE) $195.83 1 usually ships 7-19 days
11a 173-6407 Brush height decal $61.05 1 usually ships 7-19 days
11b 173-6407 Brush height decal $61.05 1 (gray) usually ships 7-19 days
12 173-2147 Brush height linkage assembly $99.20 1 usually ships 7-19 days
13 173-2148 Roller support linkage assembly $56.10 1 usually ships 7-19 days
14 173-2149 Front roller link $33.66 2 usually ships 7-19 days
15 173-2150 Height adjustment lever $33.66 1 usually ships 7-19 days
16 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
17 173-2535 Nut 3/8 push $0.99 2 ships same day
18 173-2151 Right brush housing plate $86.35 1 usually ships 7-19 days
19 173-2152 Left brush housing plate $94.05 1 usually ships 7-19 days
20 173-2153 Axle retainer plate $40.70 2 usually ships 7-19 days
21 173-2154 Pulley $128.70 1 usually ships 1-5 days
22 173-2880 Roll pin $2.66 1 usually ships 7-19 days
23 173-2155 Brush roller $74.81 1 usually ships 7-19 days
24 999-0087 Screw 10-32 x 5/8 flat head slotted zinc plated $0.99 2 ships same day
25 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 6 ships same day
26 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel $0.99 7 ships same day
27 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated $0.99 2 ships same day
28 999-0322 Screw 10-24 x 1/2 socket head alloy plain finish $0.99 2 ships same day
29 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
30 999-0998 Washer #10 flat stainless steel $0.99 6 ships same day
32 173-2843 18 inch brush $169.43 1 (from serial number 1000090717) usually ships 7-19 days
33 173-5220 Tolerance ring 7/8 inch $2.37 1 (from serial number 1000090717) ships same day
34 189-4155 Bearing clip $8.58 1 ships same day
35 189-4234 Brush driver $3.70 1 usually ships 11-24 days
36 999-1392 Bolt 3/8 x 3/8 shoulder stainless steel $12.45 1 (from serial number 1000090717) ships same day
37 173-1059 Snap ring $1.98 1 usually ships 7-19 days
38 173-2158 Clevis pin (OBSOLETE) $5.50 2 usually ships 7-19 days
39 173-1130 Cotter ring $2.42 2 ships same day
40 273-6289 Spacer $1.21 1 usually ships 7-19 days
41 189-4239 Brush pulley assembly $242.08 1 usually ships 11-24 days
42 189-4156 Brush driver assembly $928.84 1 (includes items 28,35,3, 21 and 6) ships same day
43 173-2162 Brush assembly $293.18 1 (includes items 32,33,36,44,45, and 47) ships same day
44 173-5223 Brush bearing adapter $38.17 1 (from serial number 1000090717) ships same day
45 173-5224 Bearing $41.58 2 (from serial number 1000090717) usually ships 7-19 days
46 173-4099 Brush bearing assembly kit $176.03 1 (includes items 3,9,2,5 and 25) ships same day
47 173-4152 Brush bearing kit $134.20 1 (includes items 44,45,36 and 33) ships same day
