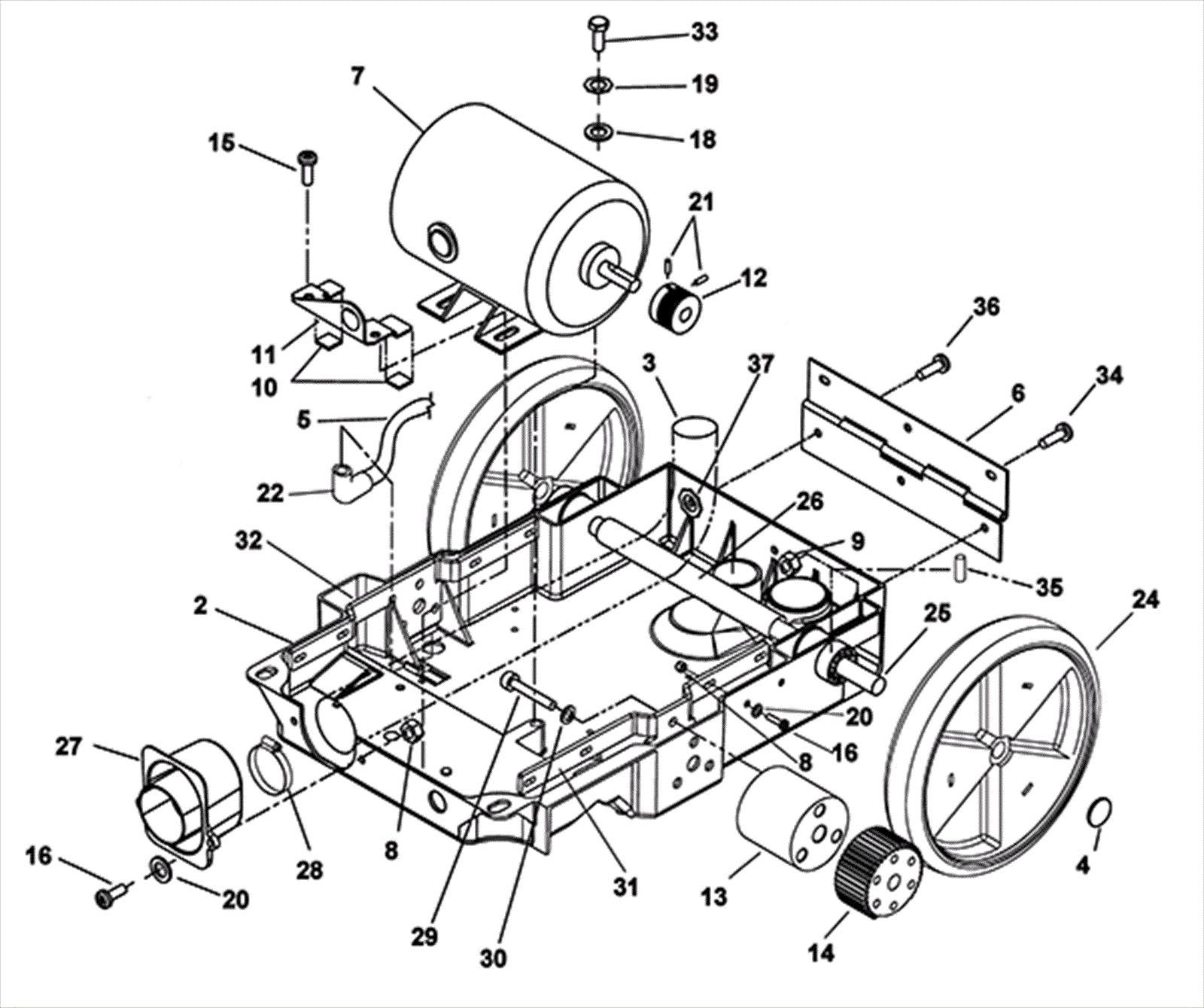

CLIPPER CLP12 (GRAY) Frame Assembly

#PartDescriptionPriceReqNotesAvailability
2 173-2143 Frame $273.90 1 usually ships 1-5 days
3 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch $148.92 1 usually ships 14-27 days
4 173-2064 Axle cap $4.95 2 ships same day
5 173-2180 Main harness $242.00 1 usually ships 14-22 days
6 173-2192 Hinge $128.70 1 usually ships 14-22 days
7 189-4148 120V brush motor assembly $485.10 1 usually ships 14-22 days
8 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 10 ships same day
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
10 173-2194 Foam tape $3.96 2 usually ships 14-22 days
11 173-2195 Clamping plate $22.66 1 usually ships 1-5 days
12 173-2196 Pulley $84.70 1 ships same day
13 173-2197 Handle pivot spacer $141.90 2 usually ships 14-22 days
14 173-2198 40 tooth gear $73.15 2 usually ships 14-22 days
15 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 2 ships same day
16 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 10 ships same day
18 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
19 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
20 999-0998 Washer #10 flat stainless steel $0.99 10 ships same day
21 999-1635 Screw 10-32 x 1/4 socket set $0.99 2 ships same day
22 173-2199 90 degree strain relief $1.69 1 usually ships 14-22 days
24 273-4000 10 inch gray wheel $132.02 2 ships same day
25 173-2200 Axle $51.59 1 usually ships 1-5 days
26 173-2201 Heat shrink $10.40 10" usually ships 1-5 days
27 189-4247 Frame and tank seal $189.23 1 usually ships 14-27 days
28 273-5693 Hose clamp $2.84 1 ships same day
29 173-2552 Bolt 5/16-18 x 3 1/2 plated socket cap $5.72 6 usually ships 14-22 days
30 999-0028 Washer 5/16 split lock plain finish $0.99 6 ships same day
31 173-2204 Right handle support bracket $106.70 1 usually ships 1-5 days
32 173-2205 Left handle support bracket $115.50 1 usually ships 1-5 days
33 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
34 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 2 ships same day
35 173-2206 Roll pin $1.57 1 usually ships 14-22 days
36 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 1 ships same day
37 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 3 ships same day
N/S 273-3529 Hubcap (black) $13.42 2 (gray) usually ships 14-22 days
