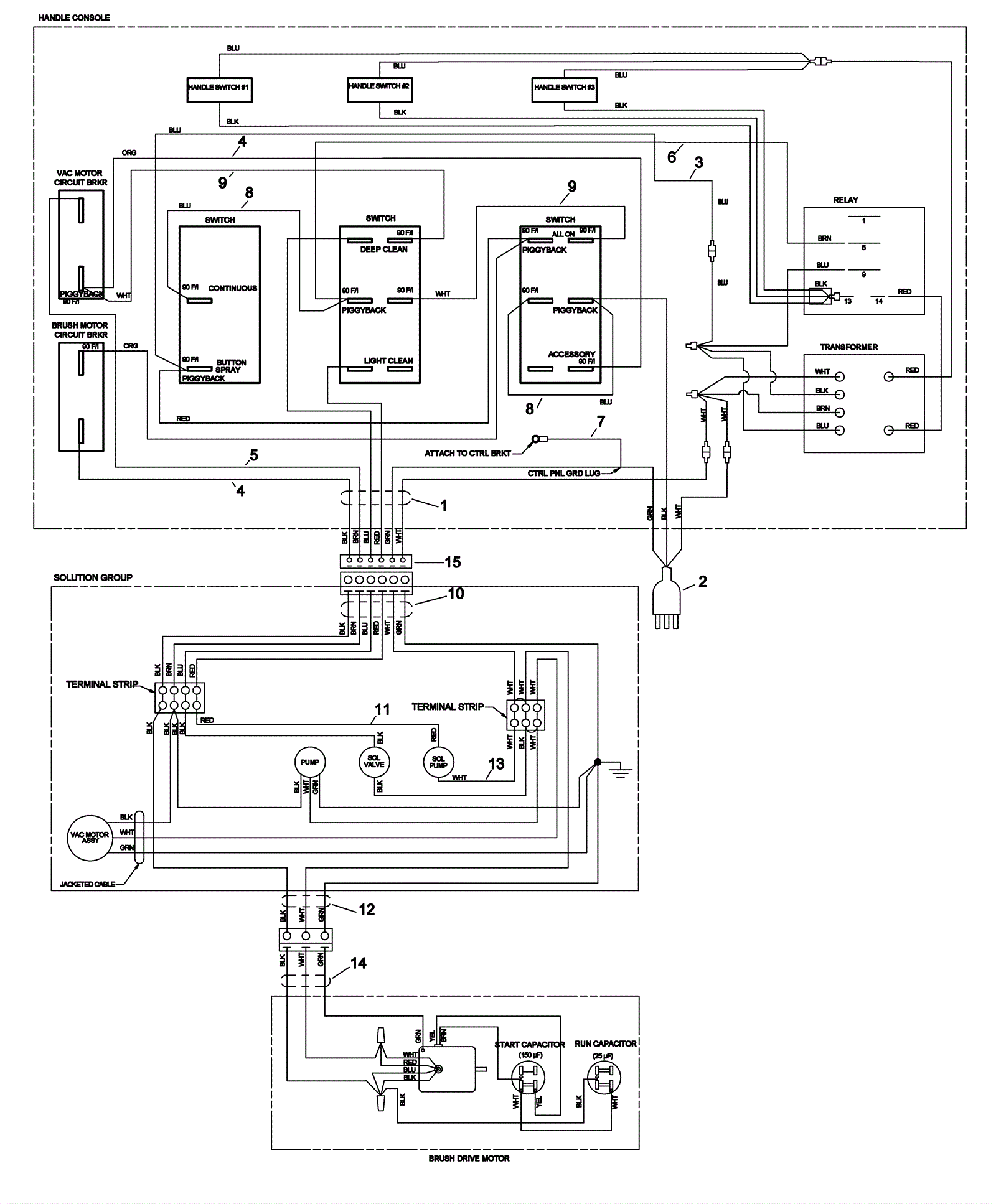

CLIPPER DUO (GRAY) Wiring Diagram Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-5751 Handle harness $93.00 1 usually ships 7-19 days
2 173-5320 14/3 pigtail cord assembly with twist lock 22 inch $82.51 1 ships same day
3 273-5752 540 mm wire (blue) Call for price 1 usually ships 1-5 days
4 273-5753 240mm wire (orange) (OBSOLETE) $11.10 2 usually ships 7-19 days
5 273-5754 150mm wire (red) $5.65 1 ships same day
6 273-5755 605mm wire (brown) (OBSOLETE) $11.60 1 usually ships 7-19 days
7 273-5756 15 inch wire (green) (OBSOLETE) $10.10 1 usually ships 7-19 days
8 273-5757 80mm wire (blue) (OBSOLETE) $35.00 2 usually ships 7-19 days
9 273-5758 150mm wire (white) $10.10 2 ships same day
10 273-5708 Handle harness connector $72.00 1 usually ships 1-5 days
11 273-5759 10 inch wire (white) $12.00 1 ships same day
12 273-5760 Brush deck harness $85.50 1 usually ships 1-5 days
13 273-5761 10 inch wire (red) $13.10 1 ships same day
14 273-5762 Brush deck wiring harness $61.50 1 usually ships 7-19 days
15 273-5763 Handle harness connector (OBSOLETE) $119.00 1 usually ships 7-19 days
