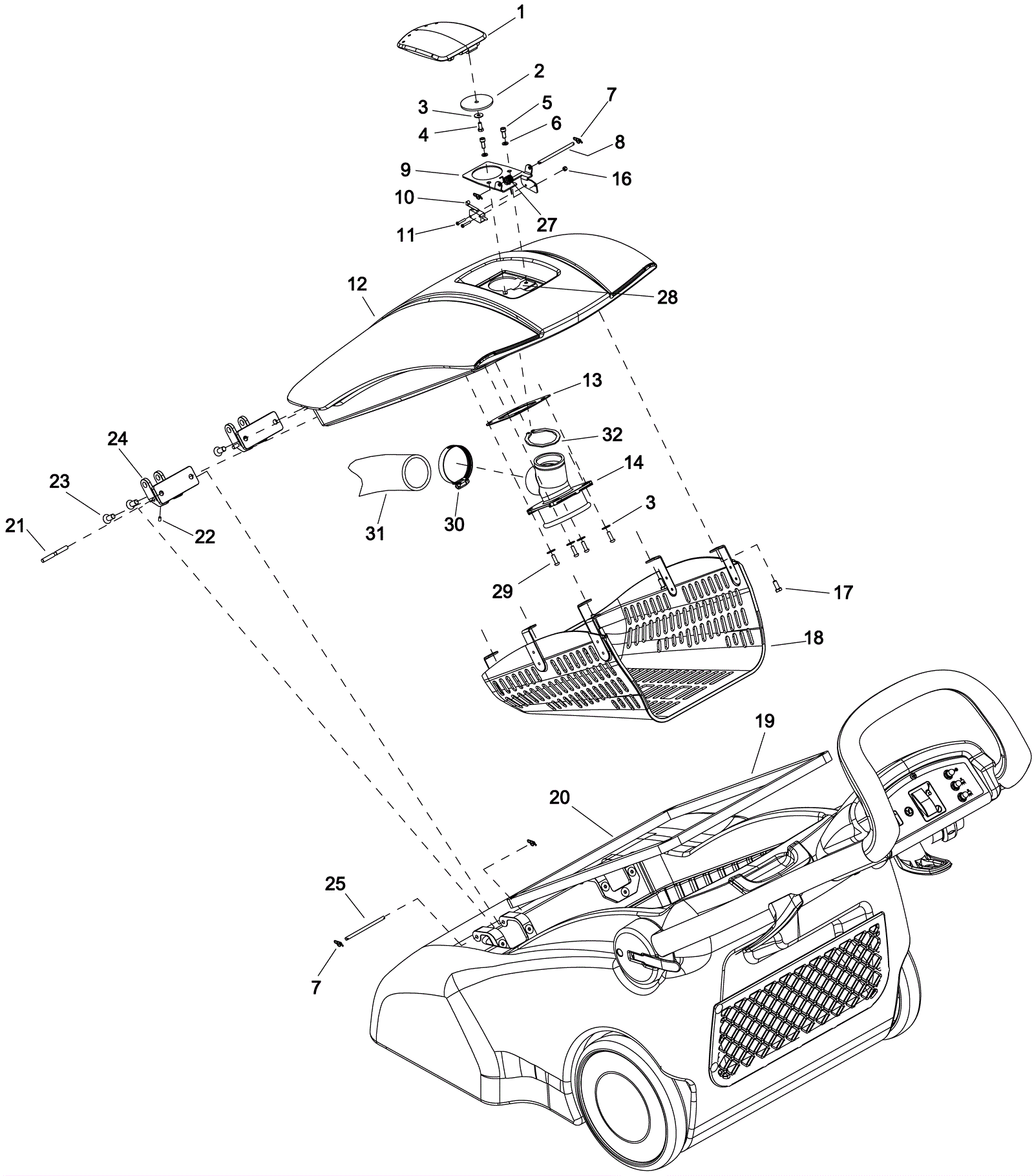

NUWAVE Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1a 273-6319 Accessory port cover $63.56 1 usually ships 14-22 days
1b 273-4420 Accessory port cover (yellow) $11.30 1 usually ships 14-22 days
2 273-6320 Accessory port cover gasket $24.13 1 usually ships 1-5 days
3 273-5591 Washer M5 flat stainless steel $2.33 5 usually ships 14-22 days
4 273-6321 Screw M5-.8 x 12mm $1.98 1 usually ships 1-5 days
5 273-6291 Screw M5-.8 x 15mm socket head (black) $1.98 2 usually ships 1-5 days
6 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
7 173-1130 Cotter ring $3.10 6 ships same day
8 273-6322 Pin $6.36 1 usually ships 1-5 days
9 273-6323 Accessory port hinge bracket $26.02 1 usually ships 1-5 days
10 173-1134 125 VDC sp nc roller switch $66.51 1 usually ships 14-22 days
11 273-6324 Screw M3-.5 x 16mm button socket head stainless steel $2.83 2 usually ships 1-5 days
12a 273-6325 Vacuum lid trim $172.70 1 usually ships 1-5 days
12b 273-4421 Vacuum lid trim (black) $82.50 1 usually ships 14-22 days
13 273-6326 Accessory port fitting gasket $28.84 1 usually ships 1-5 days
14 273-6327 Accessory port fitting $92.40 1 usually ships 1-5 days
16 999-1419 Nut M3-.5 hex stainless steel $0.99 1 ships same day
17 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 6 ships same day
18 273-6328 Filter bag basket $234.22 1 usually ships 1-5 days
19 273-6329 Foam gasket $46.50 2 usually ships 14-22 days
20 273-6330 Foam gasket $40.02 2 usually ships 1-5 days
21 273-6331 Pin $5.39 2 usually ships 1-5 days
22 273-5518 Screw M4-.7 x 8mm set cup point $1.84 2 ships same day
23 273-6332 Screw M8-1.25 x 20mm flat head (black) $5.50 4 usually ships 1-5 days
24 273-6333 Lid hinge $42.44 2 usually ships 1-5 days
25 273-6334 Pin $6.36 2 ships same day
27 273-6335 Torsion spring $9.36 1 usually ships 1-5 days
28 273-6336 Accessory port plate $8.47 1 usually ships 1-5 days
29 273-6337 Screw KA50 x 16 $13.07 4 usually ships 1-5 days
30 273-5615 Worm gear clamp $19.54 1 usually ships 14-22 days
31 273-6338 Hose 2 x 15 3/4 inch $70.04 1 usually ships 14-22 days
32 273-6339 Snap ring (black) $5.59 1 usually ships 1-5 days
N/S 173-8640 Paper bag (pkg of 10) $133.00 1 ships same day
N/S 991-9037 Paper vacuum bags (pkg of 10) $29.19 1 (NON-OEM) ships same day
