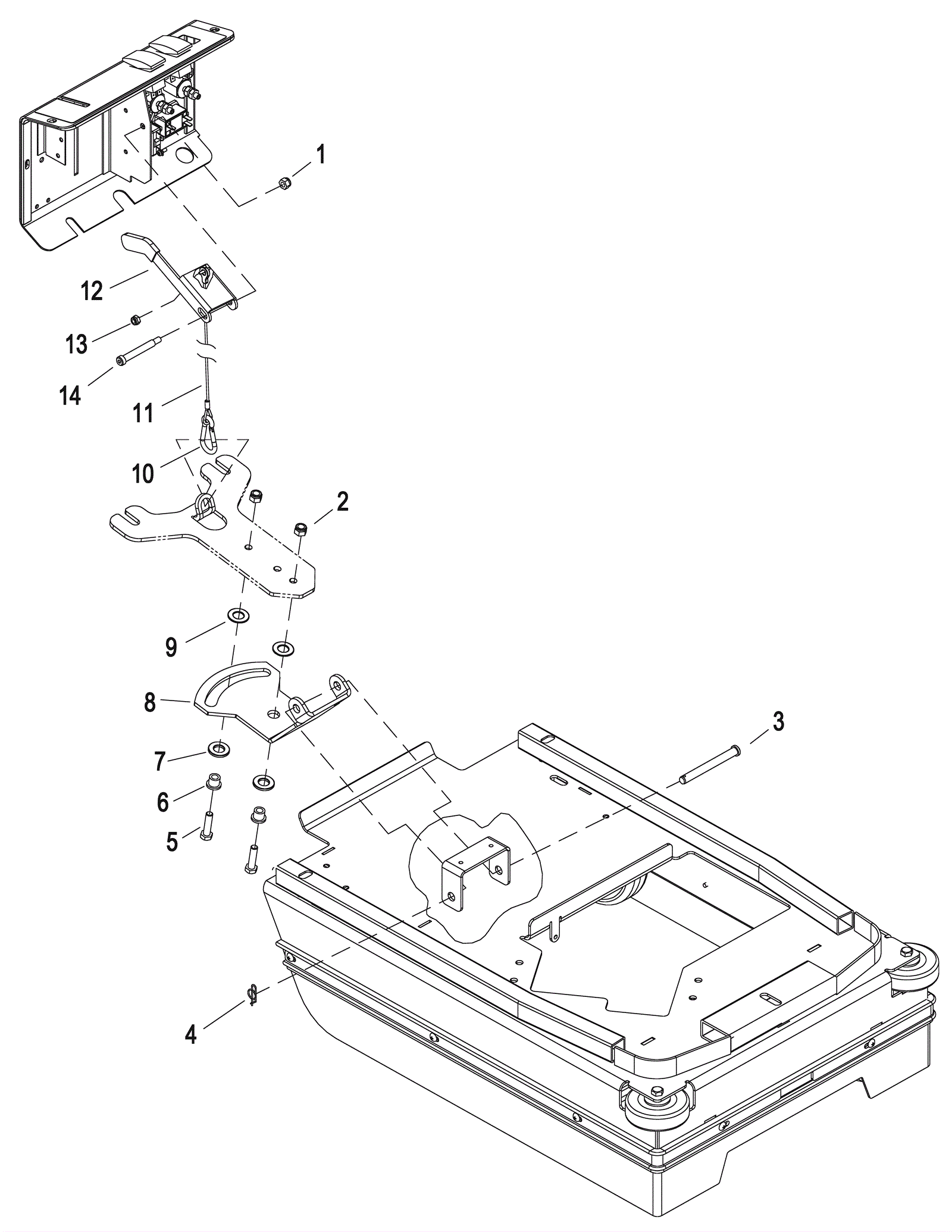

CHAMPION17 Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
2 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
3 173-3531 Clevis pin $6.55 1 usually ships 7-19 days
4 173-1593 Cotter ring (OBSOLETE) $0.99 1 usually ships 7-19 days
5 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
6 173-3116 Flanged bearing $8.47 2 usually ships 7-19 days
7 173-3963 Washer 1/2 thrust $7.32 2 usually ships 7-19 days
8 173-7470 Squeegee lift plate $53.79 1 usually ships 7-19 days
9 173-3964 Thrust washer $6.44 2 ships same day
10 173-7471 Safety clip hook $25.74 1 usually ships 7-19 days
11 173-7472 Squeegee lift cable $66.55 1 usually ships 1-5 days
12 173-7473 Squeegee lift lever $86.90 1 usually ships 1-5 days
13 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
14 173-9141 Shoulder bolt 5/16-18 x 2 $16.39 1 usually ships 1-5 days
