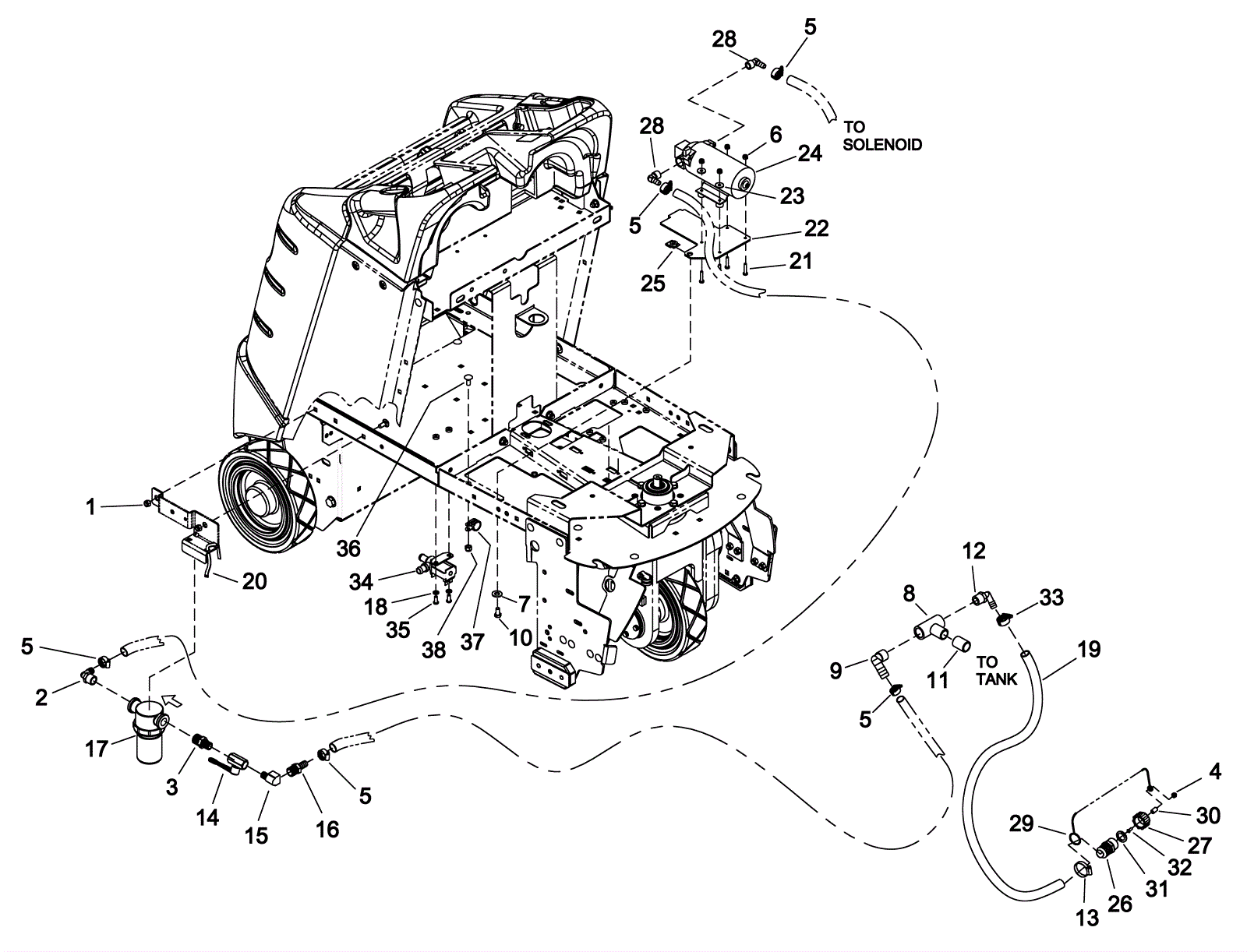

CHARIOT ISCRUB SERIES 2 Solution Assembly - 26 inch Cylindrical - After 01.2009

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
2 173-1685 Hosebarb 1/2 x 1/2 inch $12.21 1 usually ships 14-22 days
3 273-5911 Brass nipple 1/2 x 3/8 inch $7.92 1 usually ships 14-22 days
4 273-0010 Nut 8/32 acorn cap plated $1.76 1 usually ships 14-22 days
5 173-1821 Hose clamp $6.39 5 ships same day
6 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
7 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
8 173-3563 3/4 inch female tee fitting $22.44 1 usually ships 14-22 days
9 173-2623 Hosebarb 3/4 x 1/2 inch $12.98 1 usually ships 14-22 days
10 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 1 ships same day
11 173-3565 3/4 inch nipple fitting $11.11 1 usually ships 14-22 days
12 273-0002 Hosebarb 3/4 x 1 inch $25.41 1 usually ships 14-22 days
13 173-1079 Hose clamp (OBSOLETE) $2.06 1 usually ships 14-22 days
14 273-0013 3/8 inch ball valve $64.35 1 usually ships 14-22 days
15 173-0965 3/8 inch street elbow nickel plated $15.73 1 usually ships 14-22 days
16 173-3056 Hosebarb 3/8 x 1/2 inch $10.01 1 usually ships 14-22 days
17 273-0039 Solution filter $96.80 1 usually ships 14-22 days
18 999-1049 Washer 1/4 split lock zinc plated $0.99 2 ships same day
19 173-7401 Drain hose (OBSOLETE) $62.15 1 usually ships 14-22 days
20 173-3169 Wire tie $1.03 2 usually ships 1-5 days
21 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated $0.99 4 ships same day
22 273-0005 Solution pump bracket (OBSOLETE) $34.32 1 usually ships 14-22 days
23 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
24 173-2606 36V pump assembly $720.83 1 usually ships 14-22 days
25 173-3935 Nut 5/16-18 captive jam (OBSOLETE) $5.50 1 usually ships 14-22 days
26 273-0011 Hosebarb 1 x 3/4 inch nylon $26.73 1 usually ships 14-22 days
27 273-0012 Cap $33.33 1 usually ships 14-22 days
28 173-1072 Hosebarb 3/8 x 1/2 inch $9.24 2 usually ships 14-22 days
29 273-0006 Strap $5.94 1 usually ships 14-22 days
30 273-0007 Spacer $1.57 1 usually ships 14-22 days
31 273-0008 O-ring $5.83 1 usually ships 14-22 days
32 999-1445 Screw 8-32 x 1/2 button head $0.99 1 ships same day
33 173-5661 Hose clamp $10.45 1 usually ships 1-5 days
34 173-8562 Solenoid valve $158.42 1 usually ships 1-5 days
35 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 2 ships same day
36 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 1 ships same day
37 173-3112 P clamp $9.74 1 usually ships 14-22 days
38 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
