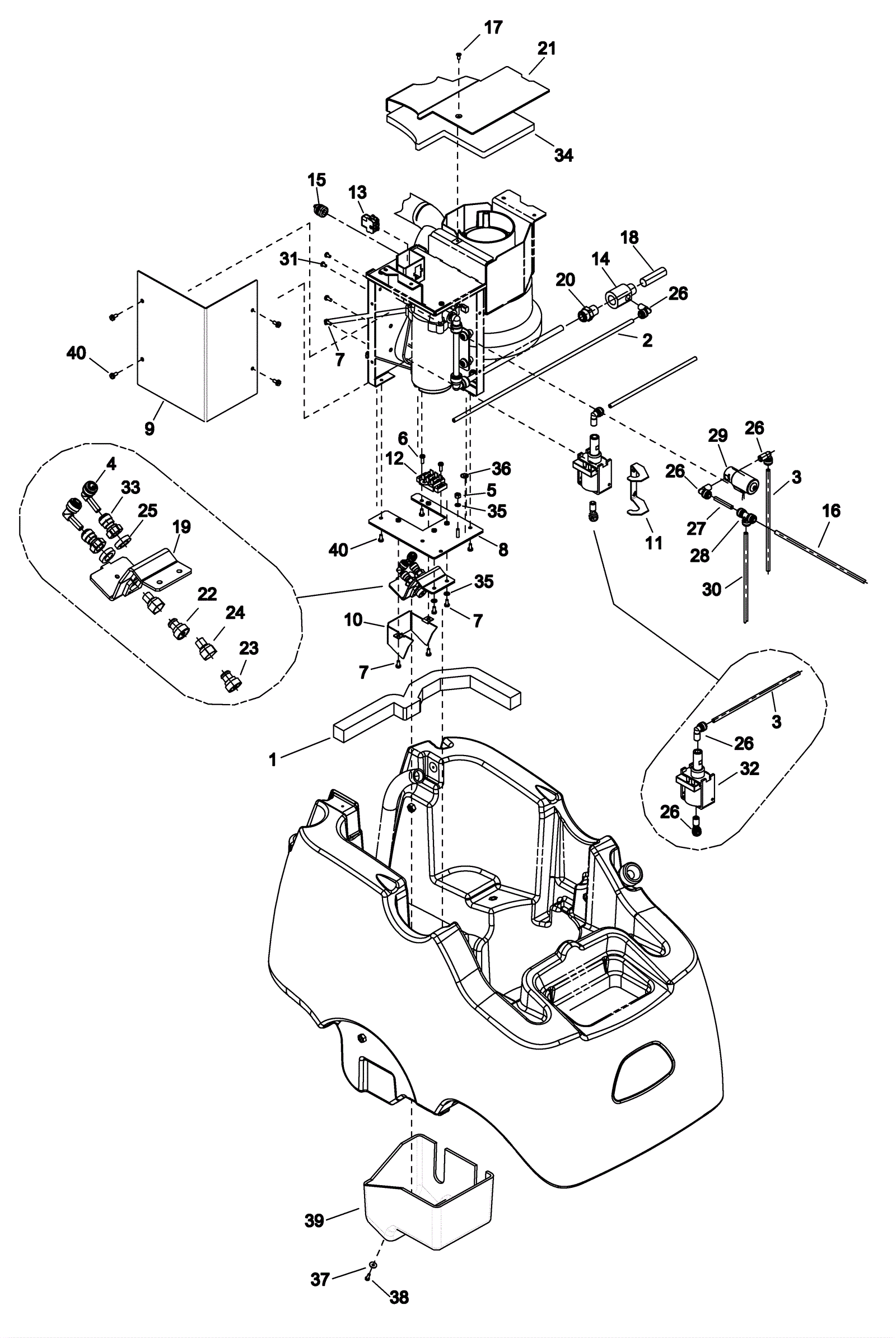

CLIPPER DUO (GRAY) Solution Assembly-Internal

#PartDescriptionPriceReqNotesAvailability
1 273-5718 Foam $16.07 1 usually ships 7-19 days
2 273-7863 Nylon Tube $11.90 1 usually ships 7-19 days
3 273-7864 Nylon tube $7.50 2 usually ships 7-19 days
4 273-7865 Elbow tube $20.60 2 usually ships 7-19 days
5 999-1819 Nut 8-32 hex stainless steel $0.99 1 usually ships 1-5 days
6 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
7 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 6 ships same day
8 273-5703 Bottom plate $61.50 1 usually ships 1-5 days
9 273-5704 Side cover $37.70 1 usually ships 7-19 days
10 273-5705 Nozzel mounting cover $34.90 1 usually ships 1-5 days
11 273-5706 Solenoid pump clamp $32.60 1 usually ships 1-5 days
12 273-5707 3 position terminal strip $13.80 1 usually ships 7-19 days
13 273-5708 Handle harness connector $72.00 1 usually ships 1-5 days
14 273-7866 Adapter (OBSOLETE) $83.50 1 usually ships 7-19 days
15 273-5709 Strain relief bushing $2.75 1 usually ships 1-5 days
16 273-7867 Nylon tube $11.80 1 usually ships 7-19 days
17 999-0437 Screw 8-32 x 1/2 flat head phillips zinc plated $0.99 1 ships same day
18 273-7868 Mesh screen strainer $36.49 1 ships same day
19 273-5712 Nozzel mounting assembly $66.50 1 usually ships 1-5 days
20 273-7869 Tube connector $26.80 1 ships same day
21 273-5713 Acoustic baffle $51.00 1 usually ships 1-5 days
22 173-5329 Spray nozzle jet $47.60 1 usually ships 7-19 days
23 173-8641 Promax jet 11001 $19.60 1 usually ships 7-19 days
24 173-2210 Jet body $7.87 2 ships same day
25 173-2555 Washer 7/16 x 3/16 inch rubber $15.00 2 usually ships 7-19 days
26 273-7870 Fixed elbow tube $19.90 5 usually ships 7-19 days
27 273-7871 Nylon tube $4.60 2 usually ships 7-19 days
28 273-7872 Union tee $27.76 1 usually ships 7-19 days
29 173-5321 Solenoid valve $215.00 1 usually ships 7-19 days
30 273-7873 Nylon tube $9.85 1 usually ships 7-19 days
31 273-0187 Screw 8-32 x 5/16 stainless steel $0.97 2 usually ships 7-19 days
32 173-7036 120V flojet pump $79.02 1 ships same day
33 273-7874 Tube adapter $37.00 2 usually ships 7-19 days
34 273-5719 Solution foam lid assembly $31.20 1 usually ships 1-5 days
35 999-0311 Washer #10 external star lock zinc plated $0.99 3 ships same day
36 173-2188 Ground symbol decal $4.24 1 usually ships 1-5 days
37 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
39 273-7875 Lower trim solution cover $147.00 1 usually ships 7-19 days
40 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer $0.90 7 usually ships 7-19 days
