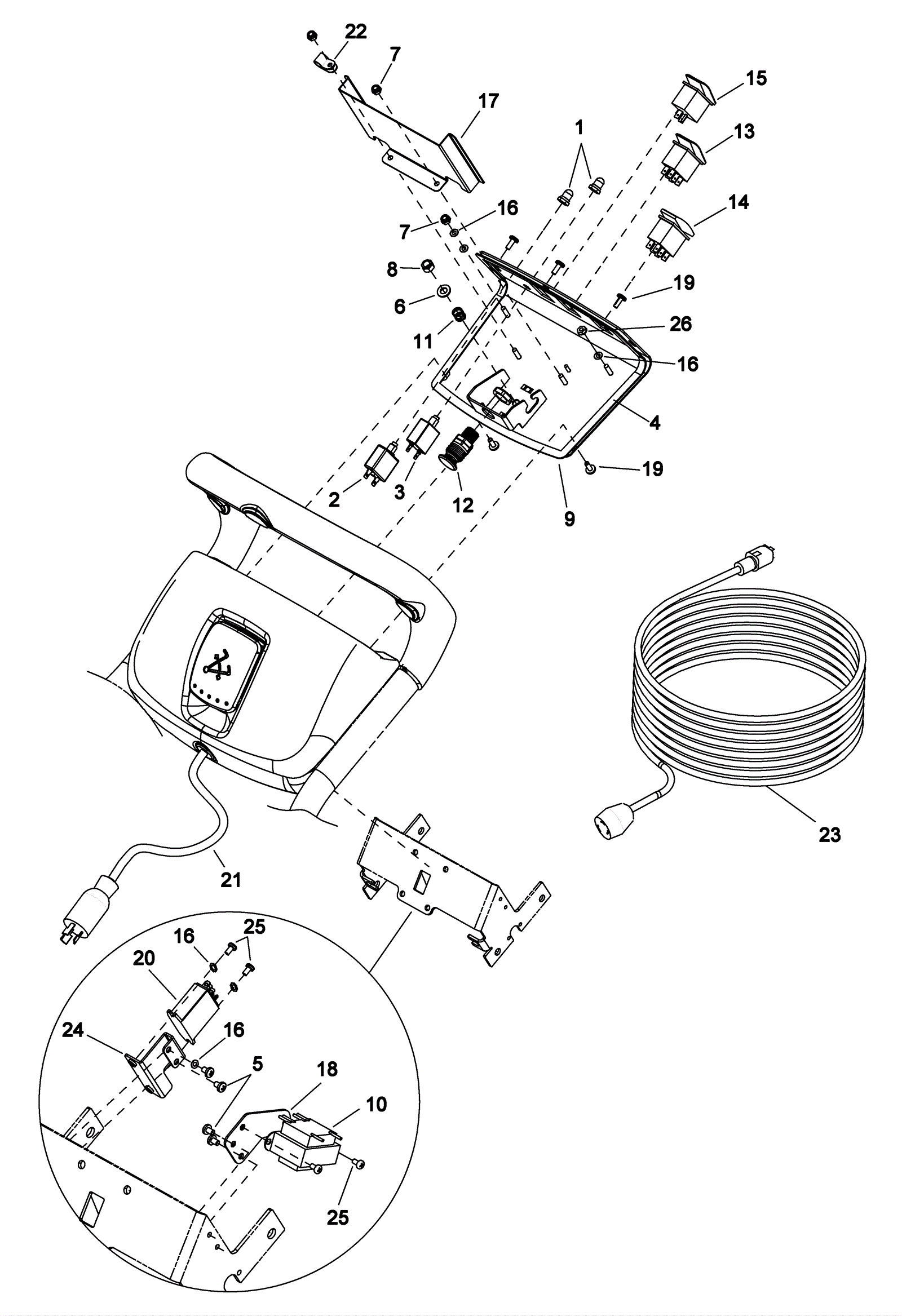

CLIPPER DUO (GRAY) Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-0312 3/8 inch circuit breaker boot $59.75 2 usually ships 11-24 days
2 189-4092 15amp circuit breaker $15.55 1 usually ships 7-19 days
3 273-5447 8amp circuit breaker $9.79 1 ships same day
4 273-5636 Handle gasket $62.15 1 usually ships 7-19 days
5 273-5637 Screw M4-.7 x 6mm phillips head $1.45 4 usually ships 1-5 days
6 273-5523 Washer M8 flat stainless steel $1.45 1 usually ships 1-5 days
7 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 3 ships same day
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 usually ships 11-24 days
9 273-5638 Control panel plate $66.00 1 usually ships 1-5 days
10 273-5639 Transformer $188.10 1 usually ships 7-19 days
11 273-5640 Compression spring $3.96 1 usually ships 7-19 days
12 173-2845 Strain relief $20.35 1 usually ships 7-19 days
13 173-2277 2 position rocker switch $27.45 1 ships same day
14 173-2174 3 position rocker switch $64.35 1 ships same day
15 273-8956 2 position rocker switch $45.43 1 usually ships 7-19 days
16 999-0311 Washer #10 external star lock zinc plated $0.99 6 ships same day
17 273-5641 Electrical separator bracket $19.03 1 usually ships 1-5 days
18 273-8957 Handle transformer bracket $3.26 1 usually ships 7-19 days
19 999-1341 Screw 10-32 x 2 1/2 truss head phillips zinc $1.19 5 ships same day
20 273-5643 24V relay $72.05 1 usually ships 7-19 days
21 173-5320 14/3 pigtail cord assembly with twist lock 22 inch $90.76 1 ships same day
22 173-1709 P clamp (OBSOLETE) $2.30 1 usually ships 7-19 days
23 173-2059 14/3 extension cord 50 foot twist lock (yellow) $172.70 1 usually ships 7-19 days
24 273-8958 Handle relay bracket $6.56 1 usually ships 7-19 days
25 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated $0.99 4 ships same day
26 173-2472 Nut 10-32 with star washer $0.99 1 usually ships 1-5 days
