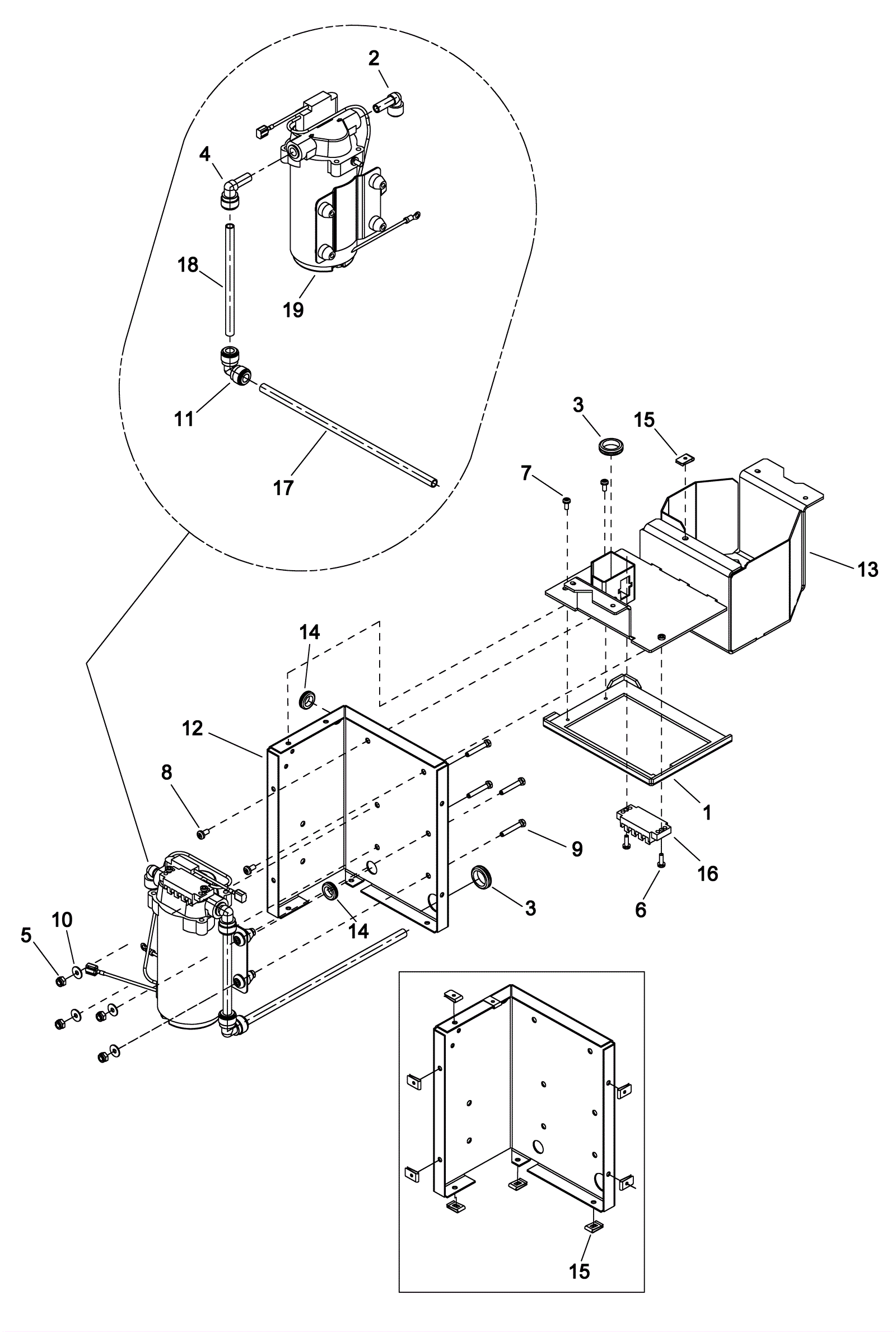

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-5694
|
Solution gasket assembly |
1 |
|
|
3 |
273-5695
|
Grove grommet |
2 |
|
|
5 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
6 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
2 |
|
|
7 |
173-2549
|
Bolt 10-32 x 3/8 hex head thread rolling with star washer |
2 |
|
|
8 |
999-0896
|
Screw 10-32 x 3/8 round head phillips stainless steel |
2 |
|
|
9 |
273-5665
|
Screw 10-32 x 1mm hex head (OBSOLETE) |
4 |
|
|
10 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
12 |
273-5696
|
Solution bracket assembly |
1 |
|
|
13 |
273-5697
|
Frame solution assembly |
1 |
|
|
14 |
273-5698
|
Grommet |
2 |
|
|
15 |
273-5699
|
Nut #8 x 32 speed |
1 |
|
|
16 |
273-5700
|
4-position terminal strip |
1 |
|
|
18 |
189-4217
|
Nylon hose 3/8 x 6 inch |
1 |
|
|
