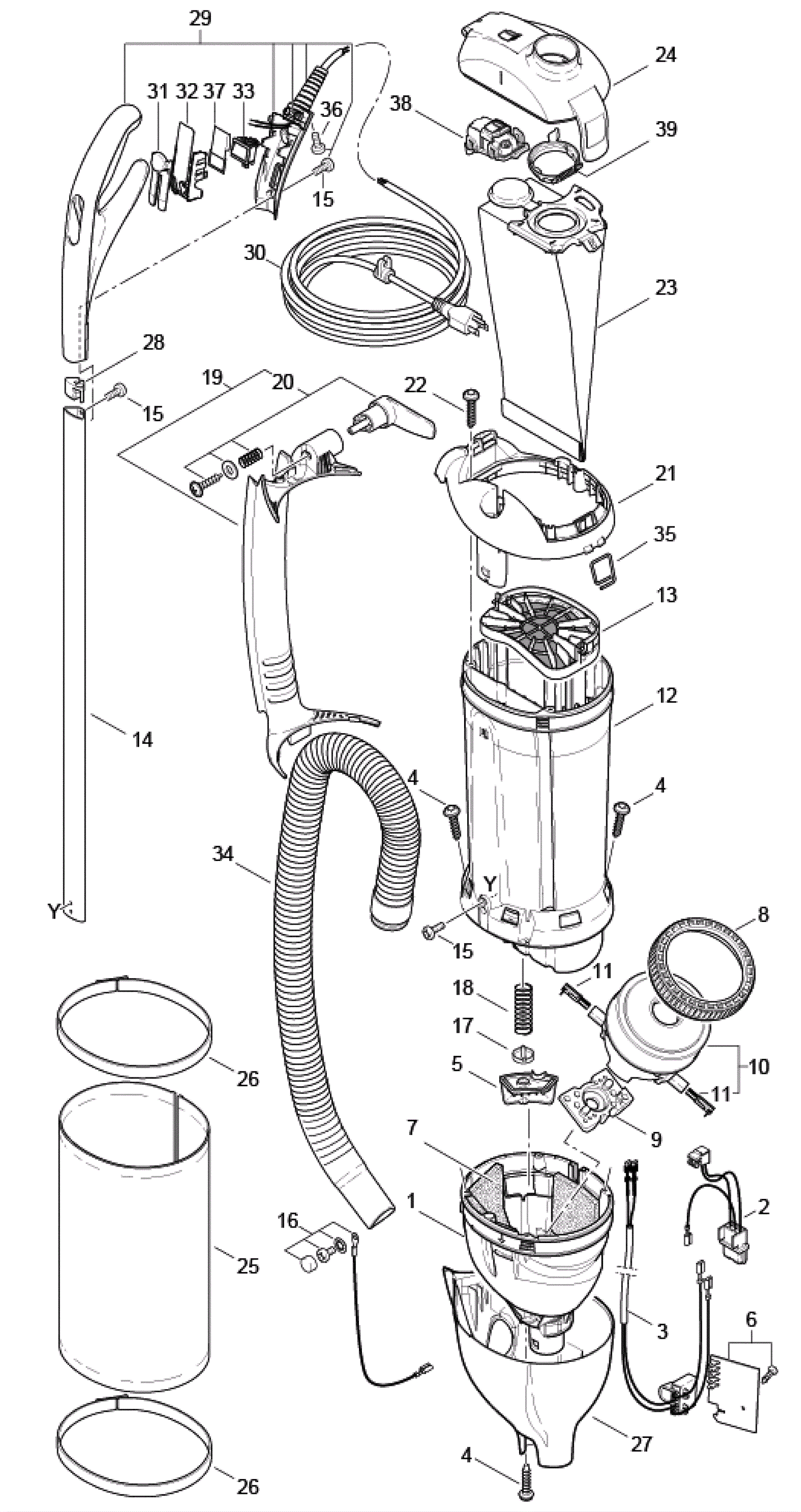

AXCESS Upper Housing

#PartDescriptionPriceReqNotesAvailability
1 173-4200 Air duct $95.15 1 usually ships 1-5 days
2 173-4201 Internal wiring $46.86 1 usually ships 1-5 days
3 173-4202 Internal cable $70.95 1 usually ships 1-5 days
4 173-4203 Screw M4 x 16mm self-tapping torx $14.30 1 usually ships 7-19 days
5 173-4204 Valve cover $21.12 1 usually ships 7-19 days
6 173-4205 120V printed circuit board $57.20 1 usually ships 1-5 days
7 173-4206 Sound insulation $29.59 1 usually ships 1-5 days
8 173-0029 Vacuum motor seal $33.66 1 usually ships 7-19 days
9 173-4207 Rubber mounting $29.59 1 usually ships 7-19 days
10 173-5346 120V vacuum motor $271.70 1 (includes 11) ships same day
11 173-4208 Carbon brush (pkg of 2) $68.20 1 usually ships 7-19 days
12 273-7709 Dust bag housing $180.40 1 usually ships 7-19 days
13 173-5347 Vacuum motor filter $28.93 1 ships same day
14 173-4210 Handle tube $72.60 1 usually ships 1-5 days
15 173-4211 Screw M4-.7 x 10mm $3.94 1 usually ships 7-19 days
16 173-4212 Internal wiring $28.16 1 usually ships 1-5 days
17 173-4213 Valve disc $15.73 1 usually ships 7-19 days
18 273-7710 Valve spring $12.98 1 usually ships 7-19 days
19 273-7711 Hose ducts (grey) $59.95 1 (includes 20) usually ships 7-19 days
20 273-7712 Cable hook $20.35 1 usually ships 7-19 days
21 273-7713 Dust bag housing cover $21.89 1 usually ships 7-19 days
22 173-4217 Screw M4-.7 x 20mm self-tapping torx $16.39 1 usually ships 7-19 days
23a 173-5350 Filter bag (pkg of 10) $35.09 1 ships same day
23b 991-6033 Filter vacuum bag (pkg of 10) $22.20 1 (NON-OEM) ships same day
24 273-7714 Filter cover $77.55 1 usually ships 7-19 days
25 273-7652 Exhaust filter $77.55 1 ships same day
26 273-7715 Exhaust filter $38.39 1 usually ships 7-19 days
27 273-7716 Lower housing $30.80 1 usually ships 7-19 days
28 173-4221 Plug $18.81 1 usually ships 1-5 days
29 273-7717 Handle grip $135.30 1 (includes 15,31,32,33,36,37) usually ships 7-19 days
30 173-5353 18/3 power cord $102.51 1 usually ships 7-19 days
31 273-7719 Yellow sliding button $16.39 1 usually ships 7-19 days
32 273-7720 Black handle frame $43.01 1 usually ships 7-19 days
33 173-4224 2 pole rocker switch $39.93 1 usually ships 7-19 days
34 173-5348 Hose $144.12 1 usually ships 7-19 days
35 273-7721 Spring latch $25.08 1 usually ships 7-19 days
36 273-0130 Screw M4-.7 x 14mm $0.50 1 ships same day
38 173-4225 Filter indicator (OBSOLETE) $36.52 1 usually ships 7-19 days
39 173-4226 Retaining ring $23.54 1 usually ships 1-5 days
