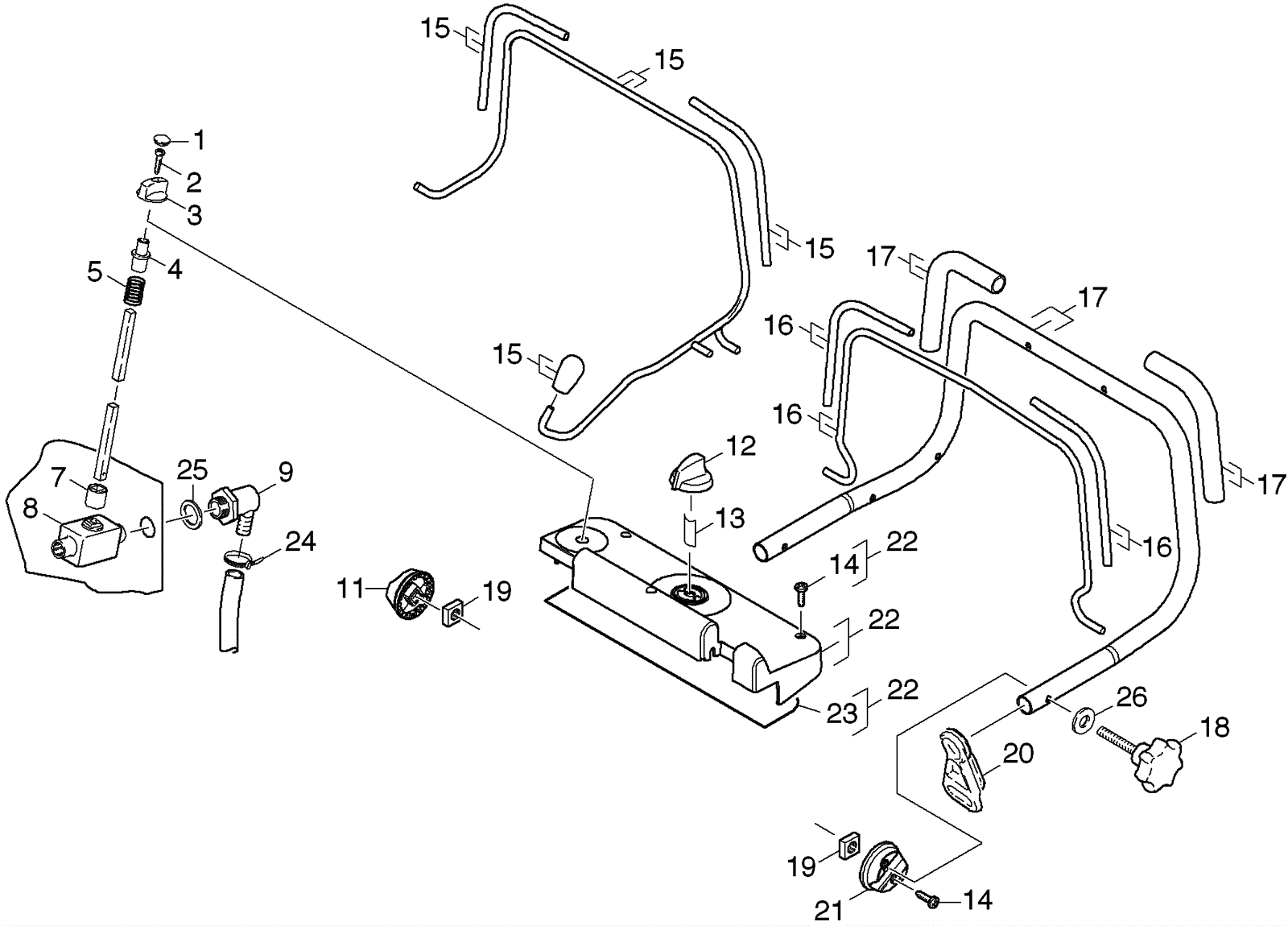

SABER COMPACT 16 Frame Assembly - 2

#PartDescriptionPriceReqNotesAvailability
1 183-0114 Ornamental hub cap $1.18 1 usually ships 1-5 days
2 183-0140 Sheet metal screw $1.23 1 usually ships 8-21 days
3 183-0116 Handle $15.13 1 usually ships 1-5 days
4 183-0117 Coupler $7.93 1 usually ships 8-21 days
5 183-0118 Helecal spring $1.23 1 usually ships 8-21 days
7 183-0120 Coupler $6.53 1 usually ships 8-21 days
9 173-3319 Angle bushing $30.50 1 usually ships 7-19 days
11 173-3329 Right retaining bracket $18.50 1 usually ships 7-19 days
12 273-6022 Knob $3.36 1 (also need to order 13) ships same day
13 273-9368 Knob w/ spring clip $6.85 1 usually ships 7-19 days
14 173-6202 Screw M5 x 20mm $0.94 5 ships same day
15 273-7142 Retaining bracket $263.00 1 (for model 1.515-208.0) usually ships 1-5 days
16 273-7142 Retaining bracket $263.00 1 (for model 1.515.158.0) usually ships 1-5 days
17a 273-7144 Retaining bracket $311.00 1 (for model 1.515.158.0) usually ships 1-5 days
17b 273-7145 Retaining bracket handhold $151.78 1 (for model 1.515-208.0) usually ships 1-5 days
18 273-7146 Star grip $14.70 2 usually ships 7-19 days
19 183-0947 Square nut $1.26 2 usually ships 8-21 days
20 173-6199 Strain relief $19.90 1 (for model 1.515.158.0) usually ships 1-5 days
21 273-7147 Left retaining bracket $14.70 1 usually ships 7-19 days
22 173-3336 Cap replacement $234.00 1 (includes 14 and 23) usually ships 1-5 days
23 273-7148 Control panel seal $28.30 1 usually ships 1-5 days
24 173-9063 Holder $3.41 1 usually ships 7-19 days
25 173-3338 Joint ring $1.38 1 usually ships 7-19 days
26 173-6204 Washer 8M $1.16 2 usually ships 7-19 days
