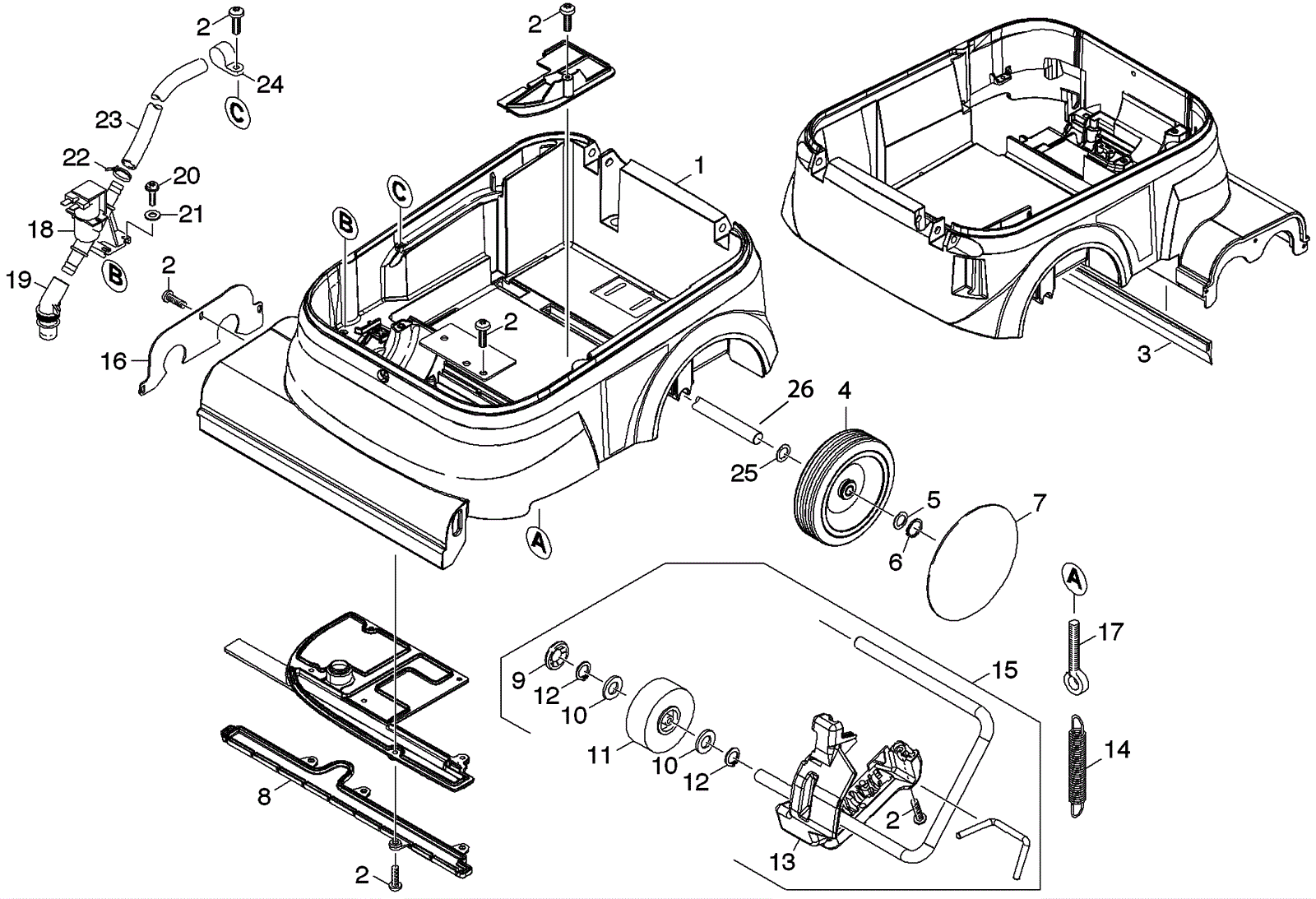

SABER COMPACT 16 Frame Assembly - SP

#PartDescriptionPriceReqNotesAvailability
1 173-3193 Frame $535.54 1 usually ships 1-5 days
2 173-6139 Screw 5 x 20 $4.30 15 usually ships 11-16 days
3 173-3223 Brush splash guard $27.54 1 usually ships 1-5 days
4 183-0257 Wheel $50.59 2 usually ships 1-5 days
5 183-0256 Washer $11.29 2 usually ships 1-5 days
6 183-0258 Spring clip $1.54 2 usually ships 1-5 days
7 183-0229 Wheel cab $6.01 2 usually ships 1-5 days
8 173-3224 Gutter $38.49 1 usually ships 1-5 days
9 273-6416 Quick fastener $14.36 1 usually ships 11-16 days
10 273-6417 Washer $1.41 2 usually ships 11-16 days
11 273-6418 Wheel $51.67 1 usually ships 11-16 days
12 273-6070 Locking ring $1.63 2 usually ships 11-16 days
13 273-6419 Half shell $75.92 1 usually ships 1-5 days
14 273-6420 Extension spring $12.24 1 usually ships 1-5 days
15 273-6421 Carriage replacement $298.96 1 (includes 2 and 9-13) usually ships 11-16 days
16 273-7141 Brush bearing plate $64.15 1 usually ships 11-16 days
17 273-6422 Eye bolt $3.91 1 usually ships 1-5 days
18 173-5392 Solenoid valve $134.18 1 ships same day
19 273-7131 Rubber bushing $4.29 1 usually ships 11-16 days
20 273-6490 Screw 4 x 16 $2.83 2 usually ships 1-5 days
21 273-7132 Washer (OBSOLETE) $0.99 2 usually ships 11-16 days
22 173-9063 Holder $4.38 1 usually ships 11-16 days
23 273-5847 Spiral hose (sold by the inch) $25.89 1 usually ships 11-16 days
24 173-3002 Hose clip $5.50 1 usually ships 11-16 days
25 273-7129 Ring $7.37 2 usually ships 1-5 days
26 173-3308 Wheel axle $140.06 2 usually ships 1-5 days
