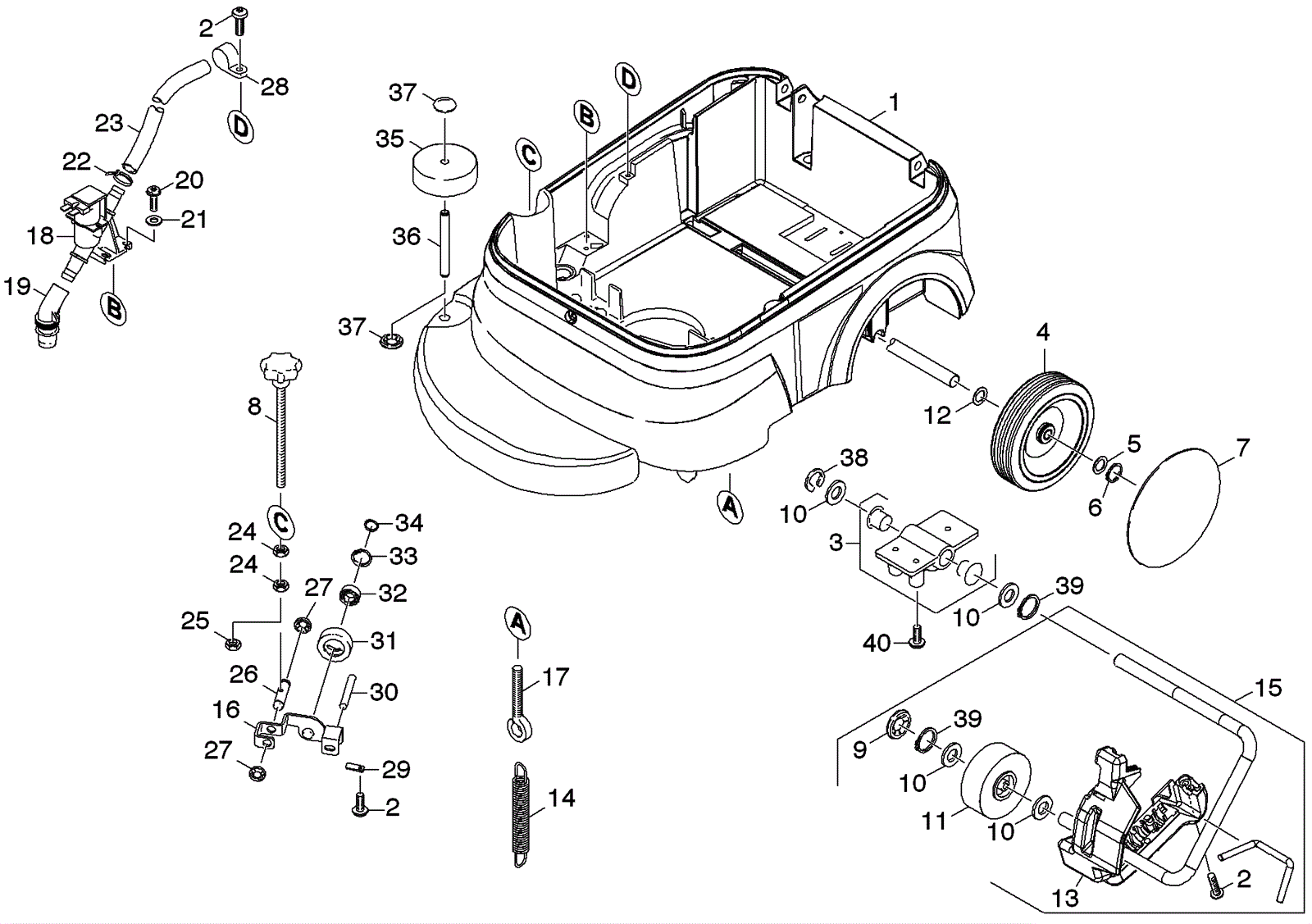

SABER COMPACT 16 Frame Assembly - 1

#PartDescriptionPriceReqNotesAvailability
1 273-7127 Frame $348.00 1 usually ships 1-5 days
2 173-6139 Screw 5 x 20 $3.36 8 usually ships 7-19 days
3 273-7128 Bearing support $60.00 1 (includes 40) usually ships 1-5 days
4 183-0257 Wheel $45.99 2 usually ships 1-5 days
5 183-0256 Washer $10.26 2 usually ships 1-5 days
6 183-0258 Spring clip $1.23 2 usually ships 1-5 days
7 183-0229 Wheel cab $5.46 2 usually ships 1-5 days
8 173-3186 Star grip $9.15 1 usually ships 1-5 days
9 273-6416 Quick fastener $12.20 1 usually ships 7-19 days
10 273-6417 Washer $1.10 4 usually ships 7-19 days
11 273-6418 Wheel $43.99 1 usually ships 7-19 days
12 273-7129 Ring $6.70 2 usually ships 1-5 days
13 273-6419 Half shell $64.50 1 usually ships 1-5 days
14 273-6420 Extension spring $10.40 1 usually ships 1-5 days
15 173-2810 Complete carriage $138.00 1 (includes 2, 9-10, 11, 13, and 39) usually ships 1-5 days
16 173-2811 Pressure roller lever $81.50 1 usually ships 1-5 days
17 273-6422 Eye bolt $3.55 1 usually ships 1-5 days
18 273-7130 Solenoid valve (OBSOLETE) $229.00 1 usually ships 7-19 days
19 273-7131 Rubber bushing $3.90 1 usually ships 7-19 days
20 273-6490 Screw 4 x 16 $2.20 2 usually ships 1-5 days
21 273-7132 Washer (OBSOLETE) $0.90 2 usually ships 7-19 days
22 173-9063 Holder $3.41 1 usually ships 7-19 days
23 273-5847 Spiral hose $22.00 1 ships same day
24 183-0405 Hex nut $1.64 2 usually ships 1-5 days
25 183-0385 Hex nut (Obsolete) $3.14 1 usually ships 1-5 days
26 273-7134 Axle $25.10 1 usually ships 1-5 days
27 183-0241 Washer lock $1.85 2 usually ships 1-5 days
28 173-3002 Hose clip $5.00 1 usually ships 7-19 days
29 173-3003 Retainer clip $5.45 2 usually ships 1-5 days
30 173-3021 Pressure roller axle $12.90 1 usually ships 1-5 days
31 173-3042 Roller $72.50 1 usually ships 1-5 days
32 173-3082 Ball bearing $46.60 1 ships same day
33 273-7135 Locking ring 35 x 1 $8.10 1 usually ships 1-5 days
34 183-0259 Locking ring $2.31 1 usually ships 8-21 days
35 173-3168 Deflector roll $12.00 1 usually ships 1-5 days
36 173-3173 Axle deflector roll $14.70 1 usually ships 1-5 days
37 273-6416 Quick fastener $12.20 2 usually ships 7-19 days
38 273-7031 Lock washer $1.71 1 usually ships 7-19 days
39 273-6070 Locking ring $1.27 2 usually ships 7-19 days
40 273-6049 Screw 6-10.9 x 25mm $3.08 3 usually ships 1-5 days
