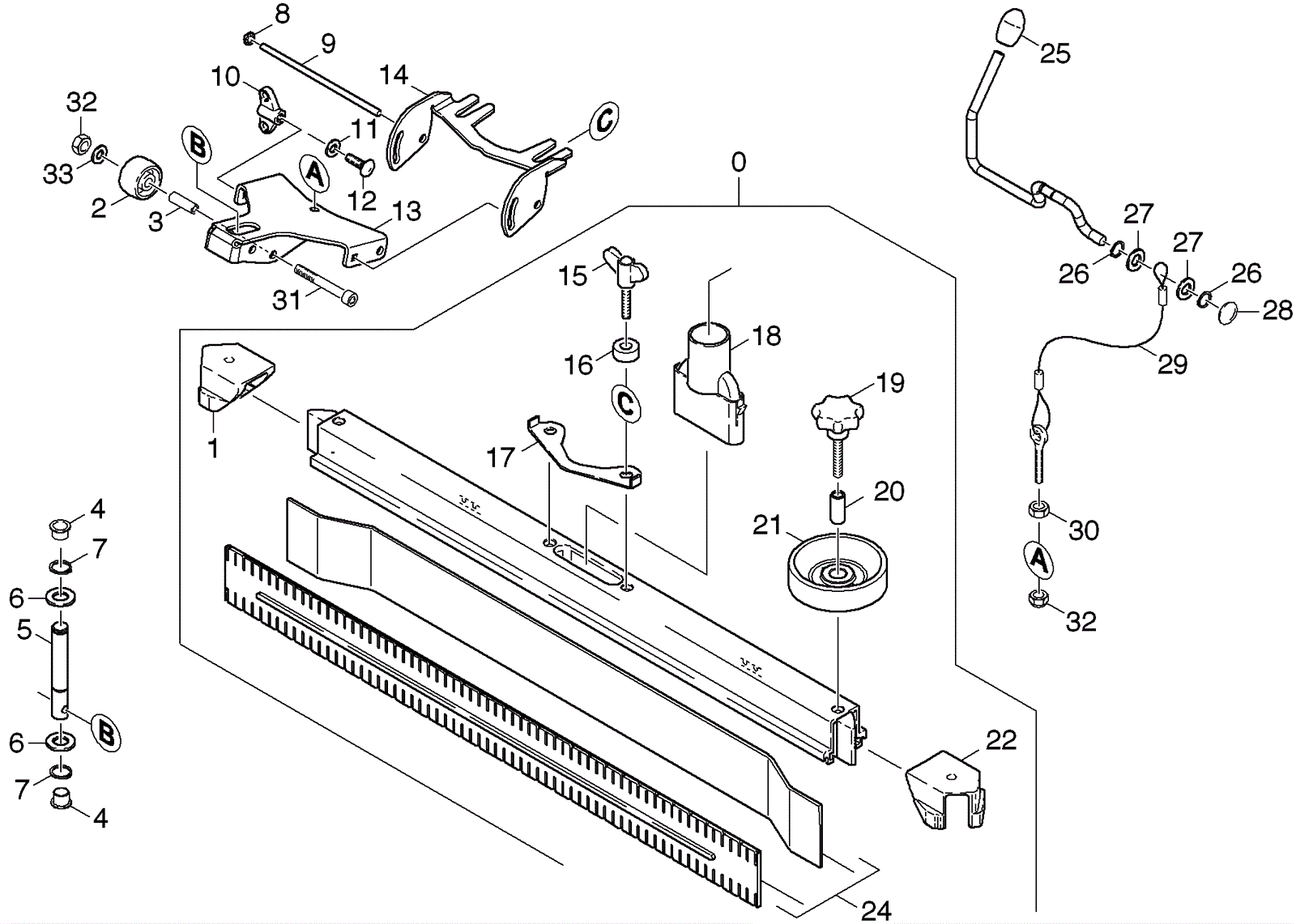

SABER COMPACT 16 Squeegee Bar Assembly

#PartDescriptionPriceReqNotesAvailability
0 273-7121 Straight squeegee bar $828.30 1 (includes 1, 15-21, and 24) usually ships 11-16 days
1 273-3475 Left and right end pieces $93.58 1 usually ships 11-16 days
2 183-0348 Roller $10.87 1 usually ships 15-28 days
3 183-0349 Bushing $10.76 1 usually ships 1-5 days
4 183-4078 Bearing bush $3.89 2 usually ships 15-28 days
5 273-7122 Bolt suction bar $77.68 1 usually ships 11-16 days
6 173-5821 Washer M16 $0.99 2 usually ships 11-16 days
7 173-6334 Lock washer $2.26 1 usually ships 11-16 days
8 173-6305 Lock washer $7.01 2 usually ships 11-16 days
9 183-0342 Bar $8.67 1 ships same day
10 183-0347 Wing nut (Obsolete) $7.55 1 usually ships 15-28 days
11 173-5899 Washer $0.99 1 usually ships 11-16 days
12 183-0343 Screw $1.76 1 usually ships 15-28 days
13 273-7123 Squeegee bar holder $193.03 1 usually ships 1-5 days
14 273-7124 Squeegee bar rocker $98.87 1 usually ships 11-16 days
15 373-4987 Wing screw M8x30 $7.54 2 ships same day
16 273-5932 Sleeved bushing $14.36 2 usually ships 11-16 days
17 183-0308 Plate $18.49 1 usually ships 1-5 days
18 183-0314 Intake tube $9.38 1 usually ships 1-5 days
19 273-7072 Star knob $24.84 2 usually ships 11-16 days
20 273-5924 Sleeve suction bar $9.77 2 usually ships 11-16 days
21 273-5925 Guide wheel $28.37 2 usually ships 11-16 days
24a 273-1120 Squeegee blade set standard $234.22 1 (standard) usually ships 11-16 days
24b 273-1121 Squeegee blade set oil resistant $188.32 1 (optional) usually ships 11-16 days
24c 273-1122 Squeegee blade set oil resistant anti-stripe $386.06 1 (optional) usually ships 11-16 days
25 173-2664 Push button $9.24 1 usually ships 1-5 days
26 183-4100 Washer lock $2.42 2 usually ships 1-5 days
27 273-6016 Washer $2.26 2 usually ships 11-16 days
28 273-7125 Quick fastener $4.30 1 usually ships 1-5 days
29 173-2695 Rope $44.37 1 usually ships 1-5 days
30 183-0199 Hex nut $1.54 1 usually ships 1-5 days
31 273-7126 Screw M8 x 55 cylinder head $8.36 2 usually ships 1-5 days
32 183-0341 Hex nut $1.63 3 usually ships 1-5 days
33 999-0150 Washer #8 medium split lock $0.99 2 ships same day
